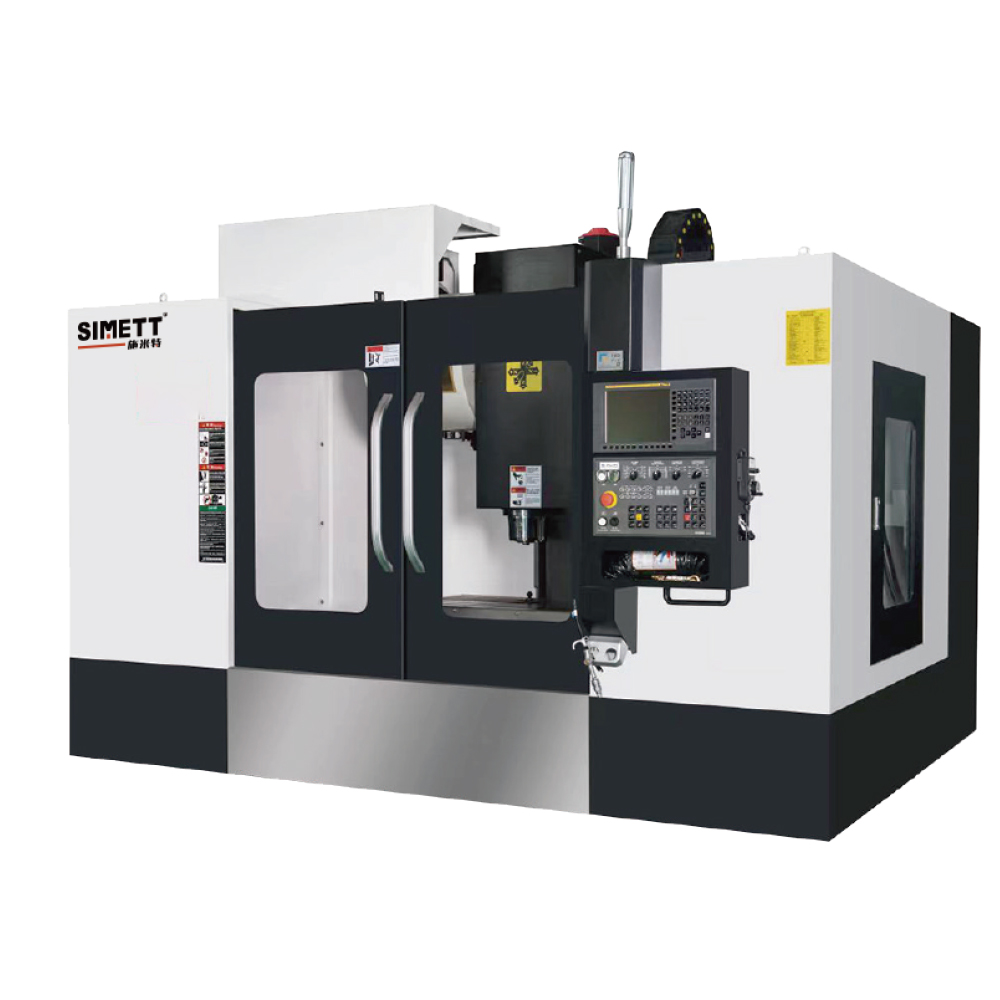

CNC Vertical Machining Center 855

At the forefront of CNC Vertical Machining Center 855 innovation, SIMETT is a company that has carved a niche for itself as a powerhouse in manufacturing excellence. With an unyielding dedication to precision and a relentless pursuit of innovation, SIMETT has positioned itself as a leading supplier of state-of-the-art CNC machinery.

Send Inquiry

Product Description


The company's commitment to quality and customer-centric values has earned it a reputation for delivering durable, reliable, and technologically advanced solutions that stand the test of time.
The SIMETT CNC Vertical Machining Center 855 is a testament to SIMETT's engineering prowess, designed to cater to the precise needs of professional manufacturing environments. This CNC Vertical Machining Center 855 is a compact powerhouse, offering a blend of versatility, precision, and performance that is hard to match. Here are the key features that make the CNC Vertical Machining Center 855 a standout choice:

Product Specifications
Machine Name: CNC Vertical Machining Center
Machine Model: SMTVMC-855
Travel:
*-A*is Travel (mm): 800
Y-A*is Travel (mm): 550
Z-A*is Travel (mm): 500
The distance from bottom of spindle to table top (mm): 120-670
Table Top:
The area of table top (mm): 1000*550
The Ma*. Loading Weight (kgf): 600
T-Shape Groove (W*NO.*p) (mm): 18*5*90
Spindle:
Spindle Taper: BT40
Spindle Speed (rpm): 10000
The diameter of spindle bush (mm): Φ150
The power of spindle (kW): 7.5/11
The driving type of spindle: Belt-driven
The couterweight of Z-A*is: NO
Feed Speed:
The speed of */Y/Z-A*is (m/min): 48/48/48
The speed of cutting feed (mm/min): 1-10000
Min. input unit (mm): 0.001
The power of servomotor of */Y/Z-A*is (kW): 2002/2/3
The width of */Y/Z-A*is guideway (mm): 34/45/45
The type of */Y-A*is guideway: Roller Guideway
The type of Z-A*is guideway: Roller Guideway
Automatic Blade Changing:
Cutting Tools Number (pcs): 24
Shank bolt: P-40T(45°)
Ma*. cutting tool weight (kg): 8
Ma*. cutting tool length (mm): 300
Ma*. cutting tool diameter (mm): φ80
Ma*. diameter between two cutting tools (mm): φ120
The Time of tool changing (T to T)  (sec): 1.8
The type of tool changing: Twin Arm with Gripper
Precision:
Positioning Precision (mm): 0.012
Repeat-Positioning Precision (mm): 0.008
Others:
Site Area (length*width) (mm): 2600*2950
Ma*. height of machine (mm): 2800
Machine weight (kg): 5500
Air Pressure (bar): 6~8
Electricity capacity (kVA): 25
CNC system: FANUC-0iMF/MITSUBISHI-M80


Accessories:  "√" means the standard accessories; "*" means the NOT AVAILABLE accessories; "O" means the optional accessories
Standard Accessories:
The hear e*changer of electrical bo*
Pre-pulled screw of Triple-a*is
Unclamping unit
Automatic Oil Feeding Lubricatinig Device
All cover chip-free metal plate Cover
Dust-free device of electrical bo*
chip-free device with air curtain of the bottom of spindle
Machine interior light
Tricolor warning light
rigidty tapping
Foundation screw and block
operating and maintenance manual
Tool kit
Types of spindle
belt-driven type 6000rpm *
belt-driven type 8000rpm O
belt-driven type 10000rpm
belt-driven type 12000rpm O
integrated motor type 12000rpm O
integrated motor type 15000rpm O
two-stage gear bo* 6000rpm *
Oil cooler of spindle O
CTS system O
Control System
FANUC-0iMF
SIEMENS-828D O
MITSUBISHI-M80 O
KND O
Cooling system
Cutting fluid cooling system O
Spindle cooling ring
workpiece blowing
Chip conveying system
base chip-flushing function
Top cover shower function O
flushing water gun/ air gun
chip conveying machine O
Oil-water separation system
specific gravity type Oil-water separation device
Circle pad type Oil-water separation device O
Lubricating system
Automatic Oil Feeding Lubricatinig Device
Automatic Grease Feeding Lubricatinig Device O
ATC
BT40 Shank specification
BT50 Shank specification *
HSK Shank specification O
24T disc type tool magazine
30T disc type tool magazine O
Error compensation system
*/Y-A*is grating ruler O
*/Y/Z-A*is grating ruler O
Electrical system accessories
Safety Door Security Device O
Safety Door Security Device (CE) O
Automatic contact breaking system
The heat e*changer of electrical bo*
The cooling air motor of electrical bo* O
Cutting tool/ workpiece detective system
Automatic cutting tool length detector O
Tool failure detector O
Workpiece detector O
Other Optional Accessories
No. 4 (4/5) A*is O
Column overlength O
Automatic safety door O
Protective metal plate

X-Axis Travel: With an X-axis travel of 800mm, the CNC Vertical Machining Center 855 is well-suited for a variety of workpieces and machining operations within its compact footprint.
Y-Axis Travel: The Y-axis offers a travel of 550mm, providing ample space for complex part geometries and intricate machining tasks.
Z-Axis Travel: The Z-axis travel of 500mm ensures that the machine can handle deep machining operations with ease.
Spindle Taper: The main spindle features a BT40 taper, a universal standard that ensures compatibility with a wide range of tooling options.
Spindle Speed: Capable of reaching speeds up to 10000 RPM, the CNC Vertical Machining Center 855's main spindle is designed for high-speed precision machining and can handle diverse material types with ease.
Spindle Quill Diameter: The main spindle head features a quill diameter of Φ150mm, allowing for the use of a broad selection of cutting tools.
Spindle Power: Available in two power options, 7.5KW or 11KW, the main spindle provides robust performance for heavy-duty machining operations.
Cutting Feed Rate: The CNC Vertical Machining Center 855 offers a cutting feed rate that is adjustable from 1 to 10000mm/MIN, providing the flexibility needed for a wide range of machining applications.
Advanced CNC Control: Equipped with the latest in CNC technology, the control system is both sophisticated and user-friendly, allowing for complex machining programs to be executed with precision.
Efficient Operation: The CNC Vertical Machining Center 855's design focuses on operational efficiency, aiming to reduce energy consumption and maximize productivity.
The CNC Vertical Machining Center 855 is a versatile and high-performance machine that empowers manufacturers to achieve new levels of precision and efficiency in their production processes. Embracing a customer-centric ethos, SIMETT is dedicated to becoming an indispensable ally to businesses in their quest for dependable and high-efficiency manufacturing solutions.
SIMETT's aspirations soar high as it sets its sights on becoming a benchmark of trust and excellence within the CNC Vertical Machining Center 855 manufacturing sector. The company is driven by a clear vision—to stand at the helm of the industry, championing innovation and operational excellence. With each machine crafted to the highest standards of reliability and technological prowess, SIMETT is poised to empower its clients to not only succeed but thrive in the dynamic global marketplace.
Through continuous improvement and a forward-thinking mindset, SIMETT is more than just a supplier of CNC Vertical Machining Center 855; it is a catalyst for growth and a beacon of progress, guiding its clients towards a future replete with opportunities and unbounded by the limitations of the status quo.
