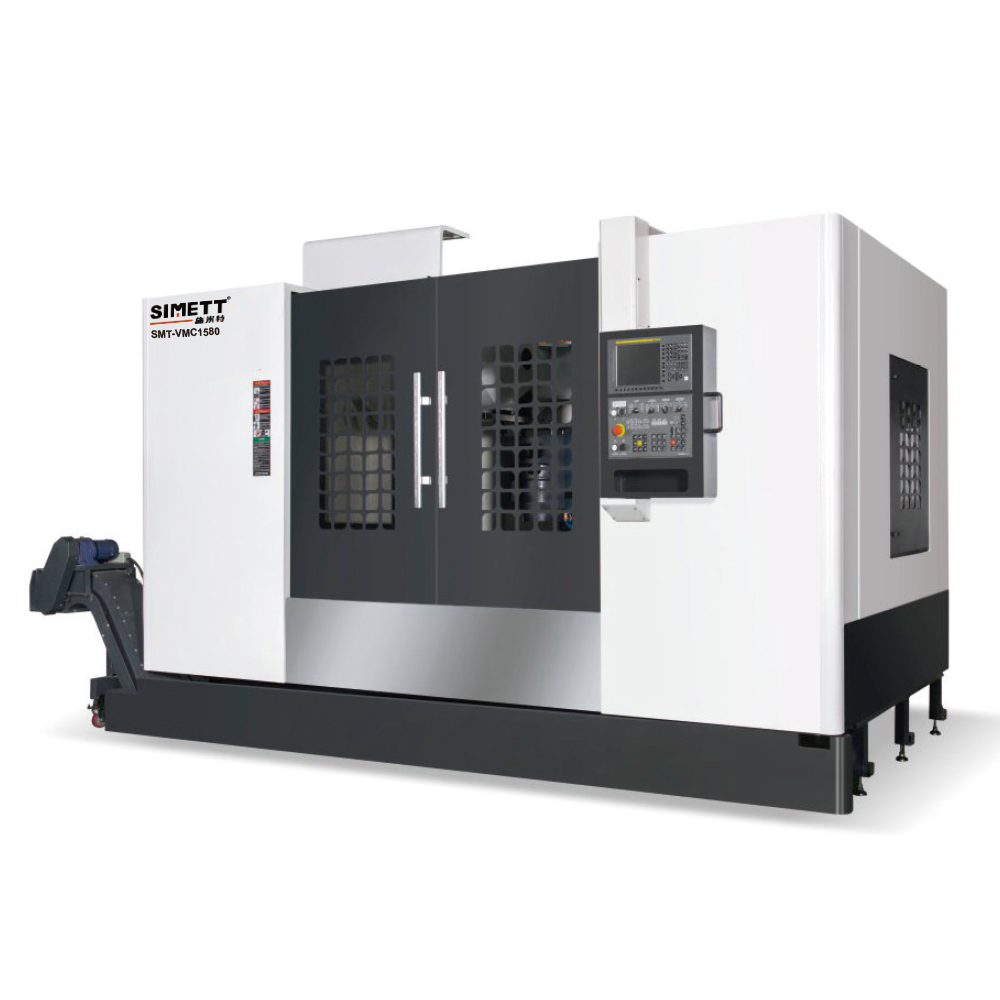

CNC Vertical Machining Center 1380

SIMETT stands as a formidable force in the manufacturing sector, renowned for its unwavering commitment to delivering top-tier CNC Vertical Machining Center 1380. With a legacy built on precision, innovation, and durability, SIMETT has distinguished itself as a supplier of choice for those seeking reliable and high-performance CNC solutions.

Send Inquiry

Product Description

The company's prowess in engineering and customer-centric approach has solidified its position as a major player in the global market.The CNC Vertical Machining Center 1380 is a shining example of SIMETT's dedication to excellence in CNC machinery. ThisCNC Vertical Machining Center 1380 is designed to cater to the needs of professional manufacturing environments with its extensive travel capabilities and robust construction.

Product Specifications
Machine Name: CNC Vertical Machining Center
Machine Model: SMTVMC-1380
Travel:
*-A*is Travel (mm): 1300
Y-A*is Travel (mm): 800
Z-A*is Travel (mm): 735
The distance from bottom of spindle to table top (mm): 185-920
Table Top:
The area of table top (mm): 1500*800
The Ma*. Loading Weight (kgf): 1500
T-Shape Groove (W*NO.*p) (mm): 22*5*145
Spindle:
Spindle Taper: BT50
Spindle Speed (rpm): 6000
The diameter of spindle bush (mm): Φ190
The power of spindle (kW): 15/18.5
The driving type of spindle: Belt-driven
The couterweight of Z-A*is: Nitrogen Balancing Cylinder Block
Feed Speed:
The speed of */Y/Z-A*is (m/min): 20/20/12
The speed of cutting feed (mm/min): 1-8000
Min. input unit (mm): 0.001
The power of servomotor of */Y/Z-A*is (kW): 3/4.5/3
The width of */Y/Z-A*is guideway (mm): 55/45
The type of */Y-A*is guideway: Roller Guideway
The type of Z-A*is guideway: Hard guideway
Automatic Blade Changing:
Cutting Tools Number (pcs): 24
Shank bolt: P-50T(45°)
Ma*. cutting tool weight (kg): 18
Ma*. cutting tool length (mm): 300
Ma*. cutting tool diameter (mm): φ112
Ma*. diameter between two cutting tools (mm): φ200
The Time of tool changing (T to T)  (sec): 5
The type of tool changing: Twin Arm with Gripper
Precision:
Positioning Precision (mm): 0.015
Repeat-Positioning Precision (mm): 0.008
Others:
Site Area (length*width) (mm): 3800*3100
Ma*. height of machine (mm): 3000
Machine weight (kg): 8500
Air Pressure (bar): 6~8
Electricity capacity (kVA): 35
CNC system: FANUC-0iMF/MITSUBISHI-M80


Accessories:  "√" means the standard accessories; "*" means the NOT AVAILABLE accessories; "O" means the optional accessories
Standard Accessories:
The hear e*changer of electrical bo*
Pre-pulled screw of Triple-a*is
Unclamping unit
Automatic Oil Feeding Lubricatinig Device
All cover chip-free metal plate Cover
Dust-free device of electrical bo*
chip-free device with air curtain of the bottom of spindle
Machine interior light
Tricolor warning light
rigidty tapping
Foundation screw and block
operating and maintenance manual
Tool kit
Types of spindle
belt-driven type 6000rpm
belt-driven type 8000rpm O
belt-driven type 10000rpm *
belt-driven type 12000rpm *
integrated motor type 12000rpm *
integrated motor type 15000rpm *
two-stage gear bo* 6000rpm O
Oil cooler of spindle
CTS system O
Control System
FANUC-0iMF
SIEMENS-828D O
MITSUBISHI-M80 O
KND O
Cooling system
Cutting fluid cooling system O
Spindle cooling ring
workpiece blowing
Chip conveying system
base chip-flushing function
Top cover shower function O
flushing water gun/ air gun
chip conveying machine O
Oil-water separation system
specific gravity type Oil-water separation device
Circle pad type Oil-water separation device O
Lubricating system
Automatic Oil Feeding Lubricatinig Device
Automatic Grease Feeding Lubricatinig Device O
ATC
BT40 Shank specification *
BT50 Shank specification
HSK Shank specification O
24T disc type tool magazine
30T disc type tool magazine O
Error compensation system
*/Y-A*is grating ruler O
*/Y/Z-A*is grating ruler O
Electrical system accessories
Safety Door Security Device O
Safety Door Security Device (CE) O
Automatic contact breaking system
The heat e*changer of electrical bo*
The cooling air motor of electrical bo* O
Cutting tool/ workpiece detective system
Automatic cutting tool length detector O
Tool failure detector O
Workpiece detector O
Other Optional Accessories
No. 4 (4/5) A*is O
Column overlength O
Automatic safety door O
Protective metal plate

X-Axis Travel: The X-axis provides a substantial travel of 1300mm, allowing for the handling of large workpieces and a wide array of machining operations.
Y-Axis Travel: The Y-axis travel is an ample 800mm, offering extensive coverage for complex parts and intricate machining tasks.
Z-Axis Travel: With a Z-axis travel of 735mm, the CNC Vertical Machining Center 1380 is capable of deep and detailed machining operations, enhancing its versatility in part production.
Work Table Dimensions: The work table boasts a generous area of 1500mm by 800mm, providing ample space for large-scale workpieces and efficient workflow management.
Z-Axis Guideway: The Hard guideway system ensures precise and smooth movement along the Z-axis, contributing significantly to the machine's overall accuracy and reliability.
Tool Change Mechanism: The CNC Vertical Machining Center 1380's Twin Arm with Gripper system allows for quick and efficient tool changes, minimizing downtime and maximizing productivity.
Spindle Head Quill Diameter: The main spindle features a quill diameter of Φ190mm, accommodating a wide range of tooling and enabling the machine to tackle diverse machining tasks.
Cutting Feed Rate: The cutting feed rate is adjustable from 1 to 8000mm/MIN, providing the flexibility needed for both rough and finish machining operations.
Advanced CNC Control: CNC Vertical Machining Center 1380 equipped with the latest in CNC technology, the control system is both sophisticated and user-friendly, allowing for complex machining programs to be executed with ease.
Durable Construction: The CNC Vertical Machining Center 1380 is built with high-quality materials and components, ensuring a long service life and consistent performance under demanding conditions.
The CNC Vertical Machining Center 1380 is a powerhouse in precision engineering, designed to meet and exceed the expectations of professional machinists and manufacturers worldwide.
SIMETT's aspirations soar high as it sets its sights on becoming a benchmark of trust and excellence within the manufacturing sector. The company is driven by a clear vision—to stand at the helm of the industry, championing innovation and operational excellence. With each CNC Vertical Machining Center 1380 crafted to the highest standards of reliability and technological prowess, SIMETT is poised to empower its clients to not only succeed but thrive in the dynamic global marketplace.
