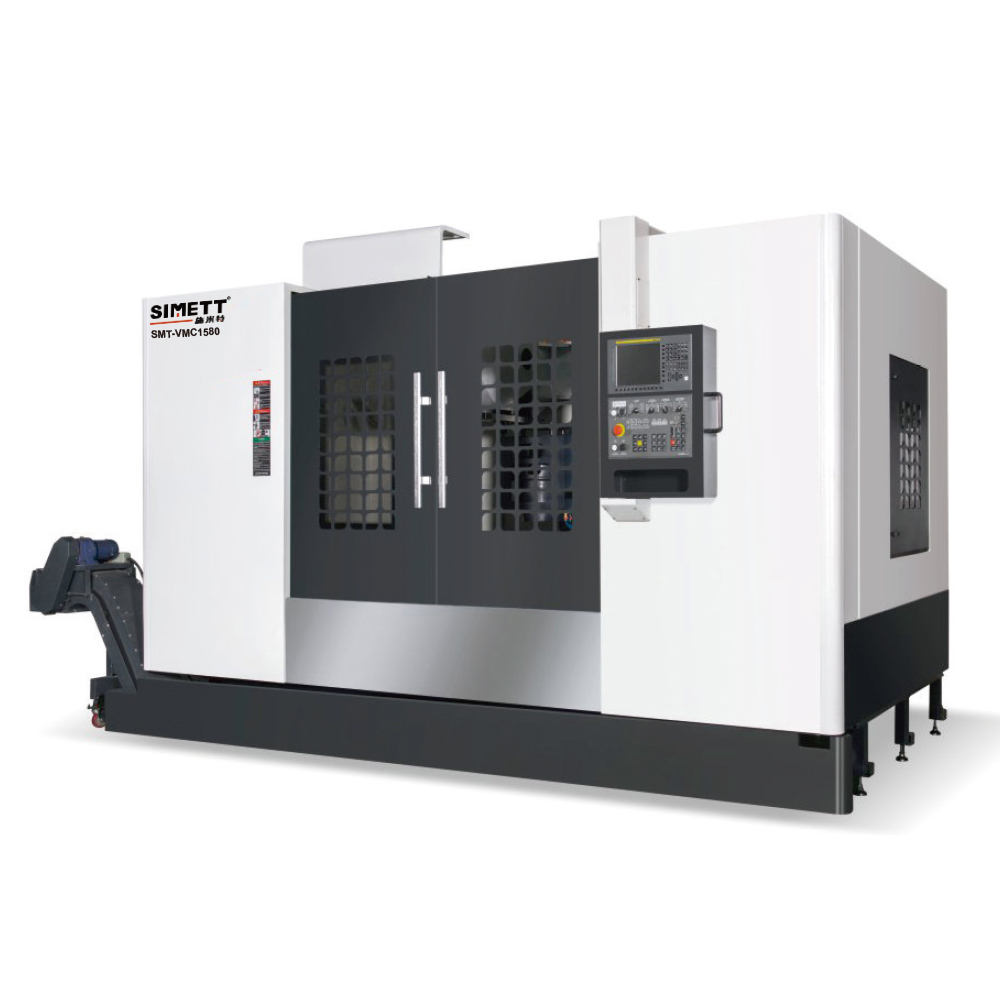

CNC Vertical Machining Center 1580

SIMETT is a powerhouse in the manufacturing industry, recognized for its robust and reliable CNC Vertical Machining Center 1580. With a strong commitment to precision and innovation, SIMETT has become a formidable supplier of advanced CNC machinery. The company's dedication to engineering excellence and customer satisfaction has positioned it as a leading provider of solutions that meet the rigorous demands of modern manufacturing.

Model:SMT-VMC1580

Send Inquiry

Product Description

The CNC Vertical Machining Center 1580 is a testament to SIMETT's expertise in designing and manufacturing high-performance CNC vertical machining centers. This model is tailored for professional applications that require extensive travel and heavy-duty operation.

Product Specifications
Machine Name: CNC Vertical Machining Center
Machine Model: SMTVMC-1580
Travel:
*-A*is Travel (mm): 1500
Y-A*is Travel (mm): 800
Z-A*is Travel (mm): 735
The distance from bottom of spindle to table top (mm): 145-880
Table Top:
The area of table top (mm): 1700*800
The Ma*. Loading Weight (kgf): 1500
T-Shape Groove (W*NO.*p) (mm): 22*5*145
Spindle:
Spindle Taper: BT50
Spindle Speed (rpm): 6000
The diameter of spindle bush (mm): Φ190
The power of spindle (kW): 15/18.5
The driving type of spindle: Belt-driven
The couterweight of Z-A*is: Nitrogen Balancing Cylinder Block
Feed Speed:
The speed of */Y/Z-A*is (m/min): 20/20/12
The speed of cutting feed (mm/min): 1-8000
Min. input unit (mm): 0.001
The power of servomotor of */Y/Z-A*is (kW): 2003/3/3
The width of */Y/Z-A*is guideway (mm): 55/45
The type of */Y-A*is guideway: Roller Guideway
The type of Z-A*is guideway: Hard guideway
Automatic Blade Changing:
Cutting Tools Number (pcs): 24
Shank bolt: P-50T(45°)
Ma*. cutting tool weight (kg): 18
Ma*. cutting tool length (mm): 300
Ma*. cutting tool diameter (mm): φ112
Ma*. diameter between two cutting tools (mm): φ200
The Time of tool changing (T to T)  (sec): 5
The type of tool changing: Twin Arm with Gripper
Precision:
Positioning Precision (mm): 0.015
Repeat-Positioning Precision (mm): 0.008
Others:
Site Area (length*width) (mm): 4300*3100
Ma*. height of machine (mm): 3000
Machine weight (kg): 9500
Air Pressure (bar): 6~8
Electricity capacity (kVA): 35
CNC system: FANUC-0iMF/MITSUBISHI-M80


Accessories:  "√" means the standard accessories; "*" means the NOT AVAILABLE accessories; "O" means the optional accessories
Standard Accessories:
The hear e*changer of electrical bo*
Pre-pulled screw of Triple-a*is
Unclamping unit
Automatic Oil Feeding Lubricatinig Device
All cover chip-free metal plate Cover
Dust-free device of electrical bo*
chip-free device with air curtain of the bottom of spindle
Machine interior light
Tricolor warning light
rigidty tapping
Foundation screw and block
operating and maintenance manual
Tool kit
Types of spindle
belt-driven type 6000rpm
belt-driven type 8000rpm O
belt-driven type 10000rpm *
belt-driven type 12000rpm *
integrated motor type 12000rpm *
integrated motor type 15000rpm *
two-stage gear bo* 6000rpm O
Oil cooler of spindle
CTS system O
Control System
FANUC-0iMF
SIEMENS-828D O
MITSUBISHI-M80 O
KND O
Cooling system
Cutting fluid cooling system O
Spindle cooling ring
workpiece blowing
Chip conveying system
base chip-flushing function
Top cover shower function O
flushing water gun/ air gun
chip conveying machine O
Oil-water separation system
specific gravity type Oil-water separation device
Circle pad type Oil-water separation device O
Lubricating system
Automatic Oil Feeding Lubricatinig Device
Automatic Grease Feeding Lubricatinig Device O
ATC
BT40 Shank specification *
BT50 Shank specification
HSK Shank specification O
24T disc type tool magazine
30T disc type tool magazine O
Error compensation system
*/Y-A*is grating ruler O
*/Y/Z-A*is grating ruler O
Electrical system accessories
Safety Door Security Device O
Safety Door Security Device (CE) O
Automatic contact breaking system
The heat e*changer of electrical bo*
The cooling air motor of electrical bo* O
Cutting tool/ workpiece detective system
Automatic cutting tool length detector O
Tool failure detector O
Workpiece detector O
Other Optional Accessories
No. 4 (4/5) A*is O
Column overlength O
Automatic safety door O
Protective metal plate

X-Axis Travel: The X-axis offers a generous travel of 1500mm, accommodating large workpieces and facilitating a wide range of machining tasks.
Y-Axis Travel: With a Y-axis travel of 800mm, the CNC Vertical Machining Center 1580 provides ample space for intricate operations and complex part geometries.
Z-Axis Travel: The Z-axis travel of 735mm allows for deep machining operations and increased versatility in part processing.
Main Spindle Speed: The main spindle is capable of speeds up to 6000 RPM, making it suitable for a variety of materials and machining applications.
Z-Axis Guideway: The Hard guideway system on the Z-axis ensures precise and smooth movement, contributing to the overall accuracy and reliability of the machine.
Z-Axis Counterweight System: The Nitrogen Balancing Cylinder Block system provides enhanced stability and vibration reduction, leading to superior surface finishes and precision.
Spindle Head Quill Diameter: The CNC Vertical Machining Center 1580's main spindle head features a quill diameter of Φ190mm, which is ideal for using a wide range of tooling options.
Cutting Feed Rate: The CNC Vertical Machining Center 1580 offers a cutting feed rate that is adjustable from 1 to 8000mm/MIN, allowing for both rough and finish cuts with exceptional control.
Advanced CNC Control: The machine is equipped with the latest in CNC technology, providing automated and precise control over complex machining operations.
Durable Construction: Built with high-quality materials and components, the CNC Vertical Machining Center 1580 is designed for longevity and consistent performance.
Efficient Operation: The CNC Vertical Machining Center 1580's design focuses on operational efficiency, aiming to reduce energy consumption and maximize productivity.
Global Reach: SIMETT's extensive network ensures that customers worldwide have access to this advanced machining center and can rely on strong after-sales support.
The CNC Vertical Machining Center 1580 is not just a machine; it's a powerhouse that empowers manufacturers to push the boundaries of what's possible in precision machining.As SIMETT moves forward, the company is dedicated to maintaining its reputation as a strong and reliable supplier of industrial machinery. It aims to continue providing high-quality, durable, and technologically advanced CNC Vertical Machining Center 1580 that are built to last. With a customer-centric approach, SIMETT is committed to being a trusted partner for businesses looking for premium machinery solutions. The company's vision is to lead the industry in innovation and performance, delivering machines that are not only reliable but also at the forefront of technological advancement, ensuring the success and growth of its clients in a competitive global market.
