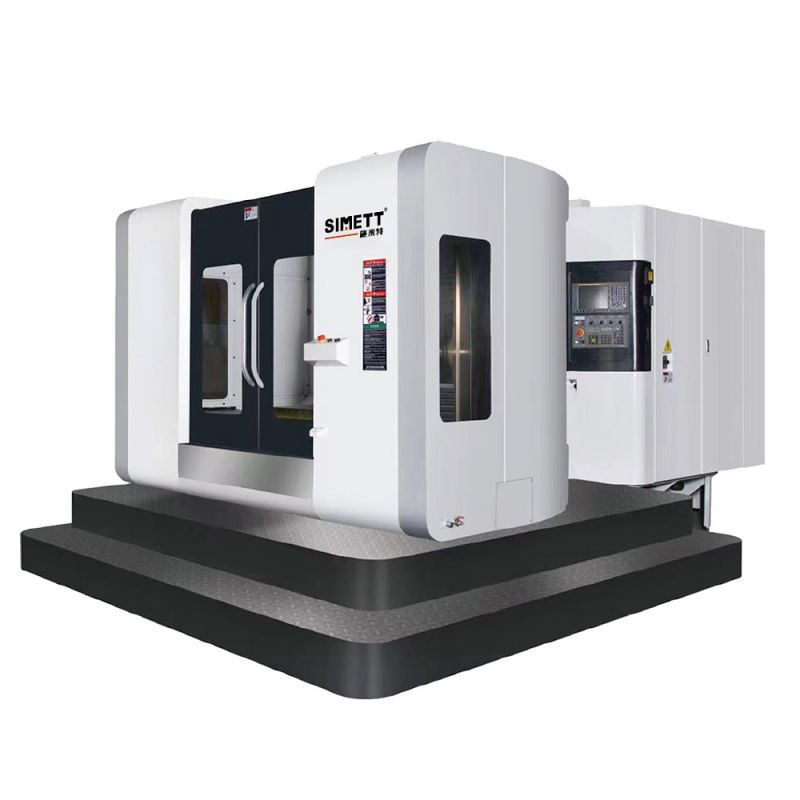

CNC Horizontal Machining Center 630

SIMETT is a paragon of precision engineering, leading the vanguard in the evolution of CNC Horizontal Machining Center 630. With an unwavering commitment to innovation and a legacy of precision, SIMETT has become a benchmark for high-quality, durable, and technologically advanced CNC solutions

Send Inquiry

Product Description

The company's customer-centric philosophy ensures that every product is designed to exceed the highest industry standards, setting the stage for manufacturing excellence.The CNC Horizontal Machining Center 630 is a testament to SIMETT's engineering prowess, designed to meet the stringent requirements of modern manufacturing with a blend of power, precision, and versatility.

Product Specifications
Machine Name:	CNC Horizontal Machining Center
Machine Model:	SMTHMC-630
Travel:
X-Axis Travel (mm):	1050
Y-Axis Travel (mm):	750
Z-Axis Travel (mm):	900
The distance from the center of spindle to the table top (mm):	0-750
The distance from bottom of spindle to the center of table top (mm):	130-1030
Table Top:
The area of table top (mm):	630*630
The Max. Loading Weight (kgf):	950
T-Shape Groove (WxNO.xP) (mm):	NO
Table Top Thread Hole:	24-M16
The Min. graduation of table top (°):	1
Spindle:
Spindle Taper:	BT50
Spindle Speed (rpm):	6000
The diameter of spindle bush (mm):	Φ190
The power of spindle (kW):	15/22
The driving type of spindle:	Belt-driven
The couterweight of Y-Axis:	Nitrogen Balancing Cylinder Block
Feed Speed:
The speed of X/Y/Z-Axis (m/min):	24/24/24
The speed of cutting feed (mm/min):	1~6000
Min. input unit (mm):	0.001
The power of servomotor of X/Y/Z-Axis (kW):	3/3/3
The width of X/Y/Z-Axis guideway (mm):	45/45/55
The type of X/Z-Axis guideway:	Roller Guideway
The type of Y-Axis guideway:	Roller Guideway
Automatic Blade Changing:
Cutting Tools Number (pcs):	24
Shank bolt:	P-50T(45°)
Max. cutting tool weight (kg):	18
Max. cutting tool length (mm):	350
Max. cutting tool diameter (mm):	Φ112
Max. diameter between two cutting tools (mm):	Φ200
The Time of tool changing (T to T) (sec):	5
The type of tool changing:	Twin Arm with Gripper
APC:
number of plate (pcs):	2
The type of exchanging:	rotation type
Max. revolving diameter of workpiece (mm):	φ820
Precision:
Positioning Precision (mm):	0.015
Repeat-Positioning Precision (mm):	0.01
Others:
Site Area (length*width) (mm):	6000*3000
Max. height of machine (mm):	2900
Machine weight (kg):	10000
Air Pressure (bar):	6~8
Electricity capacity (kVA):	50
CNC system:	FANUC-0iMF/MITSUBISHI-M80
Accessories: √；X；O; "√" means the standard accessories; "X" means the NOT AVAILABLE accessories; "O" means the optional accessories
Standard Accessories:
The hear exchanger of electrical box	√
Pre-pulled screw of Triple-axis	√
Unclamping unit	√
Automatic Feeding Lubricatinig Device	√
All cover chip-free metal plate Cover	√
Dust-free device of electrical box	√
chip-free device with air curtain of the bottom of spindle	√
Machine interior light	√
Tricolor warning light	√
rigidty tapping	√
Foundation screw and block	√
operating and maintenance manual	√
Tool kit	√
Types of spindle
belt-driven type 6000rpm	√
belt-driven type 8000rpm	O
two-stage gear box 6000rpm	O
Oil cooler of spindle	√
CTS system	O
Control System
FANUC-0iMF	√
SIEMENS-828D	O
MITSUBISHI-M80	O
KND	O
Cooling system
Cutting fluid cooling system	O
Spindle cooling ring	√
workpiece blowing	√
Chip conveying system
base chip-flushing function	√
Top cover shower function	O
flushing water gun/ air gun	√
chip conveying machine	O
Lubricating system
Automatic Oil Feeding Lubricatinig Device	√
Automatic Grease Feeding Lubricatinig Device	O
ATC
BT50 Shank specification	√
HSK Shank specification	O
24T disc type tool magazine	√
30T disc type tool magazine	O
Error compensation system
X/Y-Axis grating ruler	O
X/Y/Z-Axis grating ruler	O
Electrical system accessories
Safety Door Security Device	O
Safety Door Security Device (CE)	O
Automatic contact breaking system	√
The heat exchanger of electrical box	√
The cooling air motor of electrical box	O
Cutting tool/ workpiece detective system
Automatic cutting tool length detector	O
Tool failure detector	O
Workpiece detector	O
Other Optional Accessories
The automatic door of apc side	O

Table Top Thread Hole: The CNC Horizontal Machining Center 630's work table is equipped with 24-M16 thread hole, providing a secure and adaptable platform for a wide range of workpiece fixtures and attachments.
Spindle Quill Diameter: The main spindle features a generous quill diameter of Φ190mm, allowing for the use of a broad spectrum of tooling options to tackle various machining tasks.
Spindle Power Options: The main spindle is available in two powerful variants, 15KW or 22KW, ensuring that the CNC Horizontal Machining Center 630 can handle the most demanding machining operations with ease.
Rapid Traverse Rates: The axes are designed for swift movement, with rapid traverse rates of 24m/min for the X, Y, and Z axes, enhancing productivity with quick repositioning.
Maximum Tool Weight: The CNC Horizontal Machining Center 630 can accommodate a substantial maximum tool weight of 18kg, allowing for the use of heavier, more robust tools for a wider range of applications.
Automatic Tool Changer (APC): The CNC Horizontal Machining Center 630 is equipped with a rotation-type APC system, ensuring efficient and reliable tool changes, further streamlining the machining process.
Maximum Workpiece Swivel Diameter: The machine can handle workpieces with a maximum swivel diameter of φ820mm, expanding the range of parts that can be machined efficiently.
The CNC Horizontal Machining Center 630 is a powerful, precise, and versatile machine that caters to the needs of professional operators who require a high level of control and precision in their machining processes. As SIMETT continues to chart its course for the future, the company is focused on a strategic path that encompasses continuous innovation, expanding product lines, and deepening customer relationships. With a clear vision for global expansion and a commitment to sustainability, SIMETT is poised to bring advanced manufacturing solutions to a broader market. The company's planning is also aimed at providing tailored solutions that meet the specific needs of its clients, ensuring that every CNC Horizontal Machining Center 630 produced is a testament to SIMETT's dedication to excellence. Through this forward-thinking approach, SIMETT is not just preparing for the future of manufacturing but is actively forging it, with a clear mission to empower its clients to achieve new milestones of operational efficiency and market competitiveness.
