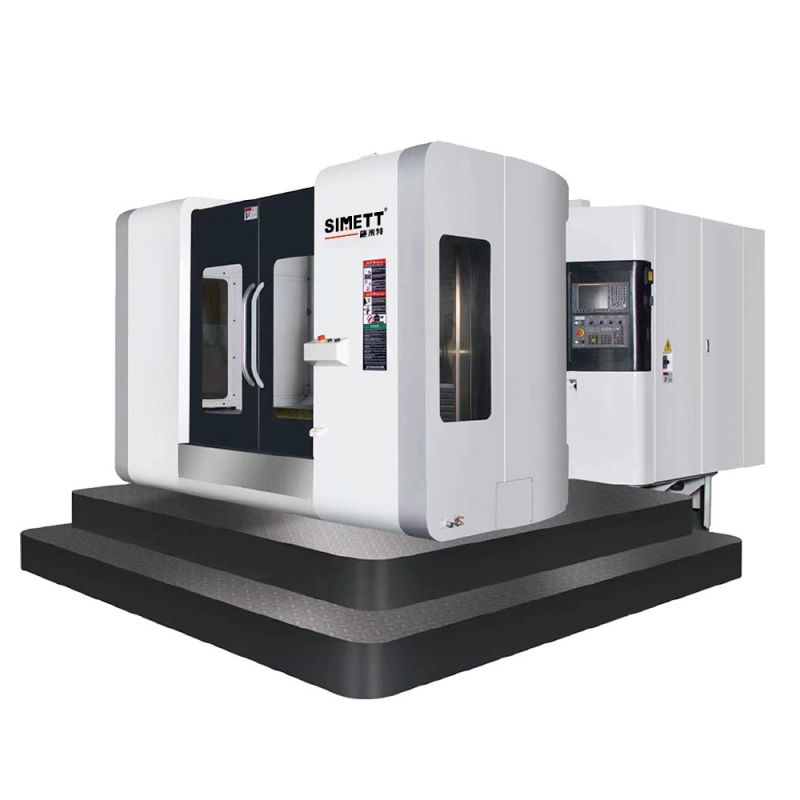

CNC Horizontal Machining Center 1290

SIMETT is a beacon of innovation in the CNC Horizontal Machining Center 1290 manufacturing industry, renowned for its dedication to precision engineering and a relentless drive for technological advancement. As a leading provider of high-quality CNC Horizontal Machining Center 1290, SIMETT has distinguished itself by delivering durable, reliable, and cutting-edge CNC solutions. With a customer-centric approach, SIMETT continues to set new standards for excellence and reliability in manufacturing.

Model:SMTHMC-1290

Send Inquiry

Product Description

The CNC Horizontal Machining Center 1290 is a testament to SIMETT's commitment to engineering excellence, designed to cater to the precise needs of professional manufacturing environments. This horizontal machining center offers a blend of power, precision, and adaptability that is unmatched.

Product Specifications
Machine Name: CNC Horizontal Machining Center
Machine Model: SMTHMC-1290
Travel:
X-Axis Travel (mm): 1200
Y-Axis Travel (mm): 900
Z-Axis Travel (mm): 700
The distance from the center of spindle to the table top (mm): 75-975
The distance from bottom of spindle to the center of table top (mm): 165-865
Table Top:
The area of table top (mm): 1360*700
The Max. Loading Weight (kgf): 1000
T-Shape Groove (WxNO.xP) (mm): 18*5*122
Table Top Thread Hole: NO
The Min. graduation of table top (°): 1
Spindle:
Spindle Taper: BT50
Spindle Speed (rpm): 6000
The diameter of spindle bush (mm): Φ190
The power of spindle (kW): 11/15
The driving type of spindle: Belt-driven
The couterweight of Y-Axis: Nitrogen Balancing Cylinder Block
Feed Speed:
The speed of X/Y/Z-Axis (m/min): 20/12/20
The speed of cutting feed (mm/min): 1-6000
Min. input unit (mm): 0.001
The power of servomotor of X/Y/Z-Axis (kW): 3/3/3
The width of X/Y/Z-Axis guideway (mm): 55/45
The type of X/Z-Axis guideway: Roller Guideway
The type of Y-Axis guideway: Hard guideway
Automatic Blade Changing:
Cutting Tools Number (pcs): 24
Shank bolt: P-50T(45°)
Max. cutting tool weight (kg): 18
Max. cutting tool length (mm): 350
Max. cutting tool diameter (mm): Φ112
Max. diameter between two cutting tools (mm): Φ200
The Time of tool changing (T to T)  (sec): 5
The type of tool changing: Twin Arm with Gripper
APC:
number of plate (pcs): 1
The type of exchanging: NO
Max. revolving diameter of workpiece (mm): NO
Precision:
Positioning Precision (mm): 0.015
Repeat-Positioning Precision (mm): 0.01
Others:
Site Area (length*width) (mm): 4000*3400
Max. height of machine (mm): 3000
Machine weight (kg): 8000
Air Pressure (bar): 6~8
Electricity capacity (kVA): 40
CNC system: FANUC-0iMF/MITSUBISHI-M80
Accessories: √;X;O; "√" means the standard accessories; "X" means the NOT AVAILABLE accessories; "O" means the optional accessories
Standard Accessories:
The hear exchanger of electrical box
Pre-pulled screw of Triple-axis
Unclamping unit
Automatic Feeding Lubricatinig Device
All cover chip-free metal plate Cover
Dust-free device of electrical box
chip-free device with air curtain of the bottom of spindle
Machine interior light
Tricolor warning light
rigidty tapping
Foundation screw and block
operating and maintenance manual
Tool kit
Types of spindle
belt-driven type 6000rpm
belt-driven type 8000rpm O
two-stage gear box 6000rpm O
Oil cooler of spindle
CTS system O
Control System
FANUC-0iMF
SIEMENS-828D O
MITSUBISHI-M80 O
KND O
Cooling system
Cutting fluid cooling system O
Spindle cooling ring
workpiece blowing
Chip conveying system
base chip-flushing function
Top cover shower function O
flushing water gun/ air gun
chip conveying machine O
Lubricating system
Automatic Oil Feeding Lubricatinig Device
Automatic Grease Feeding Lubricatinig Device O
ATC
BT50 Shank specification
HSK Shank specification O
24T disc type tool magazine
30T disc type tool magazine O
Error compensation system
X/Y-Axis grating ruler O
X/Y/Z-Axis grating ruler O
Electrical system accessories
Safety Door Security Device O
Safety Door Security Device (CE) O
Automatic contact breaking system
The heat exchanger of electrical box
The cooling air motor of electrical box O
Cutting tool/ workpiece detective system
Automatic cutting tool length detector O
Tool failure detector O
Workpiece detector O
Other Optional Accessories
The automatic door of apc side O

Spindle Center to Table Distance: The CNC Horizontal Machining Center 1290 offers a generous range of 75-975mm from the spindle center to the work table, allowing for a wide variety of workpiece sizes and machining applications. T-Slot Specifications: The work table is equipped with T-slots measuring 18mm wide, with 5 slots and a pitch of 122mm, providing a versatile and secure platform for workpiece fixtures.
Spindle Taper: The BT50 spindle taper ensures compatibility with a broad range of tooling options and offers a secure tool holding mechanism for enhanced precision.
Spindle Drive System: The main spindle utilizes a belt drive system, known for its efficiency, reliability, and ability to transmit high power smoothly.
Spindle Power: The machine offers two powerful options, 11KW or 15KW, ensuring that the CNC Horizontal Machining Center 1290 can handle heavy-duty machining operations with ease.
Y-Axis Counterweight System: The Nitrogen Balancing Cylinder Block on the Y-axis enhances stability and reduces vibration, leading to superior surface finishes and precision.
Rapid Traverse Rates: The axes are designed for rapid movement, with speeds of 20m/min for the X and Z axes, and 12m/min for the Y axis, optimizing productivity with swift repositioning.
Cutting Feed Rate: The cutting feed rate is adjustable from 1 to 6000mm/MIN, offering the flexibility to perform a wide range of machining operations from roughing to finishing.
Durable Construction: Built with top-quality materials and components, the CNC Horizontal Machining Center 1290 is designed for longevity and consistent performance in demanding environments.
Efficient Operation: The machine's design focuses on operational efficiency, aiming to reduce energy consumption and maximize productivity.
Global Accessibility: SIMETT's extensive network ensures that customers worldwide have access to this advanced machining center and can rely on strong after-sales support.
The CNC Horizontal Machining Center 1290 is a powerful, precise, and versatile machine that caters to the needs of professional operators who require a high level of control and precision in their machining processes.As SIMETT looks to the future, the company is committed to a path of continuous innovation and product development, ensuring its machinery remains at the technological forefront of the manufacturing industry. With a steadfast focus on customer success, SIMETT aims to expand its global reach, making its advanced solutions accessible to manufacturers worldwide. The company's strategic planning is also heavily invested in sustainability, ensuring that its operations and CNC Horizontal Machining Center 1290 offerings align with environmentally conscious practices. Through this holistic approach, SIMETT is not just anticipating the future of manufacturing but actively shaping it, with a clear vision to empower its clients to achieve new heights of operational excellence and competitive advantage in the global market.
