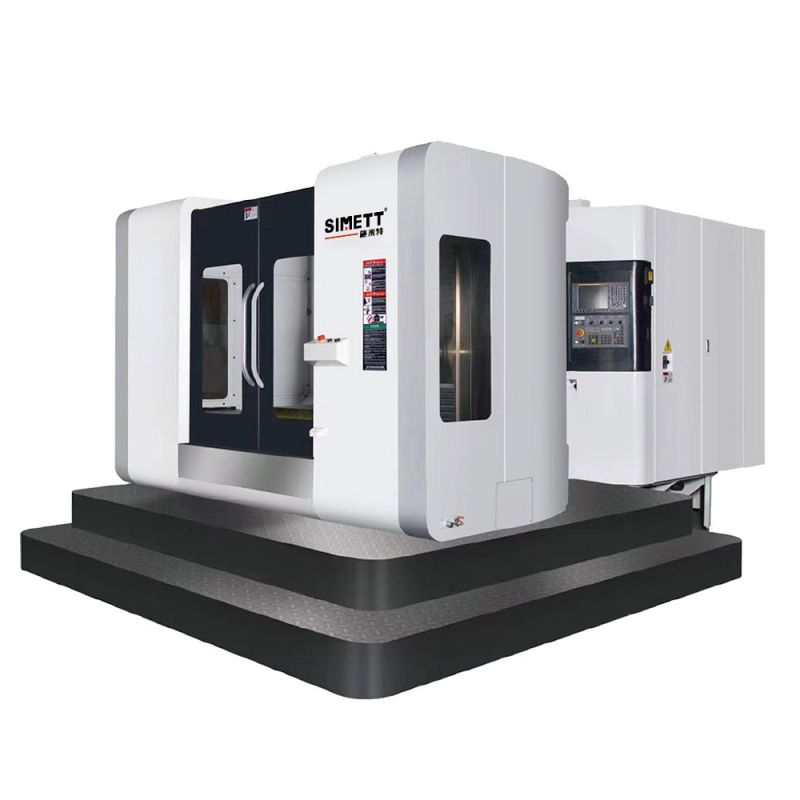

CNC Horizontal Machining Center 500

SIMETT stands as a beacon of innovation in the field of CNC Horizontal Machining Center 500, with a steadfast commitment to precision and a forward-looking approach to engineering.

Send Inquiry

Product Description


As a leading innovator in CNC technology, SIMETT has garnered a reputation for delivering CNC Horizontal Machining Center 500 that is not just durable and reliable, but also at the cutting edge of technological advancement. With a customer-first philosophy, SIMETT continues to push the boundaries of what's possible in manufacturing excellence.The CNC Horizontal Machining Center 500 is a testament to SIMETT's dedication to high-precision manufacturing solutions. This horizontal machining center is designed to provide professional manufacturers with a compact yet powerful tool capable of handling a wide array of tasks with ease.

Product Specifications
Machine Name: CNC Horizontal Machining Center
Machine Model: SMTHMC-500B
Travel:
X-Axis Travel (mm): 700
Y-Axis Travel (mm): 600
Z-Axis Travel (mm): 580
The distance from the center of spindle to the table top (mm): 90-690
The distance from bottom of spindle to the center of table top (mm): 120-700
Table Top:
The area of table top (mm): 500*500
The Max. Loading Weight (kgf): 400
T-Shape Groove (WxNO.xP) (mm): 18*5*8
Table Top Thread Hole: NO
The Min. graduation of table top (°): 1
Spindle:
Spindle Taper: BT50
Spindle Speed (rpm): 6000
The diameter of spindle bush (mm): Φ150
The power of spindle (kW): 11/15
The driving type of spindle: Belt-driven
The couterweight of Y-Axis: Nitrogen Balancing Cylinder Block
Feed Speed:
The speed of X/Y/Z-Axis (m/min): 24/24/24
The speed of cutting feed (mm/min): 1-6000
Min. input unit (mm): 0.001
The power of servomotor of X/Y/Z-Axis (kW): 3/3/3
The width of X/Y/Z-Axis guideway (mm): 35/45/45
The type of X/Z-Axis guideway: Roller Guideway
The type of Y-Axis guideway: Roller Guideway
Automatic Blade Changing:
Cutting Tools Number (pcs): 24
Shank bolt: P-40T(45°)
Max. cutting tool weight (kg): 8
Max. cutting tool length (mm): 300
Max. cutting tool diameter (mm): Φ80
Max. diameter between two cutting tools (mm): Φ120
The Time of tool changing (T to T)  (sec): 1.8
The type of tool changing: Twin Arm with Gripper
APC:
number of plate (pcs): 1
The type of exchanging: NO
Max. revolving diameter of workpiece (mm): NO
Precision:
Positioning Precision (mm): 0.015
Repeat-Positioning Precision (mm): 0.01
Others:
Site Area (length*width) (mm): 2200*2850
Max. height of machine (mm): 2800
Machine weight (kg): 6000
Air Pressure (bar): 6~8
Electricity capacity (kVA): 40
CNC system: FANUC-0iMF/MITSUBISHI-M80
Accessories: √;X;O; "√" means the standard accessories; "X" means the NOT AVAILABLE accessories; "O" means the optional accessories
Standard Accessories:
The hear exchanger of electrical box
Pre-pulled screw of Triple-axis
Unclamping unit
Automatic Feeding Lubricatinig Device
All cover chip-free metal plate Cover
Dust-free device of electrical box
chip-free device with air curtain of the bottom of spindle
Machine interior light
Tricolor warning light
rigidty tapping
Foundation screw and block
operating and maintenance manual
Tool kit
Types of spindle
belt-driven type 6000rpm
belt-driven type 8000rpm O
two-stage gear box 6000rpm O
Oil cooler of spindle
CTS system O
Control System
FANUC-0iMF
SIEMENS-828D O
MITSUBISHI-M80 O
KND O
Cooling system
Cutting fluid cooling system O
Spindle cooling ring
workpiece blowing
Chip conveying system
base chip-flushing function
Top cover shower function O
flushing water gun/ air gun
chip conveying machine O
Lubricating system
Automatic Oil Feeding Lubricatinig Device
Automatic Grease Feeding Lubricatinig Device O
ATC
BT50 Shank specification
HSK Shank specification O
24T disc type tool magazine
30T disc type tool magazine O
Error compensation system
X/Y-Axis grating ruler O
X/Y/Z-Axis grating ruler O
Electrical system accessories
Safety Door Security Device O
Safety Door Security Device (CE) O
Automatic contact breaking system
The heat exchanger of electrical box
The cooling air motor of electrical box O
Cutting tool/ workpiece detective system
Automatic cutting tool length detector O
Tool failure detector O
Workpiece detector O
Other Optional Accessories
The automatic door of apc side O

Travel Dimensions: The CNC Horizontal Machining Center 500 offers a generous X-axis travel of 700mm, a Y-axis travel of 600mm, and a Z-axis travel of 580mm, allowing for a broad scope of workpiece sizes and machining operations.
Work Table Size: The CNC Horizontal Machining Center 500's work table measures 500mm by 500mm, providing a solid foundation for a variety of workpieces and ensuring stability during operation.
Spindle Quill Diameter: The main spindle head features a quill diameter of Φ150mm, accommodating a wide range of tooling options for diverse machining tasks.
Rapid Traverse Rates: The axes are designed for swift movement, with rapid traverse rates of 24m/min for the X, Y, and Z axes, enhancing productivity with quick repositioning.
Cutting Feed Rate: The CNC Horizontal Machining Center 500 provides a cutting feed rate adjustable from 1 to 6000mm/MIN, offering the adaptability needed for various machining processes from roughing to finishing.
Y-Axis Guideway: The Y-axis is equipped with a Roller Guideway, ensuring smooth and precise movement along the axis, which is critical for maintaining machining accuracy.
Maximum Tool Diameter: The CNC Horizontal Machining Center 500 supports a maximum tool diameter of Φ80mm, allowing for the use of larger tools and a wider range of machining capabilities.
Durable Construction: Built with top-quality materials and components, the CNC Horizontal Machining Center 500 is designed for longevity and consistent performance in demanding environments.
Efficient Operation: The machine's design focuses on operational efficiency, aiming to reduce energy consumption and maximize productivity.
The CNC Horizontal Machining Center 500 is a versatile and high-performance machine that caters to the needs of professional operators who require a high level of control and precision in their machining processes.As SIMETT progresses, the company is focused on a strategic path that encompasses continuous innovation, expanding product lines, and deepening customer relationships. With a clear vision for global expansion and a commitment to sustainability, SIMETT is poised to bring advanced manufacturing solutions to a broader market. The company's planning is also aimed at providing tailored solutions that meet the specific needs of its clients, ensuring that every CNC Horizontal Machining Center 500 produced is a testament to SIMETT's dedication to excellence. Through this forward-thinking approach, SIMETT is not just preparing for the future of manufacturing but is actively forging it, with a clear mission to empower its clients to achieve new milestones of operational efficiency and market competitiveness.
