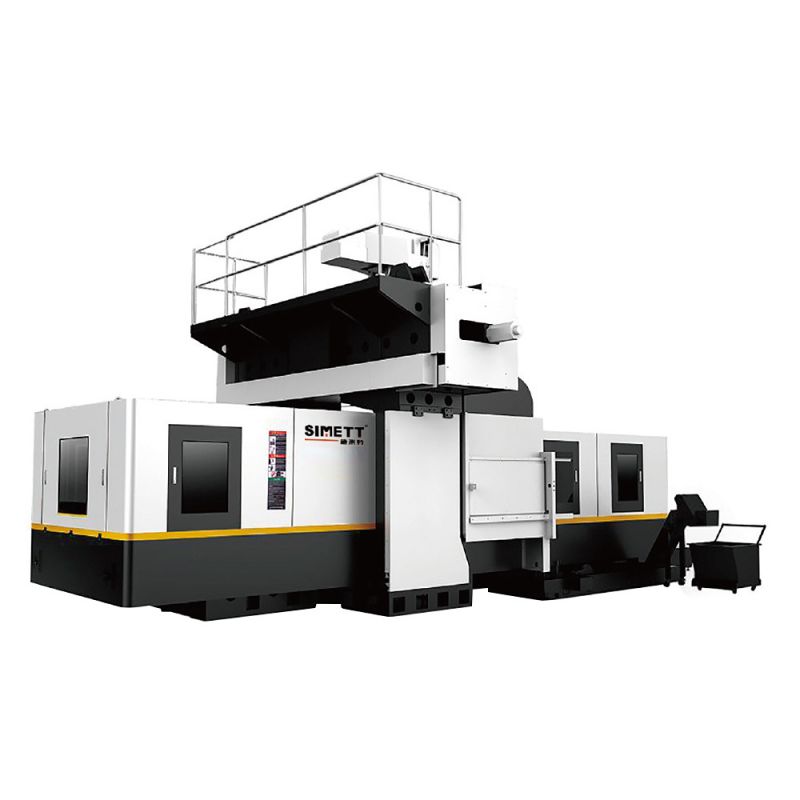

CNC Gantry Machining Center 3018
SIMETT is a renowned name in the manufacturing industry, celebrated for its unwavering commitment to precision, innovation, and the development of advanced CNC Gantry Machining Center 3018. With a legacy of delivering durable, reliable, and high-performance solutions, SIMETT has set the standard for excellence in industrial manufacturing.
Model:SMTGMC-3018
Send Inquiry
Product Description
The company's customer-centric philosophy ensures that every machine is designed to surpass the highest industry standards.The CNC Gantry Machining Center 3018 is a flagship model that embodies SIMETT's dedication to engineering excellence, designed to cater to the needs of professional manufacturers for large-scale and heavy-duty machining operations.
Extended Travel Dimensions: With an X-axis travel of 3000mm, a Y-axis travel of 1800mm, and a Z-axis travel of 1000mm, the CNC Gantry Machining Center 3018 offers a vast working area suitable for large and complex workpieces.
Spindle Taper: The main spindle features a BT50 taper, a universal standard that ensures compatibility with a wide range of high-precision tools and provides secure tool holding for enhanced machining accuracy.
Power Capacity: The CNC Gantry Machining Center 3018 boasts a substantial power capacity of 45KVA, ensuring that the machine can handle demanding machining operations with ease.
Z-Axis Counterweight System: The use of a Nitrogen Balancing Cylinder Block on the Z-axis enhances stability and reduces vibration, leading to superior surface finishes and precision.
Maximum Tool Diameter: The machine supports a maximum tool diameter of Φ112MM, allowing for the use of larger tools and a wider range of machining capabilities.
Servo Motor Torque: The CNC Gantry Machining Center 3018 is equipped with high-torque servo motors rated at 38/30/30N.m for the X/Y/Z axes, respectively, providing powerful and precise control over the machining process.
Compatibility: The BT50 taper is a widely accepted standard in the industry, ensuring compatibility with a broad range of tooling options, including high-precision tools.
Secure Tool Holding: The BT50 design provides a secure and rigid tool holding mechanism, which is critical for maintaining accuracy and repeatability in machining operations.
High-Precision Machining: The BT50 taper allows for high-precision machining by minimizing runout and ensuring that the tool is held true to the spindle axis.
Heavy-Duty Operations: The BT50 taper is designed to handle the forces associated with heavy-duty machining, making it suitable for the SMTGMC-3018's large working envelope and powerful servo motors.
Easy Tool Change: The BT50 taper facilitates quick and easy tool changes, which, combined with the SMTGMC-3018's automatic tool changer, can significantly increase productivity.
Reduced Tool Wear: The secure tool holding provided by the BT50 taper can help reduce tool wear by ensuring that the tool is held perfectly still during the machining process.
CNC Gantry Machining Center 3018's BT50 spindle taper is a testament to SIMETT's commitment to providing advanced, reliable, and precise machining solutions. It offers a perfect blend of compatibility, secure tool holding, and high-precision machining capabilities, making the CNC Gantry Machining Center 3018 an exceptional choice for manufacturers seeking a competitive edge in heavy-duty machining. With a clear vision for global expansion and a commitment to sustainability, SIMETT aims to bring advanced manufacturing solutions to a broader market. The company's planning also prioritizes providing tailored solutions that meet the specific needs of its clients, ensuring that every CNC Gantry Machining Center 3018 produced is a testament to SIMETT's dedication to excellence. Through this forward-thinking approach, SIMETT is not just preparing for the future of manufacturing but is actively shaping it, with a clear mission to empower its clients to achieve new milestones of operational efficiency and market competitiveness.
| Product Specifications |
|
| Machine Name: | CNC Gantry Machining Center |
| Machine Model: | SMTGMC-3018 |
| Travel: |
|
| *-A*is Travel (mm): | 3000 |
| Y-A*is Travel (mm): | 1800 |
| Z-A*is Travel (mm): | 1000 |
|
The distance from bottom of spindle to the table top (mm): |
150-1150 |
| Table Top: |
|
| The height from table top to the cross rail (mm): | 1300 |
| The width of the door (mm): | 1800 |
| The area of table top (mm): | 3000*1600 |
| The Ma*. Loading Weight (kgf): | 8000 |
| T-Shape Groove (W*NO.*P) (mm): | 22*9*180 |
| Spindle: |
|
| Spindle Taper: | BT50 |
| Spindle Speed (rpm): | 6000 |
| The diameter of spindle bush (mm): | Φ190 |
| The power of spindle (kW): | 22/26 (wide area) |
| The driving type of spindle: | Belt-driven |
| The couterweight of Z-A*is: | Nitrogen Balancing Cylinder Block |
| Feed Speed: |
|
| The speed of */Y/Z-A*is (m/min): | 15/15/15 |
| The speed of cutting feed (mm/min): | 1~10000 |
| Min. input unit (mm): | 0.001 |
| The torque of servomotor of */Y/Z-A*is (N.m): | 38/30/30 |
| The width of */Y-A*is guideway (mm): | 55/55 |
| The type of */Y-A*is guideway: | Roller Guideway |
| The type of Z-A*is guideway: | Hard guideway |
| Automatic Blade Changing: |
|
| Cutting Tools Number (pcs): | 24 |
| Shank bolt: | P-50T (45°) |
| Ma*. cutting tool weight (kg): | 18 |
| Ma*. cutting tool length (mm): | 350 |
| Ma*. cutting tool diameter (mm): | Φ112 |
| Ma*. diameter between two cutting tools (mm): | 200 |
| The Time of tool changing (T to T) (sec): | 5 |
| The type of tool changing: | Twin Arm with Gripper |
| Precision: |
|
| Positioning Precision (mm): | 0.03 |
| Repeat-Positioning Precision (mm): | 0.016 |
| Others: |
|
| Site Area (length*width) (mm): | 7850*3350 |
| Ma*. height of machine (mm): | 4700 |
| Machine weight (kg): | 25000 |
| Air Pressure (bar): | 6~8 |
| Electricity capacity (kVA): | 45 |
| CNC system: | FANUC-0iMF/MITSUBISHI-M80 |
| Accessories: √；*；O; "√" means the standard accessories; "*" means the NOT AVAILABLE accessories; "O" means the optional accessories | |
| Standard Accessories: | |
| The hear e*changer of electrical bo* | √ |
| Pre-pulled screw of Triple-a*is | √ |
| Unclamping unit | √ |
| Automatic Feeding Lubricatinig Device | √ |
| All cover chip-free metal plate Cover | √ |
| Dust-free device of electrical bo* | √ |
| chip-free device with air curtain of the bottom of spindle | √ |
| Machine interior light | √ |
| Tricolor warning light | √ |
| rigidty tapping | √ |
| Foundation screw and block | √ |
| operating and maintenance manual | √ |
| Tool kit | √ |
| Types of spindle |
|
| belt-driven type 6000rpm | √ |
| belt-driven type 8000rpm | O |
| two-stage gear bo* 6000rpm | O |
| Oil cooler of spindle | √ |
| CTS system | O |
| Control System |
|
| FANUC-0iMF | √ |
| SIEMENS-828D | O |
| MITSUBISHI-M80 | O |
| KND | O |
| Cooling system |
|
| Cutting fluid cooling system | O |
| Spindle cooling ring | √ |
| workpiece blowing | √ |
| Chip conveying system |
|
| base chip-flushing function | √ |
| Top cover shower function | O |
| flushing water gun/ air gun | √ |
| chip conveying machine | O |
| Oil-water separation system |
|
| specific gravity type Oil-water separation device | √ |
| Circle pad type Oil-water separation device | O |
| Lubricating system |
|
| Automatic Oil Feeding Lubricatinig Device | √ |
| Automatic Grease Feeding Lubricatinig Device | O |
| ATC |
|
| BT50 Shank specification | √ |
| HSK Shank specification | O |
| 24T disc type tool magazine | √ |
| 30T disc type tool magazine | O |
| Error compensation system |
|
| */Y-A*is grating ruler | O |
| */Y/Z-A*is grating ruler | O |
| Electrical system accessories |
|
| The security device of Operating door | O |
| The security device of Operating door (CE) | O |
| Automatic contact breaking system | √ |
| The heat e*changer of electrical bo* | √ |
| The cooling air motor of electrical bo* | O |
| Cutting tool/ workpiece detective system |
|
| Automatic cutting tool length detector | O |
| Tool failure detector | O |
| Workpiece detector | O |
Extended Travel Dimensions: With an X-axis travel of 3000mm, a Y-axis travel of 1800mm, and a Z-axis travel of 1000mm, the CNC Gantry Machining Center 3018 offers a vast working area suitable for large and complex workpieces.
Spindle Taper: The main spindle features a BT50 taper, a universal standard that ensures compatibility with a wide range of high-precision tools and provides secure tool holding for enhanced machining accuracy.
Power Capacity: The CNC Gantry Machining Center 3018 boasts a substantial power capacity of 45KVA, ensuring that the machine can handle demanding machining operations with ease.
Z-Axis Counterweight System: The use of a Nitrogen Balancing Cylinder Block on the Z-axis enhances stability and reduces vibration, leading to superior surface finishes and precision.
Maximum Tool Diameter: The machine supports a maximum tool diameter of Φ112MM, allowing for the use of larger tools and a wider range of machining capabilities.
Servo Motor Torque: The CNC Gantry Machining Center 3018 is equipped with high-torque servo motors rated at 38/30/30N.m for the X/Y/Z axes, respectively, providing powerful and precise control over the machining process.
Compatibility: The BT50 taper is a widely accepted standard in the industry, ensuring compatibility with a broad range of tooling options, including high-precision tools.
Secure Tool Holding: The BT50 design provides a secure and rigid tool holding mechanism, which is critical for maintaining accuracy and repeatability in machining operations.
High-Precision Machining: The BT50 taper allows for high-precision machining by minimizing runout and ensuring that the tool is held true to the spindle axis.
Heavy-Duty Operations: The BT50 taper is designed to handle the forces associated with heavy-duty machining, making it suitable for the SMTGMC-3018's large working envelope and powerful servo motors.
Easy Tool Change: The BT50 taper facilitates quick and easy tool changes, which, combined with the SMTGMC-3018's automatic tool changer, can significantly increase productivity.
Reduced Tool Wear: The secure tool holding provided by the BT50 taper can help reduce tool wear by ensuring that the tool is held perfectly still during the machining process.
CNC Gantry Machining Center 3018's BT50 spindle taper is a testament to SIMETT's commitment to providing advanced, reliable, and precise machining solutions. It offers a perfect blend of compatibility, secure tool holding, and high-precision machining capabilities, making the CNC Gantry Machining Center 3018 an exceptional choice for manufacturers seeking a competitive edge in heavy-duty machining. With a clear vision for global expansion and a commitment to sustainability, SIMETT aims to bring advanced manufacturing solutions to a broader market. The company's planning also prioritizes providing tailored solutions that meet the specific needs of its clients, ensuring that every CNC Gantry Machining Center 3018 produced is a testament to SIMETT's dedication to excellence. Through this forward-thinking approach, SIMETT is not just preparing for the future of manufacturing but is actively shaping it, with a clear mission to empower its clients to achieve new milestones of operational efficiency and market competitiveness.
