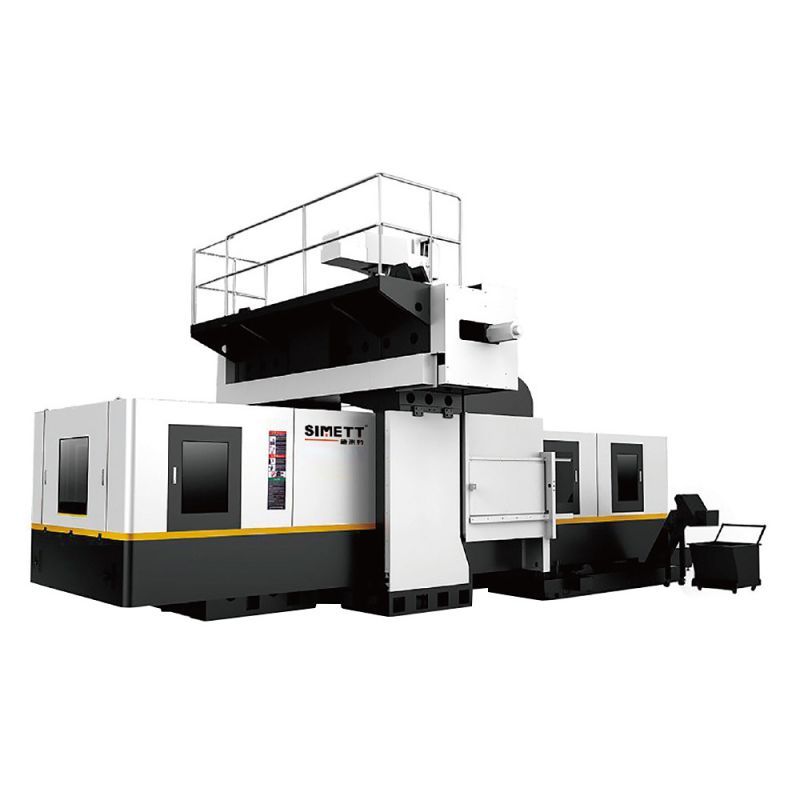

CNC Gantry Machining Center 2016

SIMETT is at the forefront of the CNC Gantry Machining Center 2016 revolution, with a steadfast commitment to precision and a pioneering approach to innovation. As a leading provider of state-of-the-art CNC solutions, SIMETT has set the benchmark for quality, durability, and technological advancement in manufacturing.

Send Inquiry

Product Description


With a customer-centric philosophy, SIMETT continues to push the boundaries of what's possible, establishing new standards of excellence. The CNC Gantry Machining Center 2016 is a flagship model that encapsulates SIMETT's dedication to engineering excellence, offering professional manufacturers a powerful, precise, and versatile solution for large-scale machining operations.

Product Specifications
Machine Name: CNC Gantry Machining Center
Machine Model: SMTGMC-2016
Travel:
X-Axis Travel (mm): 2000
Y-Axis Travel (mm): 1650
Z-Axis Travel (mm): 800
The distance from the center of spindle to the table top (mm): 250~1050
The distance from bottom of spindle to the center of table top (mm):
Table Top: 1100
The area of table top (mm): 1660
The Max. Loading Weight (kgf): 2000*1300
T-Shape Groove (WxNO.xP) (mm): 4000
Table Top Thread Hole: 22*7*170
The Min. graduation of table top (°):
Spindle: BT50
Spindle Taper: 6000
Spindle Speed (rpm): Φ190
The diameter of spindle bush (mm): 22/26 (wide area)
The power of spindle (kW): Belt-driven
The driving type of spindle: Nitrogen Balancing Cylinder Block
The couterweight of Y-Axis:
Feed Speed: 15/15/15
The speed of X/Y/Z-Axis (m/min): 1~10000
The speed of cutting feed (mm/min): 0.001
Min. input unit (mm): 38/30/30
The power of servomotor of X/Y/Z-Axis (kW): 55/55
The width of X/Y/Z-Axis guideway (mm): Roller Guideway
The type of X/Z-Axis guideway: Hard guideway
The type of Y-Axis guideway:
Automatic Blade Changing: 24
Cutting Tools Number (pcs): P-50T (45°)
Shank bolt: 18
Max. cutting tool weight (kg): 350
Max. cutting tool length (mm): Φ112
Max. cutting tool diameter (mm): 200
Max. diameter between two cutting tools (mm): 5
The Time of tool changing (T to T)  (sec): Twin Arm with Gripper
The type of tool changing:
APC: 0.03
number of plate (pcs): 0.016
The type of exchanging:
Max. revolving diameter of workpiece (mm): 4100*3100
Precision: 3800
Positioning Precision (mm): 17000
Repeat-Positioning Precision (mm): 6~8
Others: 35
CNC system: FANUC-0iMF/MITSUBISHI-M80
Accessories: √;*;O; "√" means the standard accessories; "*" means the NOT AVAILABLE accessories; "O" means the optional accessories
Standard Accessories:
The hear e*changer of electrical bo*
Pre-pulled screw of Triple-a*is
Unclamping unit
Automatic Feeding Lubricatinig Device
All cover chip-free metal plate Cover
Dust-free device of electrical bo*
chip-free device with air curtain of the bottom of spindle
Machine interior light
Tricolor warning light
rigidty tapping
Foundation screw and block
operating and maintenance manual
Tool kit
Types of spindle
belt-driven type 6000rpm
belt-driven type 8000rpm O
two-stage gear bo* 6000rpm O
Oil cooler of spindle
CTS system O
Control System
FANUC-0iMF
SIEMENS-828D O
MITSUBISHI-M80 O
KND O
Cooling system
Cutting fluid cooling system O
Spindle cooling ring
workpiece blowing
Chip conveying system
base chip-flushing function
Top cover shower function O
flushing water gun/ air gun
chip conveying machine O
Oil-water separation system
specific gravity type Oil-water separation device
Circle pad type Oil-water separation device O
Lubricating system
Automatic Oil Feeding Lubricatinig Device
Automatic Grease Feeding Lubricatinig Device O
ATC
BT50 Shank specification
HSK Shank specification O
24T disc type tool magazine
30T disc type tool magazine O
Error compensation system
*/Y-A*is grating ruler O
*/Y/Z-A*is grating ruler O
Electrical system accessories
The security device of Operating door O
The security device of Operating door (CE) O
Automatic contact breaking system
The heat e*changer of electrical bo*
The cooling air motor of electrical bo* O
Cutting tool/ workpiece detective system
Automatic cutting tool length detector O
Tool failure detector O
Workpiece detector O

Extended Travel Dimensions: With an X-axis travel of 2000mm, a Y-axis travel of 1650mm, and a Z-axis travel of 800mm, the CNC Gantry Machining Center 2016 provides a vast working area suitable for large and complex workpieces.
Spindle Quill Diameter: The main spindle features a quill diameter of Φ190mm, accommodating a wide array of tooling options and ensuring compatibility with various machining tasks.
Spindle Power Options: The main spindle is available in two high-power variants, 22KW or 26KW, designed to handle heavy-duty machining operations with ease.
Rapid Traverse Rates: The axes are designed for swift movement, with rapid traverse rates of 15m/min for the X, Y, and Z axes, enhancing productivity with quick repositioning.
Maximum Tool Diameter: The CNC Gantry Machining Center 2016 supports a maximum tool diameter of Φ112MM, allowing for the use of larger tools and a wider range of machining capabilities.
Minimum Input Unit: The CNC Gantry Machining Center 2016 offers a minimum input unit of 0.001mm, ensuring high precision and fine control over the machining process.
Efficient Power Transmission: Belt drives are known for their efficient power transmission, with the ability to handle high power outputs reliably, as evidenced by the 22/26KW options.
Reduced Vibration and Noise: The use of a belt drive system results in less vibration and noise compared to direct drive systems, contributing to a smoother and quieter machining process.
Lower Maintenance: Belts are relatively low-maintenance, requiring less frequent service intervals compared to other drive mechanisms, which can reduce downtime and maintenance costs.
Versatile Speed Range: CNC Gantry Machining Center 2016's belt-driven spindles offer a wide range of speed adjustments, providing greater flexibility for various machining applications.
Shock Absorption: Belt drives can absorb shock loads more effectively, protecting the spindle and other components from damage during heavy-duty operations.
Ease of Replacement: In the event of wear or damage, belts are easier and quicker to replace than other drive components, minimizing machine downtime.
Cost-Effective: Belt drives are often more cost-effective than other drive systems, providing a balance of performance and economy.
In conclusion, the CNC Gantry Machining Center 2016's belt-driven spindle system is a testament to SIMETT's forward-thinking approach to machinery design. It offers a perfect blend of efficiency, reliability, and low-maintenance operation, making the CNC Gantry Machining Center 2016 an exceptional choice for manufacturers seeking a competitive edge in heavy-duty machining.As SIMETT charts its course for the future, the company is focused on a strategic path that encompasses continuous innovation, expanding product lines, and deepening customer relationships. With a clear vision for global expansion and a commitment to sustainability, SIMETT is dedicated to bringing advanced manufacturing solutions to a broader market. The company's planning is also aimed at providing tailored solutions that meet the specific needs of its clients, ensuring that every CNC Gantry Machining Center 2016 produced is a testament to SIMETT's dedication to excellence. Through this forward-thinking approach, SIMETT is not just preparing for the future of manufacturing but is actively shaping it, with a clear mission to empower its clients to achieve new milestones of operational efficiency and market competitiveness.
