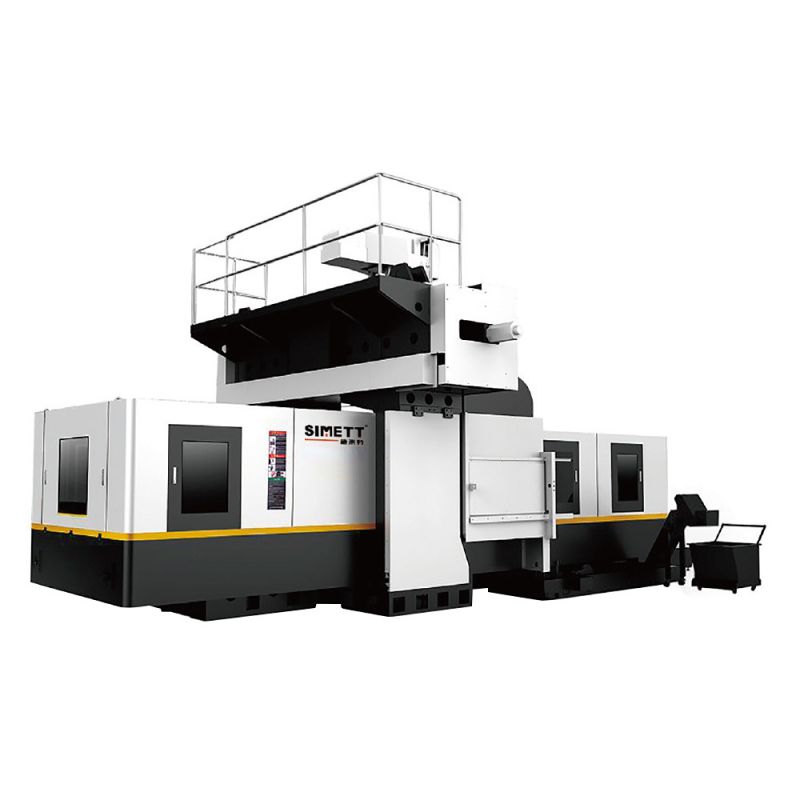

CNC Gantry Machining Center 2518

SIMETT is a leader in the manufacturing industry, recognized for its commitment to precision, innovation, and the development of advanced CNC Gantry Machining Center 2518. With a legacy of delivering durable, reliable, and high-performance solutions, SIMETT has set the benchmark for excellence in industrial manufacturing.

Send Inquiry

Product Description


The company's customer-centric philosophy ensures that every machine is designed to exceed the highest industry standards.The CNC Gantry Machining Center 2518 is a pinnacle of SIMETT's engineering expertise, offering a powerful and versatile solution for large-scale and heavy-duty machining applications.

Product Specifications
Machine Name: CNC Gantry Machining Center
Machine Model: SMTGMC-2518
Travel:
X-Axis Travel (mm): 2500
Y-Axis Travel (mm): 1800
Z-Axis Travel (mm): 1000
The distance from the center of spindle to the table top (mm): 150-1150
The distance from bottom of spindle to the center of table top (mm):
Table Top: 1300
The area of table top (mm): 1800
The Max. Loading Weight (kgf): 2500*1600
T-Shape Groove (WxNO.xP) (mm): 7000
Table Top Thread Hole: 22*9*180
The Min. graduation of table top (°):
Spindle: BT50
Spindle Taper: 6000
Spindle Speed (rpm): Φ190
The diameter of spindle bush (mm): 22/26 (wide area)
The power of spindle (kW): Belt-driven
The driving type of spindle: Nitrogen Balancing Cylinder Block
The couterweight of Y-Axis:
Feed Speed: 15/15/15
The speed of X/Y/Z-Axis (m/min): 1~10000
The speed of cutting feed (mm/min): 0.001
Min. input unit (mm): 38/30/30
The power of servomotor of X/Y/Z-Axis (kW): 55/55
The width of X/Y/Z-Axis guideway (mm): Roller Guideway
The type of X/Z-Axis guideway: Hard guideway
The type of Y-Axis guideway:
Automatic Blade Changing: 24
Cutting Tools Number (pcs): P-50T (45°)
Shank bolt: 18
Max. cutting tool weight (kg): 350
Max. cutting tool length (mm): Φ112
Max. cutting tool diameter (mm): 200
Max. diameter between two cutting tools (mm): 5
The Time of tool changing (T to T)  (sec): Twin Arm with Gripper
The type of tool changing:
APC: 0.03
number of plate (pcs): 0.016
The type of exchanging:
Max. revolving diameter of workpiece (mm): 6000*3350
Precision: 4080
Positioning Precision (mm): 22000
Repeat-Positioning Precision (mm): 6~8
Others: 40
CNC system: FANUC-0iMF/MITSUBISHI-M80
Accessories: √;*;O; "√" means the standard accessories; "*" means the NOT AVAILABLE accessories; "O" means the optional accessories
Standard Accessories:
The hear e*changer of electrical bo*
Pre-pulled screw of Triple-a*is
Unclamping unit
Automatic Feeding Lubricatinig Device
All cover chip-free metal plate Cover
Dust-free device of electrical bo*
chip-free device with air curtain of the bottom of spindle
Machine interior light
Tricolor warning light
rigidty tapping
Foundation screw and block
operating and maintenance manual
Tool kit
Types of spindle
belt-driven type 6000rpm
belt-driven type 8000rpm O
two-stage gear bo* 6000rpm O
Oil cooler of spindle
CTS system O
Control System
FANUC-0iMF
SIEMENS-828D O
MITSUBISHI-M80 O
KND O
Cooling system
Cutting fluid cooling system O
Spindle cooling ring
workpiece blowing
Chip conveying system
base chip-flushing function
Top cover shower function O
flushing water gun/ air gun
chip conveying machine O
Oil-water separation system
specific gravity type Oil-water separation device
Circle pad type Oil-water separation device O
Lubricating system
Automatic Oil Feeding Lubricatinig Device
Automatic Grease Feeding Lubricatinig Device O
ATC
BT50 Shank specification
HSK Shank specification O
24T disc type tool magazine
30T disc type tool magazine O
Error compensation system
*/Y-A*is grating ruler O
*/Y/Z-A*is grating ruler O
Electrical system accessories
The security device of Operating door O
The security device of Operating door (CE) O
Automatic contact breaking system
The heat e*changer of electrical bo*
The cooling air motor of electrical bo* O
Cutting tool/ workpiece detective system
Automatic cutting tool length detector O
Tool failure detector O
Workpiece detector O

Spindle Nose to Table Distance: The CNC Gantry Machining Center 2518 offers a generous range of 150-1150mm from the spindle nose to the work table, accommodating a wide variety of workpiece sizes and machining requirements.
T-Slot Specifications: The work table is equipped with T-slots of 22mm width, 9 in number, and spaced at 180mm pitch, providing a versatile and secure platform for workpiece fixtures.
Power Capacity: The CNC Gantry Machining Center 2518 boasts a substantial power capacity of 40KVA, ensuring that the machine can handle demanding machining operations with ease.
Rapid Traverse Rates: The axes are designed for swift movement, with rapid traverse rates of 15m/min for the X, Y, and Z axes, optimizing productivity with quick repositioning.
Maximum Tool Diameter: The CNC Gantry Machining Center 2518 supports a maximum tool diameter of Φ112MM, allowing for the use of larger tools and a wider range of machining capabilities.
Minimum Input Unit: The CNC Gantry Machining Center 2518 offers a minimum input unit of 0.001mm, ensuring high precision and fine control over the machining process.
High-Performance Control: The FANUC-0iMF and MITSUBISHI-M80 are known for their high-speed processing capabilities and superior control, allowing for complex machining programs to be executed with precision.
User-Friendly Interface: These CNC systems offer an intuitive user interface, simplifying the programming and operation of the machine, and reducing the learning curve for operators.
Advanced Features: They come with advanced features such as 3D machine visualization, high-speed interpolation, and custom macro programming, which enhance the machine's flexibility and efficiency.
Reliability and Stability: These CNC Gantry Machining Center 2518's systems are renowned for their reliability and stability, ensuring consistent performance even in the most demanding machining environments.
Integration Capabilities: The FANUC-0iMF and MITSUBISHI-M80 are designed to integrate seamlessly with various automation and monitoring systems, facilitating the creation of a smart manufacturing cell.
Support and Compatibility: These CNC systems offer extensive support and compatibility with a wide range of peripherals and software, allowing for easy customization and upgrades.
Energy Efficiency: They are designed to be energy efficient, reducing the machine's overall power consumption and contributing to lower operating costs.
CNC Gantry Machining Center 2518's FANUC-0iMF or MITSUBISHI-M80 CNC system is a testament to SIMETT's commitment to providing advanced, reliable, and user-friendly control solutions. It offers a perfect blend of high performance, advanced features, and energy efficiency, making the CNC Gantry Machining Center 2518 an exceptional choice for manufacturers seeking a competitive edge in heavy-duty machining. SIMETT is focused on a strategic path that includes continuous innovation, expanding product lines, and deepening customer relationships. With a clear vision for global expansion and a commitment to sustainability, SIMETT aims to bring advanced manufacturing solutions to a broader market. The company's planning also prioritizes providing tailored solutions that meet the specific needs of its clients, ensuring that every machine produced is a testament to SIMETT's dedication to excellence. Through this forward-thinking approach, SIMETT is not just preparing for the future of manufacturing but is actively shaping it, with a clear mission to empower its clients to achieve new milestones of operational efficiency and market competitiveness.
