Advantages and Features of CNC Saddle Surface Grinding Machine

Table of Contents

1. What is a CNC Saddle Surface Grinding Machine?

2. Key Advantages for Precision Manufacturing

3. In-Depth Look at Core Features

4. Critical Technical Specifications

5. Applications Across Industries

6. Frequently Asked Questions (FAQ)

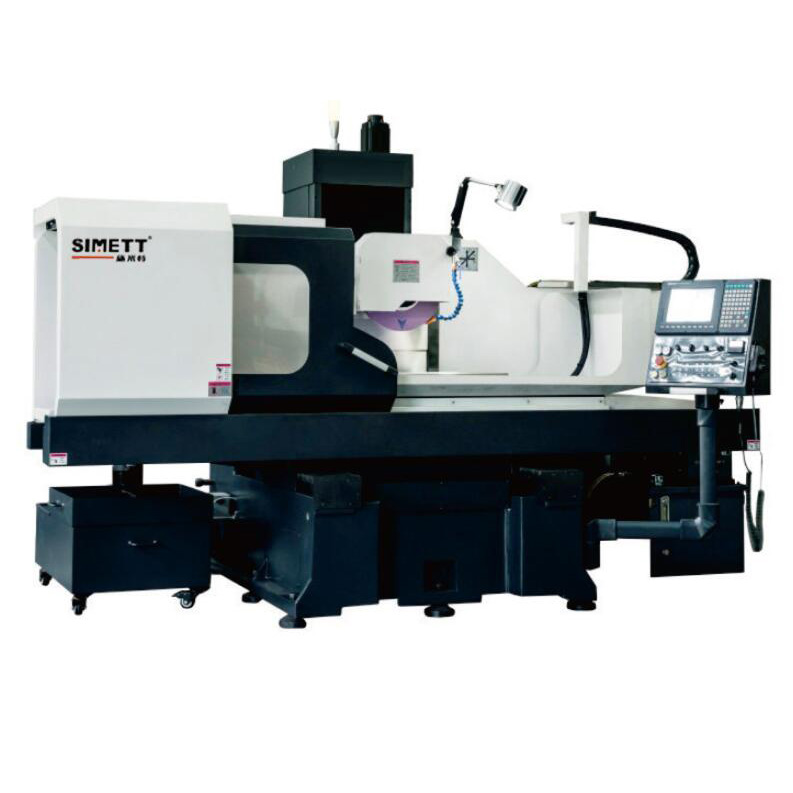

1. What is a CNC Saddle Surface Grinding Machine?

A CNC Saddle Surface Grinding Machine represents a significant advancement in precision grinding technology. Unlike conventional grinding machines, this type of equipment features a moving "saddle" structure, which is a robust, heavy-duty base that carries the workpiece table. This saddle moves longitudinally under the grinding wheel, providing exceptional stability and rigidity. The integration of Computer Numerical Control (CNC) elevates this machine to new levels of accuracy, repeatability, and automation. It is specifically engineered for producing exceptionally flat and smooth surfaces on a wide range of materials, from hardened steel to ceramics, making it indispensable in tool rooms and high-volume production environments.

2. Key Advantages for Precision Manufacturing

The design of the CNC Saddle Surface Grinding Machine offers distinct benefits that translate directly to improved productivity and part quality.

• Unmatched Stability and Rigidity: The massive saddle construction minimizes vibrations during the grinding process. This damping effect is crucial for achieving superior surface finishes and holding tight geometrical tolerances.

• High Precision and Repeatability: The CNC system ensures every movement of the saddle, cross-feed, and wheel head is precisely controlled. This guarantees that every part produced is identical, batch after batch, reducing scrap rates.

• Enhanced Productivity: Automation features, such as automatic wheel dressing and programmable down-feed, significantly reduce manual intervention and cycle times. This allows for unattended operation, even for complex jobs.

• Exceptional Surface Finish: The combination of stability, precision control of feed rates, and advanced grinding wheel technology allows this machine to produce surface finishes that are often impossible to achieve with other methods.

• Versatility: A modern CNC Saddle Surface Grinding Machine can handle a diverse range of workpieces, from small, intricate components to large, heavy dies and molds.

3. In-Depth Look at Core Features

The superiority of this grinding machine is rooted in its specific features:

• Saddle Movement Structure: The core feature where the entire worktable moves on a rigid saddle, ensuring consistent grinding force and heat dispersion.

• Precision Ball Screws: High-accuracy ball screws on all axes are driven by servo motors, providing precise positioning and smooth movement.

• Automatic Wheel Dressing System: Maintains the grinding wheel's profile and sharpness automatically, ensuring consistent performance and finish without operator downtime.

• User-Friendly CNC Control Panel: An intuitive interface, often with graphical programming, simplifies operation and reduces the learning curve for skilled machinists.

• Flood Coolant System: Efficiently removes heat from the grinding zone, preventing thermal damage to the workpiece and ensuring dimensional accuracy.

4. Critical Technical Specifications

When selecting a CNC Saddle Surface Grinding Machine, understanding its technical parameters is essential. The following list and table detail the key specifications.

Key Parameters List:

• Grinding Capacity: Maximum length, width, and height of a workpiece that can be accommodated.

• Table Travel: The maximum longitudinal movement of the saddle.

• Grinding Wheel Size: The diameter and width of the standard grinding wheel.

• Spindle Power: The power of the main motor, indicating the machine's ability to handle heavy cuts.

• Positioning Resolution: The smallest movement increment the machine can make, directly affecting precision.

5. Applications Across Industries

This machine is vital in sectors where precision flatness and surface integrity are paramount:

• Tool and Die Making: For manufacturing and maintaining precision molds, dies, and fixtures.

• Automotive: Producing engine components, transmission parts, and precision gears.

• Aerospace: Grinding critical components like turbine blades and structural parts that require the highest levels of accuracy.

• General Precision Engineering: For any application requiring high-tolerance flat surfaces, such as machine slides and gauge blocks.

6. Frequently Asked Questions (FAQ)

Q1: How does a saddle-type design differ from a column-type surface grinder?
A1: The primary difference is in the movement. In a column-type machine, the grinding head moves crosswise on a vertical column. In a saddle-type machine, the entire worktable is mounted on a saddle that moves longitudinally. This saddle design offers greater mass and stability, leading to better vibration damping and higher precision for heavy-duty grinding.

Q2: What materials can be processed on this machine?
A2: A CNC Saddle Surface Grinding Machine is highly versatile and can grind a wide array of materials, including all types of hardened and unhardened steel, cast iron, carbide, ceramics, and other exotic alloys. The appropriate grinding wheel must be selected for the specific material.

Q3: Can this machine perform angular grinding?
A3: Yes, most modern CNC models are equipped with a grinding wheel head that can be swiveled precisely for angular grinding. The CNC control allows for programming complex angles, enabling the production of components with inclined surfaces or intricate profiles with high accuracy.
