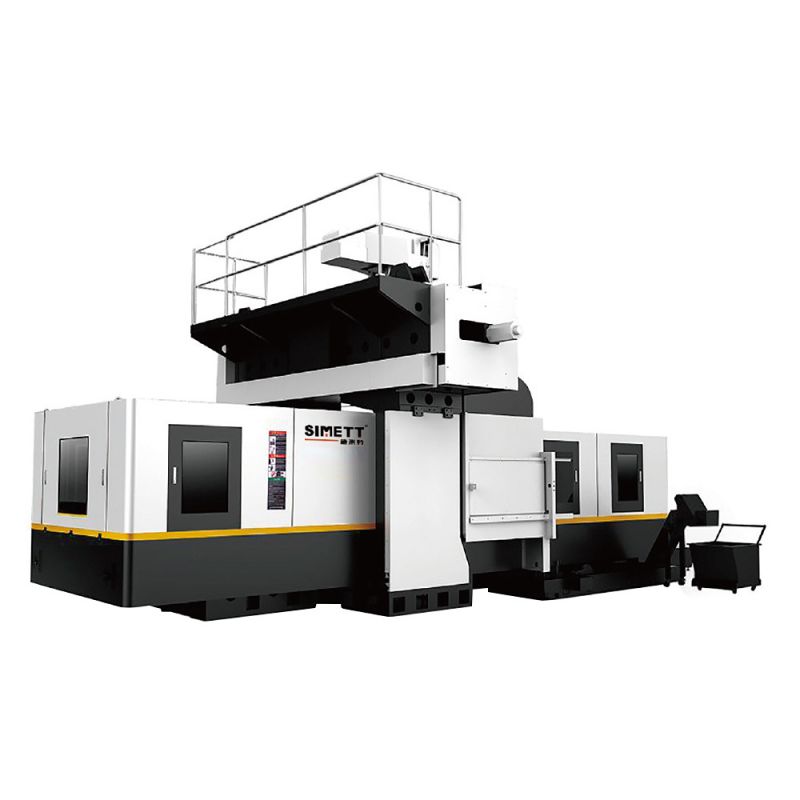

What are the characteristics of CNC Gantry Machining Center?

For over two decades, SIMETT® has been at the forefront of precision engineering, delivering powerful machining centers that redefine efficiency and reliability. Our CNC Gantry Machining Center combines cutting-edge innovation with industrial toughness, enabling unparalleled productivity in industries like aerospace, automotive, and energy. Take a look at its features below.

Structural Advantages

Rugged Gantry Design: A cast iron structure with a reinforced crossbeam minimizes vibration and ensures micron-level precision.

Large Working Volume: Accommodates extremely large components (such as turbine casings or molds), with table dimensions up to 6,000 × 3,000 × 1,500 mm.

High Load Capacity:  CNC Gantry Machining Center can support weights exceeding 30 tons, making it ideal for heavy-duty applications.

Advanced Drive and Control Systems

High-Speed Spindle: A direct-drive spindle (12,000–24,000 RPM) reduces thermal distortion.

Multi-Axis Capability: 3-, 4-, and 5-axis configurations are available for complex geometries.

Siemens/Fanuc Control System: Real-time monitoring and adaptive machining.

Versatility and Efficiency

Material Compatibility: Machining steel, titanium, composites, and non-ferrous alloys.

Integrated Cooling: A high-pressure coolant system (20–80 bar) extends tool life.

Automation Readiness: A pallet changer and IoT connectivity enable Industry 4.0 integration.

High-Speed Machining (HSM): Reduces cycle times by 40%.

Tool Management: Over 60 tool magazines with automated tool changers.

Energy Savings: Regenerative drives reduce power consumption by 25%.

Safety and Sustainability

Emergency stop circuit and laser protection zone.

ISO 16090-1 Compliance: Ensures safe operating procedures.

Energy Saving Mode: Reduces idling and optimizes power consumption.

FAQ

Q1: What features make the CNC Gantry Machining Center stand out for large-part manufacturing?

A1: Their gantry frames offer unparalleled rigidity and massive worktables (up to 6,000 mm long), enabling stable machining of even very large parts. A high-torque spindle (80 kW) and a load capacity exceeding 30 tons ensure consistent precision for applications in the aerospace and energy sectors.

Q2: What are the characteristics of CNC gantry machining centers in terms of precision and adaptability?

A2: These centers achieve an accuracy of ±0.008 mm through linear scales and thermal compensation. Multi-axis configurations (3-5 axes) and customizable tooling enable machining of complex contours, pockets, and angular features in materials such as aluminum and hardened steel.

Q3: What are the safety and operational reliability features of these CNC gantry machining centers?

A3: They feature integrated collision detection, emergency stops, and pressure-sensitive safety curtains. Predictive maintenance through onboard diagnostics minimizes downtime, while the robust structure ensures a service life exceeding 15,000 hours under heavy-duty conditions.
