How does the CNC Gantry Machining Center contribute to modern manufacturing?

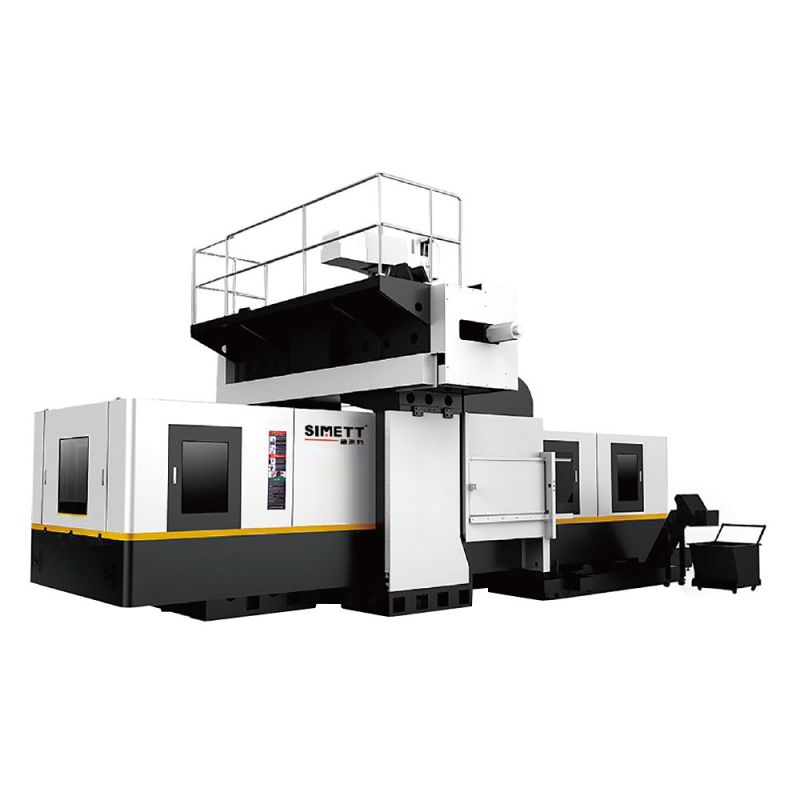

In the highly competitive field of industrial manufacturing, the pursuit of precision, reliability and efficiency is endless. SIMETT® has become the cornerstone of manufacturing, renowned for providing high-performance machinery that meets the demanding requirements of modern production. We uphold innovation, quality and a firm commitment to our customers' success, constantly passing on the classics. Learn about SIMETT® 's CNC Gantry Machining Center. The robust gantry structure is the cornerstone of its outstanding performance. Unlike traditional C-frame machine tools, the gantry design can distribute weight and processing force more evenly, thereby achieving excellent rigidity and vibration damping performance. This inherent stability is crucial for maintaining micron-level precision during long-term production operation and processing of hard materials.

Main system

Structural design: Fixed gantry, mobile worktable or mobile bridge frame designs are provided to achieve the best application matching.

Control system: High-performance CNC system, equipped with advanced 3D interpolation function.

Spindle type: Integrated electric spindle, achieving high torque and speed stability.

Tool magazine: Random access bidirectional tool magazine, high-speed drive.

Shaft drive system: AC digital servo driver, equipped with a precision linear grating ruler or high-resolution rotary encoder.

Cooling system: Integrated spindle and ball screw cooling system to ensure thermal stability.

Safety features: All-round protection, emergency stop circuit and interlocking access door.

Committed to sustainable development

At SIMETT®, we firmly believe that productivity should never come at the expense of safety. Our CNC Gantry Machining Center adopts a multi-layer safety system design:

Physical protection: Fully enclosed structure, equipped with reinforced transparent panels to ensure the operator's field of vision and safety protection.

Interlocking system: All inspection doors are electronically interlocked. When opened, the machine will stop running.

Emergency Stop: Prominent emergency stop buttons are installed on both the control panel and around the machine.

Software security: The CNC software integrates anti-collision and axis limit monitoring functions.

Our commitment to responsible production is also reflected in energy efficiency. We adopt high-efficiency spindle motors and drivers, regenerative power units and intelligent sleep modes to reduce the total cost of ownership and minimize the impact on the environment.

Frequently Asked Questions

What are the main advantages of the CNC Gantry Machining Center compared with the C-type rack machining center?

The main advantages lie in rigidity, stability and the ability to process large workpieces. Compared with the cantilever design of C-type frame machine tools, the symmetrical structure of gantry machine tools enables them to have stronger resistance to torsion and deformation when subjected to heavy cutting loads. This brings about better surface finish, smaller tolerances and longer tool life. In addition, the gantry design allows for the use of a larger worktable and enables the processing of extremely wide and long workpieces that C-type rack machines cannot handle.

How to determine the appropriate spindle configuration (speed, power, taper) for my application?

Choosing the right spindle is of vital importance, which depends on your material and the type of processing. For heavy-duty milling of steel or iron materials, high-torque, low-speed spindles (for example, 8000 rpm, 40 kW, CAT 50) are ideal choices. For aluminium or non-ferrous metals, high-speed spindles (above 18,000 rpm) are more efficient. For fine processing or composite material processing, extremely high rotational speeds (above 24,000 rpm) are required. Tool taper (CAT 40, CAT 50, HSK) is related to rigidity and rotational speed; CAT 40/50 is often used for general and heavy cutting, while HSK is more suitable for high-speed machining due to its excellent balance and clamping force.

How to formulate a maintenance plan to ensure long-term accuracy and reliability?

A strict preventive maintenance plan is of vital importance. Daily maintenance includes checking the lubricating oil level, removing chips and inspecting whether parts are loose. The guide rail cover should be cleaned and the hydraulic or pneumatic pressure checked every week. Check the tool changing mechanism and clean the taper of the spindle every month. It is of vital importance to recommend that a comprehensive annual inspection be conducted by certified technicians. This includes checking the alignment of the axes, the backlash of the ball screws and the runout of the main shaft, and replenishing the lubricating oil for the guide rails and the grease for all bearings. Maintenance strictly in accordance with this plan can maintain the machine's geometry and prevent unexpected shutdowns.
