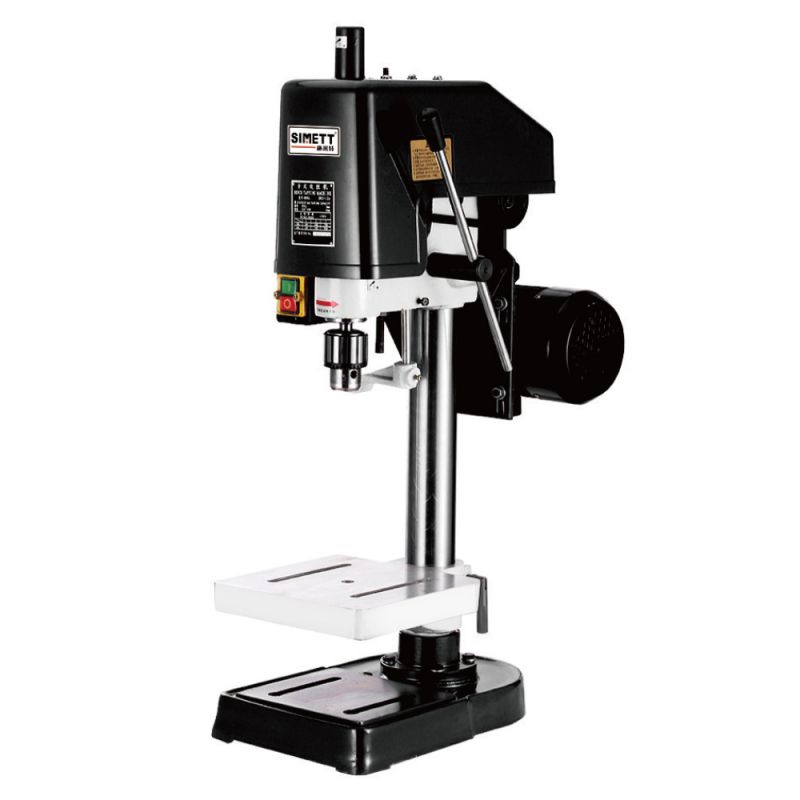

Industrial 9-inch Benchtop Tapping Machine M12
  • Industrial 9-inch Benchtop Tapping Machine M12 - 0 Industrial 9-inch Benchtop Tapping Machine M12 - 0

Industrial 9-inch Benchtop Tapping Machine M12

With a strong presence in China, SIMETT serves as both a manufacturer and supplier of Industrial 9-inch Benchtop Tapping Machine M12 on a wholesale scale. We ensure that you receive top-tier service and favorable pricing.

Send Inquiry

Product Description


Product Specifications
Product Name: Industrial 9-inch Benchtop Tapping Machine M12
Model Number: SWJ-12A
Voltage: 220-240V/ 120V (380V is also available)
Frequency: 50/60HZ
Maximum borehole diameter (Steel/Castings)(mm) M12
Motor Power: 550W
Spindle Travel: 40mm
Spindle Speed Series: 3
Spindle Speed Range (In 50/ 60HZ): 260,440,750 RPM
Spindle Taper: B16
Max. Distance from Spindle Axis to Surface of Column: 120mm
Max. Distance from Spindle End to Surface of Table: 290mm
Max. Distance from Spindle End to Surface of Base: 420mm
Swing: 240mm
Table Size: 240x240mm
Base Size: 400x250mm
Column Diameter: Φ60mm
Machine Height: 850mm
Net / Gross Weight: 51/61KG
Packing Size: 59x35x90cm

Feature

Industrial 9-inch Benchtop Tapping Machine M12


*The mechanical friction clutch realizes the positive and negative rotation of the spindle.
*The main shaft has commutation impact and small vibration.
*Three gears adjustable speed, stable speed, suitable for batch tapping.



The SIMETT Industrial 9-inch Benchtop Tapping Machine M12, equipped with a mechanical friction clutch, offers a significant advantage in terms of spindle control for both positive and negative rotations. Here's a focused look at this feature and its benefits:
Positive and Negative Rotation: The mechanical friction clutch allows the spindle to rotate in both clockwise (positive) and counterclockwise (negative) directions. This feature is particularly useful for various tapping applications where the direction of rotation can affect the threading process or the removal of chips.
Controlled Operation: The Industrial 9-inch Benchtop Tapping Machine M12's clutch provides a means to control the spindle's rotation, enabling the operator to start and stop the spindle smoothly, which is essential for precision work.
Overload Protection: In the event of an overload or jam, the friction clutch can slip, preventing damage to the motor and other components. This safety feature protects the machine and the workpiece from excessive forces.
Maintenance: Being a mechanical system, the friction clutch is generally low-maintenance and can be easily serviced or replaced if necessary.
Longevity: By protecting the machine from overloads, the mechanical clutch helps extend the life of the motor and other components.
Precision Tapping: For applications requiring precise control over the direction of spindle rotation for optimal thread quality.
Automotive and Repair Shops: Industrial 9-inch Benchtop Tapping Machine M12 is useful for repair work where the ability to reverse the spindle can help with certain types of threading or unthreading.
Custom Fabrication: Industrial 9-inch Benchtop Tapping Machine M12 is perfect for custom work where specific threading techniques require controlled spindle rotation.
In conclusion, the mechanical friction clutch in the SIMETT Industrial 9-inch Benchtop Tapping Machine M12 provides a high level of control and safety for spindle rotation, enhancing the machine's performance and versatility. This feature is particularly beneficial for precision tapping applications and contributes to the machine's reliability and user-friendliness.
