17-inch Floor Drill Press 25mm
  • 17-inch Floor Drill Press 25mm - 0 17-inch Floor Drill Press 25mm - 0
  • 17-inch Floor Drill Press 25mm - 1 17-inch Floor Drill Press 25mm - 1
  • 17-inch Floor Drill Press 25mm - 2 17-inch Floor Drill Press 25mm - 2
  • 17-inch Floor Drill Press 25mm - 3 17-inch Floor Drill Press 25mm - 3
  • 17-inch Floor Drill Press 25mm - 4 17-inch Floor Drill Press 25mm - 4
  • 17-inch Floor Drill Press 25mm - 5 17-inch Floor Drill Press 25mm - 5

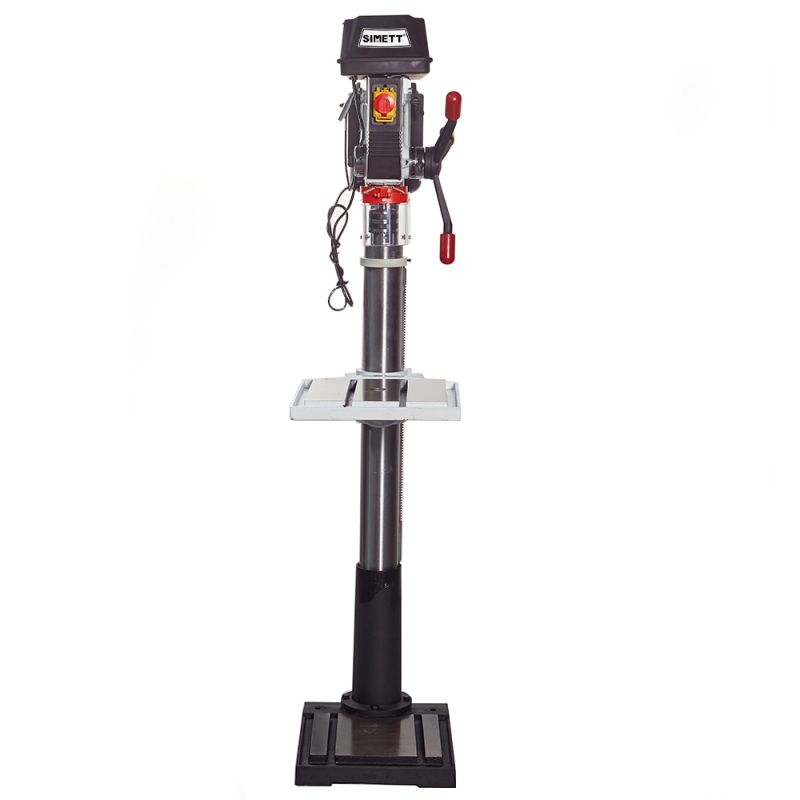

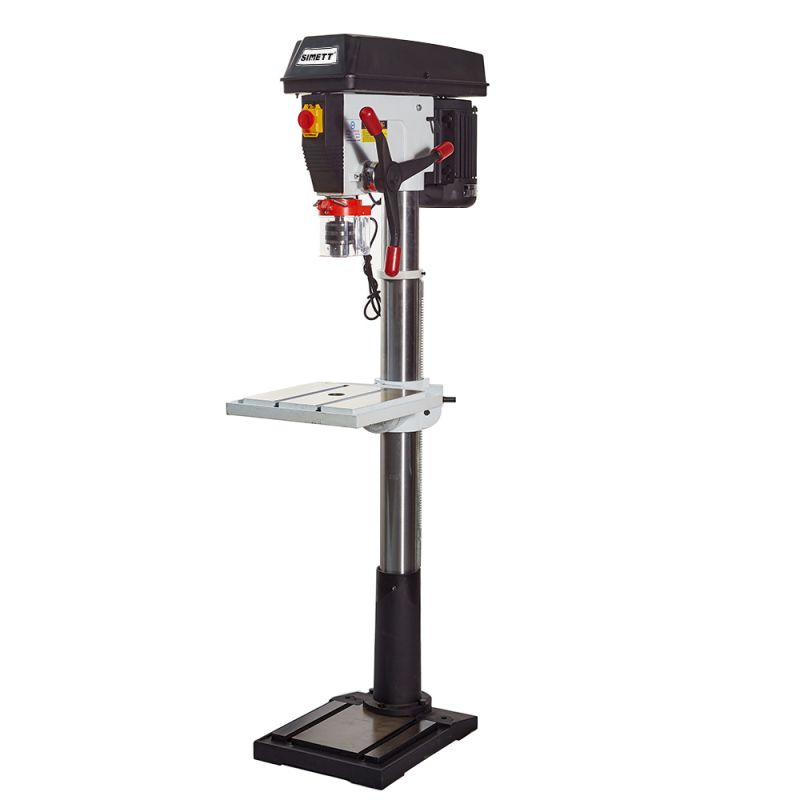

17-inch Floor Drill Press 25mm

Here comes the SIMETT 17-inch Floor Drill Press 25mm, a precision, easy-operation drill press for all your drilling needs. SIMETT is specialized in drill press for many years. We are striving to provide customers with high quality products and services, and create more value for customers. So let's check the details of our 17-inch Floor Drill Press 25mm now.

Send Inquiry

Product Description

Product Name: 17-inch Floor Drill Press 25mm
Model Number: ZJ5125
Voltage: 220-240V/ 120V (380V is also available)
Frequency: 50/ 60HZ
Max. Drilling Diameter: Φ25mm (1")
Motor Power: 1100W/ 1500W
Chuck Capacity: 5-20mm
Spindle Travel: 120mm
Spindle Speed Series: 12
Spindle Speed Range (In 50/ 60HZ): 150-2450/ 180-2940 RPM
Spindle Taper: MT3
Max. Distance from Spindle Axis to Surface of Column: 220mm
Max. Distance from Spindle End to Surface of Table: 765mm
Max. Distance from Spindle End to Surface of Base: 1225mm
Swing: 440mm
Table Size: 350*350mm
Base Size: 470*360mm
Column Diameter: Φ92mm
Machine Height: 1710mm
Net / Gross Weight: 106/ 110 KG
Packing Size: 1415*650*305mm

Feature

17-inch Floor Drill Press 25mm


*3/4" (20mm) Max. Chuck Capacity
*17" (440mm) Swing
*12 Spindle Speeds
-45°~45° Table Tilt L&R
Cast Iron Handle
Optional Chuck Guard And Micro-switch For CE Requirement

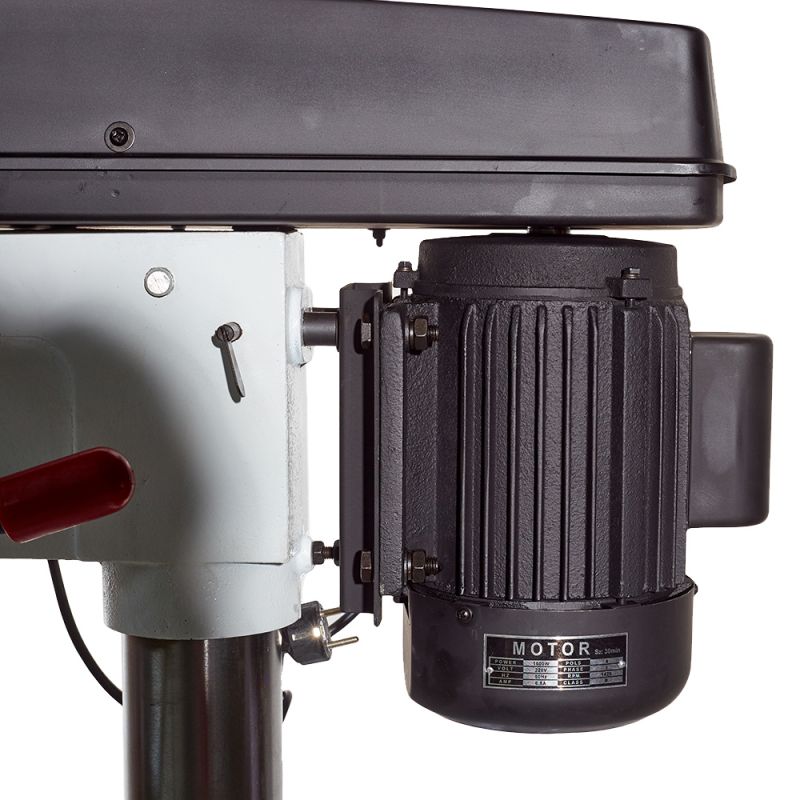

The SIMETT 17-inch Floor Drill Press 25mm is available in two options: 1100W and 1500W. It provides users with the flexibility to choose the power level that best suits their specific applications. Whether you're working on intricate woodworking projects or tackling heavy-duty metal drilling tasks, Simett has you covered.

The drill press operates at a voltage of 220-240V/120V, with the additional option of 380V for those requiring an even higher voltage capacity. The adaptability to different voltage levels ensures that the drill press can be seamlessly integrated into various work environments, making it a versatile solution for both home workshops and industrial settings.

One of the standout features of the 17-inch Floor Drill Press 25mm is its impressive chuck capacity, ranging from 5mm to 20mm. This broad range allows users to utilize a variety of drill bits, accommodating diverse drilling requirements. Whether you're working with small, intricate bits or larger ones for heavy-duty tasks, this drill press provides the versatility needed for a wide range of applications.

The spindle travel of 120mm further enhances the flexibility of this drill press, allowing for precise drilling depths. The twelve-speed series, with a spindle speed range of 150-2450/ 180-2940 RPM (in 50/ 60HZ), ensures that users can select the optimal speed for their specific materials and drilling applications. This adaptability makes the 17-inch Floor Drill Press 25mm suitable for a diverse array of materials, including wood, metal, and plastics.

The MT3 spindle taper is a testament to the drill press's commitment to stability and accuracy during operation. This taper design ensures that the drill bit is securely held in place, reducing vibration and enhancing the overall precision of the drilling process. Whether you're executing intricate designs or drilling through tough materials, the MT3 spindle taper is a key feature that sets this drill press apart.

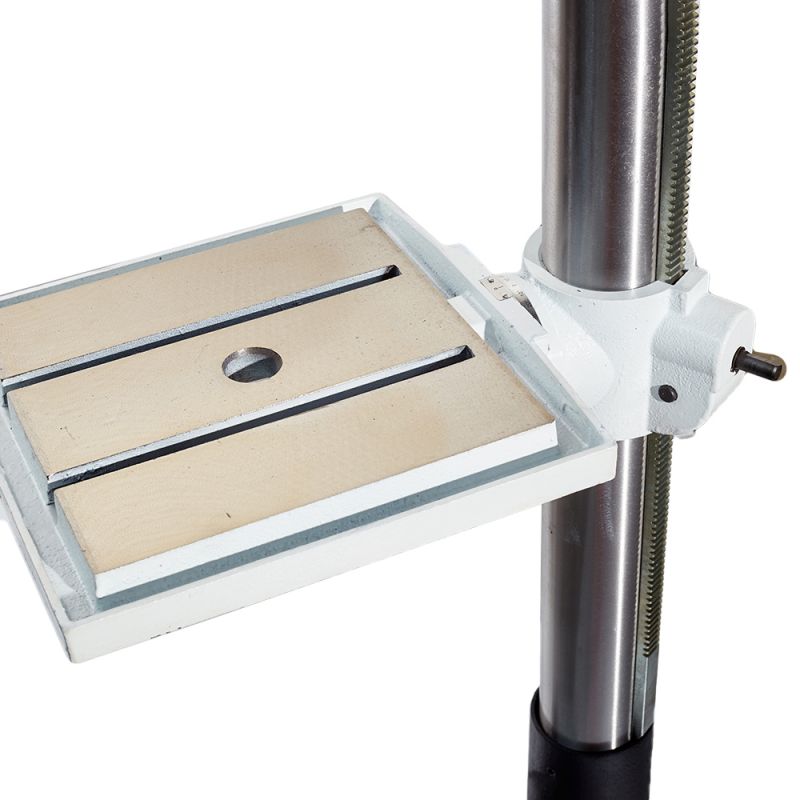

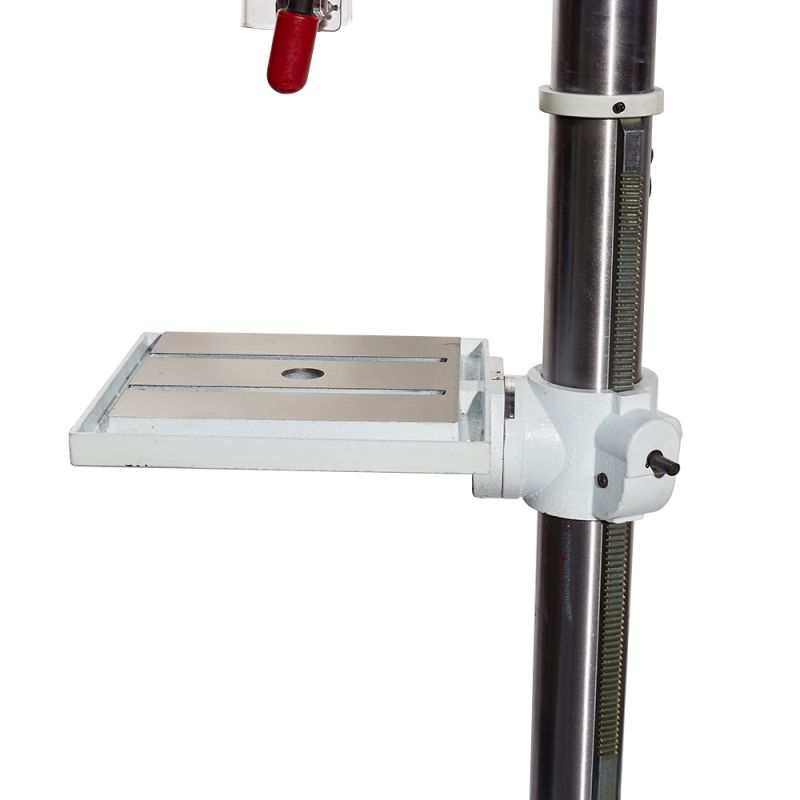

In terms of physical dimensions, the 17-inch Floor Drill Press 25mm boasts a swing of 440mm, providing ample space for maneuvering and positioning workpieces. The generously sized table (350*350mm) and base (470*360mm) further contribute to the drill press's usability, allowing users to work with a variety of materials and sizes comfortably.

The Φ92mm column diameter ensures the stability of the drill press during operation, preventing wobbling or deviation from the intended drilling path. This feature is crucial for achieving accurate and clean drill holes, especially when working on precision projects that demand the utmost attention to detail.

Consideration has also been given to the drill press's maximum distances, providing users with the flexibility to adapt to different work scenarios. The maximum distance from the spindle axis to the surface of the column is 220mm, while the maximum distance from the spindle end to the surface of the table and base are 765mm and 1225mm, respectively.

Adding to its ergonomic design, the 17-inch Floor Drill Press 25mm stands at a machine height of 1710mm. This thoughtful design element ensures that users can work comfortably and efficiently, minimizing strain during extended drilling sessions.

In conclusion, Simett's 17-inch Floor Drill Press 25mm is a powerhouse of a tool, combining precision, versatility, and durability. Whether you're a professional craftsman or a DIY enthusiast, this drill press is engineered to meet and exceed your expectations. Invest in Simett, and elevate your drilling experience to new heights.

Hot Tags: 17-inch Floor Drill Press 25mm, Manufacturer, Supplier, Factory, China, Wholesale, Buy, Customized, Made in China
