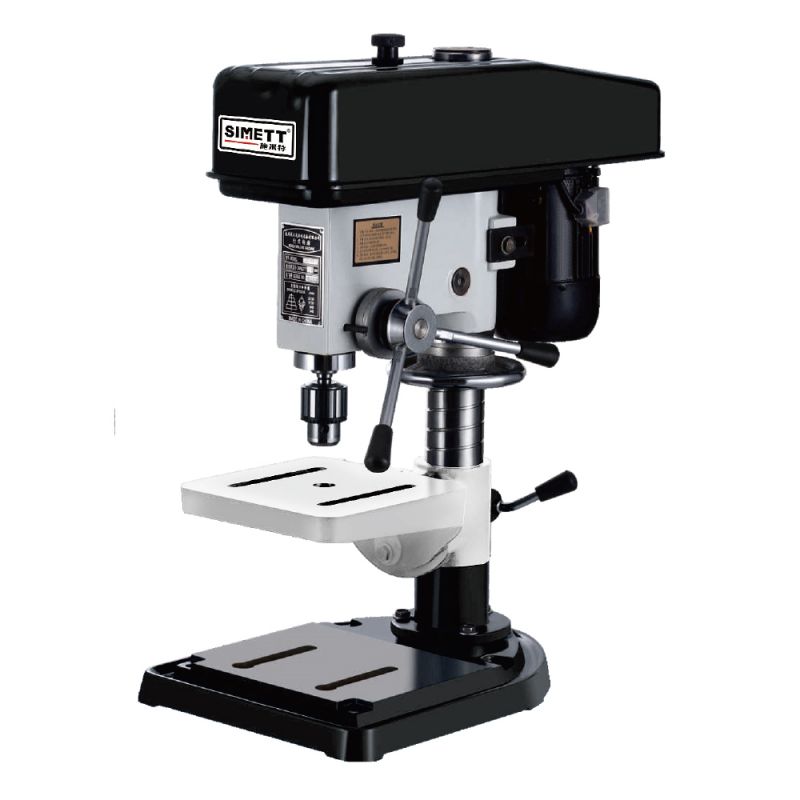

Industrial 15-inch Drilling Machine Series 16mm
Products
Industrial 15-inch Drilling Machine Series 16mm
The SIMETT Industrial 15-inch Drilling Machine Series 16mm offers a range of advantages that make it an excellent choice for various industrial and commercial applications. We are one of the famous China Benchtop Drill Press manufacturers and suppliers. Our factory specializes in manufacturing of Benchtop Drill Press. Welcome to buy Industrial 15-inch Drilling Machine Series 16mm from SIMETT. Every request from customers is being replied within 24 hours.
Model:Z516A-1
Send Inquiry
Product Description
| Product Specifications | |
| Product Name: | Industrial 15-inch Benchtop Drill Press 16mm |
| Model Number: | Z516A-1 |
| Voltage: | 220-240V/ 120V (380V is also available) |
| Frequency: | 50/ 60HZ |
| Max. Drilling Diameter: | Φ16mm |
| Motor Power: | 550W |
| Chuck Capacity: | 16mm |
| Spindle Travel: | 95mm |
| Spindle Speed Series: | 4 |
| Spindle Speed Range (In 50/ 60HZ): | 480-4100RPM |
| Spindle Taper: | B16/MT2 |
| Max. Distance from Spindle Axis to Surface of Column: | 193mm |
| Max. Distance from Spindle End to Surface of Table: | 290mm |
| Max. Distance from Spindle End to Surface of Base: | 500mm |
| Swing: | 386mm |
| Table Size: | 255*250mm |
| Base Size: | 465*350mm |
| Column Diameter: | Φ70mm |
| Machine Height: | 900mm |
| Net / Gross Weight: | 62/72 KG |
| Packing Size: | 70×40×85cm |
Feature
Industrial 15-inch Drilling Machine Series 16mm
*The spindle case, column and base are made of high-quality castings and treated by aging, which are stable, sturdy and durable.
*High precision and good rigidity:Widely used in various processing industries for punching, drilling, opening holes, single piece batch use
*Belt-driven machine with low noise, equipped with high-precision drill chuck.
As a professional Benchtop Drill Press manufacturer, you can rest assured to buy Industrial 15-inch Drilling Machine Series 16mm from our factory and SIMETT will offer you the best after-sale service and timely delivery.
Extended Spindle Travel: The 95mm spindle travel allows for a greater depth of drilling, which is particularly useful for tasks that require deep hole drilling or complex operations that involve multiple passes. This extended travel distance enhances the drill press's versatility and applicability across different projects and materials.
Precision and Rigidity: The design of the Industrial 15-inch Drilling Machine Series 16mm is engineered to provide high precision and rigidity, ensuring that drilling operations are accurate and consistent. This is crucial for industries that demand high-quality finishes and tight tolerances.
Intuitive Design: The layout and design of the Industrial 15-inch Drilling Machine Series 16mm are intended to be straightforward and easy to understand. This minimizes the learning curve for new users and ensures that even those with limited experience can operate the machine effectively and safely.
Clear Instructions and Guidelines: Comprehensive user manuals and clear instructions provided by the manufacturer guide users through the setup, operation, and maintenance of the drill press. This ensures that operators can confidently use the Industrial 15-inch Drilling Machine Series 16mm and troubleshoot any issues that may arise.
Adjustable Speeds: The Industrial 15-inch Drilling Machine Series 16mm may offer variable speed control, allowing users to match the spindle speed to the requirements of the task at hand. This adaptability ensures optimal performance and precision for a variety of drilling operations.
Extended Spindle Travel: The 95mm spindle travel allows for a greater depth of drilling, which is particularly useful for tasks that require deep hole drilling or complex operations that involve multiple passes. This extended travel distance enhances the drill press's versatility and applicability across different projects and materials.
Precision and Rigidity: The design of the Industrial 15-inch Drilling Machine Series 16mm is engineered to provide high precision and rigidity, ensuring that drilling operations are accurate and consistent. This is crucial for industries that demand high-quality finishes and tight tolerances.
Intuitive Design: The layout and design of the Industrial 15-inch Drilling Machine Series 16mm are intended to be straightforward and easy to understand. This minimizes the learning curve for new users and ensures that even those with limited experience can operate the machine effectively and safely.
Clear Instructions and Guidelines: Comprehensive user manuals and clear instructions provided by the manufacturer guide users through the setup, operation, and maintenance of the drill press. This ensures that operators can confidently use the Industrial 15-inch Drilling Machine Series 16mm and troubleshoot any issues that may arise.
Adjustable Speeds: The Industrial 15-inch Drilling Machine Series 16mm may offer variable speed control, allowing users to match the spindle speed to the requirements of the task at hand. This adaptability ensures optimal performance and precision for a variety of drilling operations.
