| Product Specifications | |

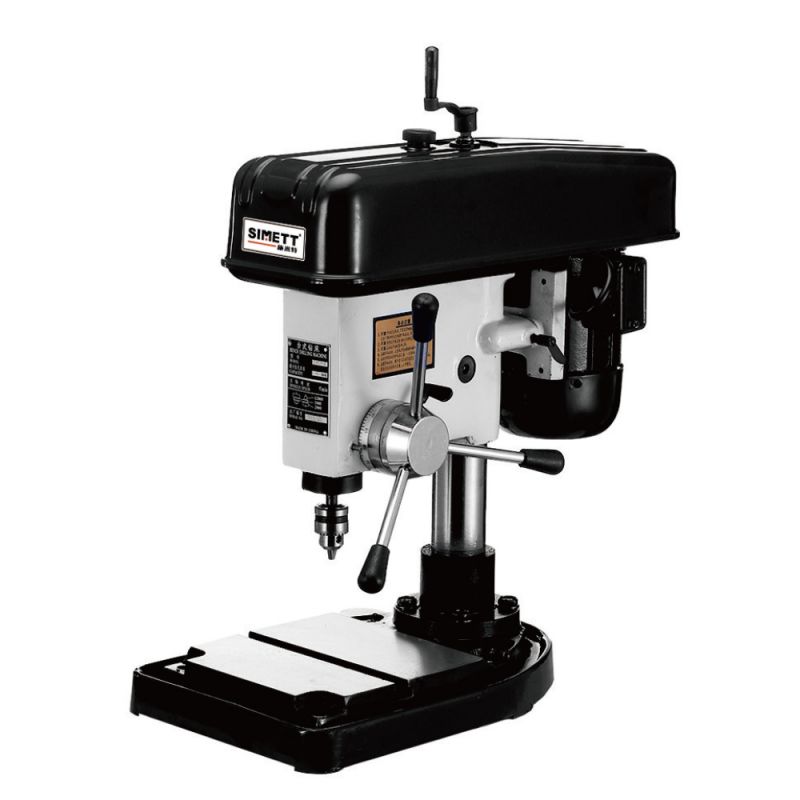

| Product Name: | Industrial 11-inch Benchtop Drill Press 6mm |
| Model Number: | Z406B |
| Voltage: | 220-240V/ 120V (380V is also available) |
| Frequency: | 50/ 60HZ |
| Max. Drilling Diameter: | Φ6mm |
| Motor Power: | 250W |
| Chuck Capacity: | 6mm |
| Spindle Travel: | 65mm |
| Spindle Speed Series: | 3 |
| Spindle Speed Range (In 50/ 60HZ): | 2000-12000 RPM |
| Spindle Taper: | B10 |
| Max. Distance from Spindle Axis to Surface of Column: | 140mm |
| Max. Distance from Spindle End to Surface of Table: | / |
| Max. Distance from Spindle End to Surface of Base: | 250mm |
| Swing: | 280mm |
| Table Size: | / |
| Base Size: | 390*260mm |
| Column Diameter: | Φ50mm |
| Machine Height: | 610mm |
| Net / Gross Weight: | 38/40KG |
| Packing Size: | 63×32×56cm |
*High speed (up to 12000 rpm), widely used in instrument,
meter and camera industries.
*The spindle box, column and base are made of high quality castings with aging treatment, which are stable, sturdy and durable.
*Belt-driven machine with low noise, equipped with high-precision drilling chuck; + The spindle case, column and base are made of high-quality castings, treated by aging, stable and durable.
*Hand-operated head lifting.
