Product Specifications | |

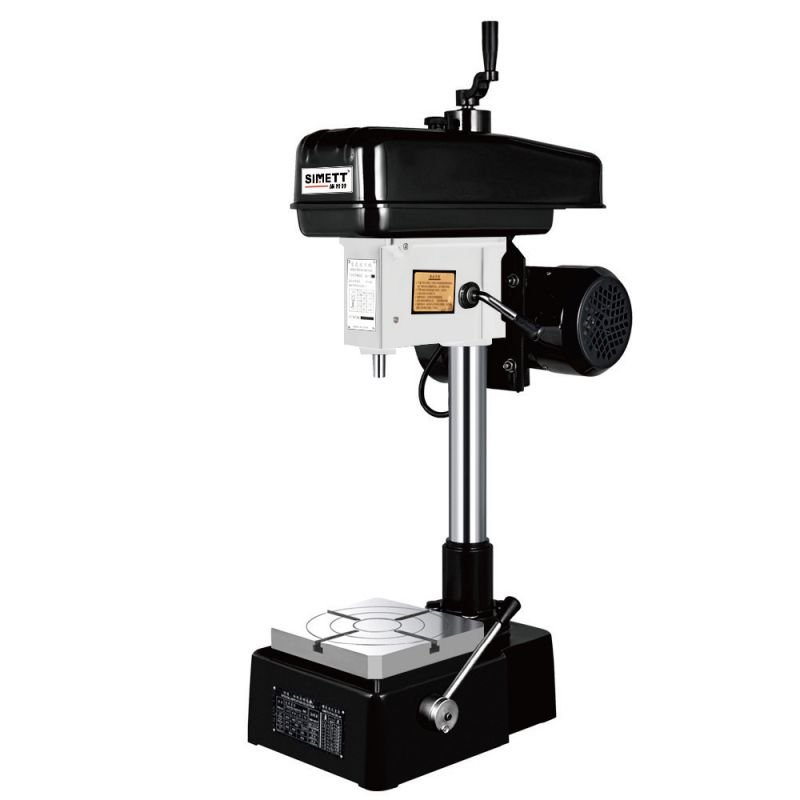

Product Name: | Industrial 11-inch Benchtop Tapping Machine M12 |
Model Number: | SWJ-10B |
Voltage: | 220-240V/ 120V (380V is also available) |
Frequency: | 50/60HZ |
Maximum borehole diameter (Steel/Castings)(mm) | M12 |
Motor Power: | 550W |
Spindle Travel: | 50mm |
Spindle Speed Series: | 3 |
Spindle Speed Range (In 50/ 60HZ): | 250,480,800 RPM |
Spindle Taper: | B16 |
Max. Distance from Spindle Axis to Surface of Column: | 140mm |
Max. Distance from Spindle End to Surface of Table: | 265mm |
Max. Distance from Spindle End to Surface of Base: | / |
Swing: | 280mm |
Table Size: | 2300x200mm |
Base Size: | 365x254mm |
Column Diameter: | Φ50mm |
Machine Height: | 767mm |
Net / Gross Weight: | 60/70KG |
Packing Size: | 58x37x70cm |
*The mechanical friction clutch realizes the positive and negative rotation of the spindle.
*The main shaft has commutation impact and small vibration.
*Three gears adjustable speed, stable speed, suitable for batch tapping.
