CNC Single Servo Drill Press

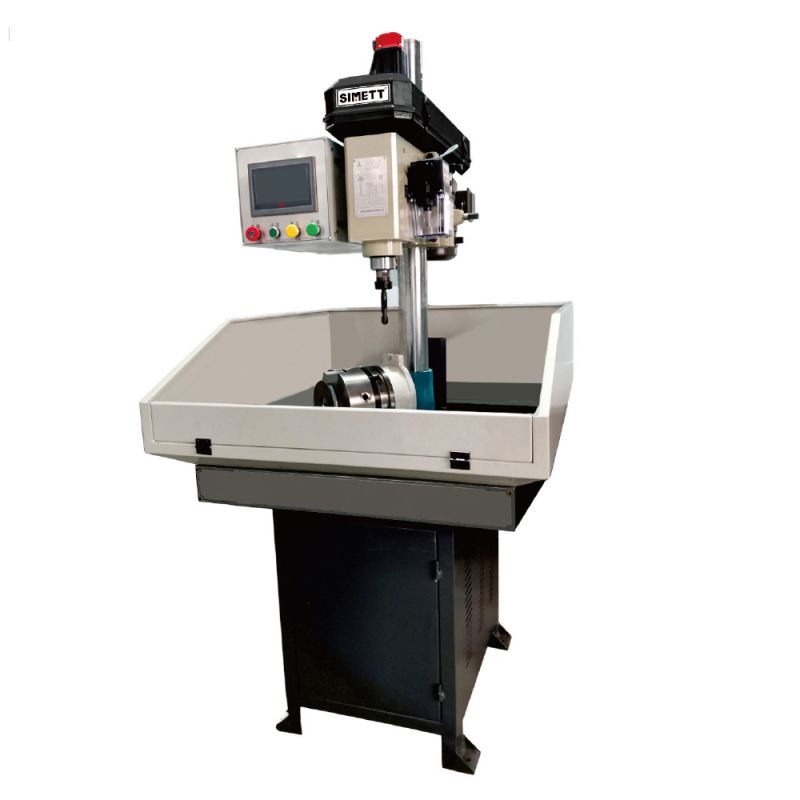

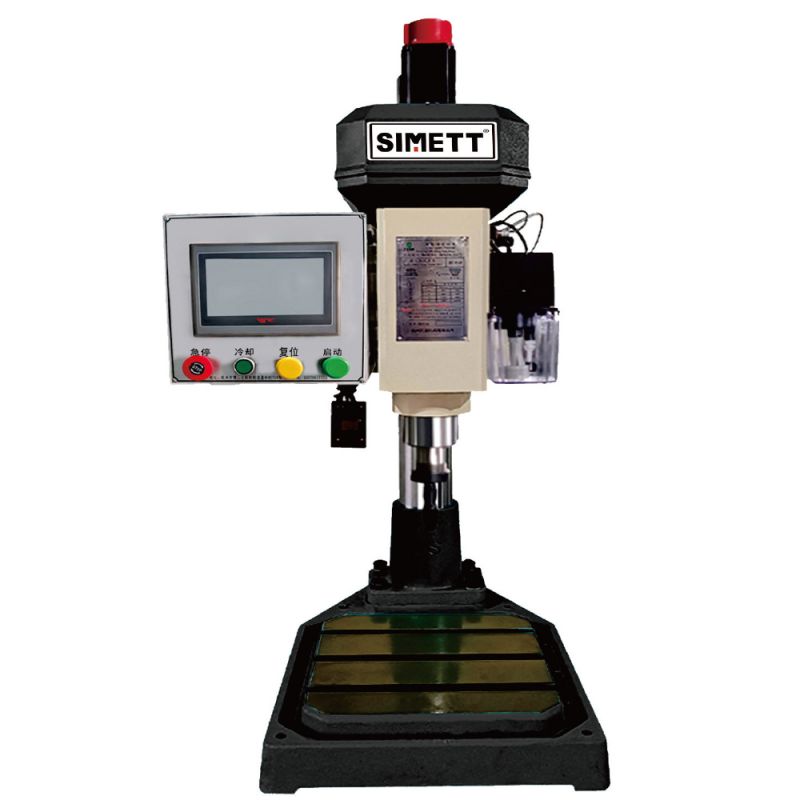

The ZK-25 is a CNC Single Servo Drill Press from SIMETT, a precision-engineered drill designed for industrial applications where accuracy and efficiency in various drilling tasks make it an ideal choice for professional manufacturers.

Send Inquiry

Product Description


Product Specifications

Product Name: SIMETT CNC Single Servo Drill Press
Model Number: ZK-25

Single Servo
Max. Drilling Diameter: 25mm
Max. Tapping Diameter: -
Max. Spindle Travel: 140mm
Spindle Dimension: Mt2
Spindle Speed: 540/800/1250/1800RPM
Column Diameter: 95mm
Max. Distance from Spindle End to Surface of Base: 700mm
Base Size: 320*340mm
Spindle Motor: 2.2KW
Feed Servo Motor: 1.0KW
Feeding Method: High Precision Ball Screws
Net Weight: 245KG

The ZK-25 is a CNC single servo drill from SIMETT, a precision-engineered drill designed for industrial applications where accuracy and efficiency in various drilling tasks make it an ideal choice for professional manufacturers.
-Single Servo System: The machine is controlled by a single servo system that provides precise motion control for the spindle, resulting in high-accuracy drilling. This system ensures that the drilling depth and position are repeatable and consistent, which is crucial for maintaining the quality of the workpieces.
-Drilling Capacity: The ZK-25 is capable of drilling holes with a diameter of up to 25mm. This capacity allows the machine to handle a wide range of drilling tasks, from small precision holes to larger diameter applications.
-Spindle Stroke: The 140mm stroke length of the main spindle allows for extended reach, enabling the ZK-25 to drill deep holes in a single operation without the need for repositioning or multiple passes.
-Spindle Taper: The Mt2 spindle taper is a common industry standard, ensuring that the ZK-25 can accommodate a variety of tooling options. This compatibility is important for workshops that require flexibility in tool selection.
-Precision Feed Mechanism: The high-precision ball screw feed mechanism is designed to provide smooth and accurate movement in the Z-axis, which is critical for maintaining hole accuracy and surface finish quality.
-Spindle Motor Power: The 2.2kW motor is a robust power source for the spindle, capable of delivering sufficient torque for a variety of drilling materials. This power ensures that the ZK-25 can handle both light and heavy-duty drilling tasks.
-Spindle Speed Options: The spindle speed is adjustable across four settings: 540, 800, 1250, and 1800 RPM. This range allows the operator to select the optimal speed for the material being drilled and the specific requirements of the job, such as speed for production efficiency or lower speed for precision in harder materials.
-Versatility in Material Processing: The variable spindle speeds and robust motor allow the ZK-25 to process a wide range of materials, from softwoods and plastics to harder materials like steel and alloys.
-Improved Hole Quality: The combination of the single servo system, precision feed mechanism, and adjustable spindle speeds contributes to the production of high-quality holes with minimal deviation from the desired specifications.
-Efficiency and Effort-saving

The automation features of the SIMETT CNC Single Servo Drill Press can significantly increase production efficiency by reducing setup times and the need for constant operator supervision. This allows for faster production cycles and higher throughput. The SIMETT CNC drill press incorporates energy-saving features in its design, ensuring that it performs well while using less energy compared to traditional models. Especially when operating at partial loads or during standby periods, it can help reduce the overall operational costs.

-User-friendly Operation: This drill press comes with an easy-to-navigate interface that simplifies the operation. It supports various programming options, allowing for the efficient setup of even intricate drilling tasks, thus improving operational efficiency. Automated machines like the SIMETT CNC drill press can reduce the risk of accidents by minimizing the need for operators to be in close proximity to the drilling action, especially for repetitive tasks. The SIMETT CNC Single Servo Drill Press is to come with after-sales maintenance and support services, ensuring that the machine operates at peak performance and is quickly attended to in case of issues.
The SIMETT ZK-25 is a well-rounded CNC Single Servo Drill Press that offers a combination of power, precision, and flexibility, making it suitable for a variety of industrial applications where high-quality drilling is required.
