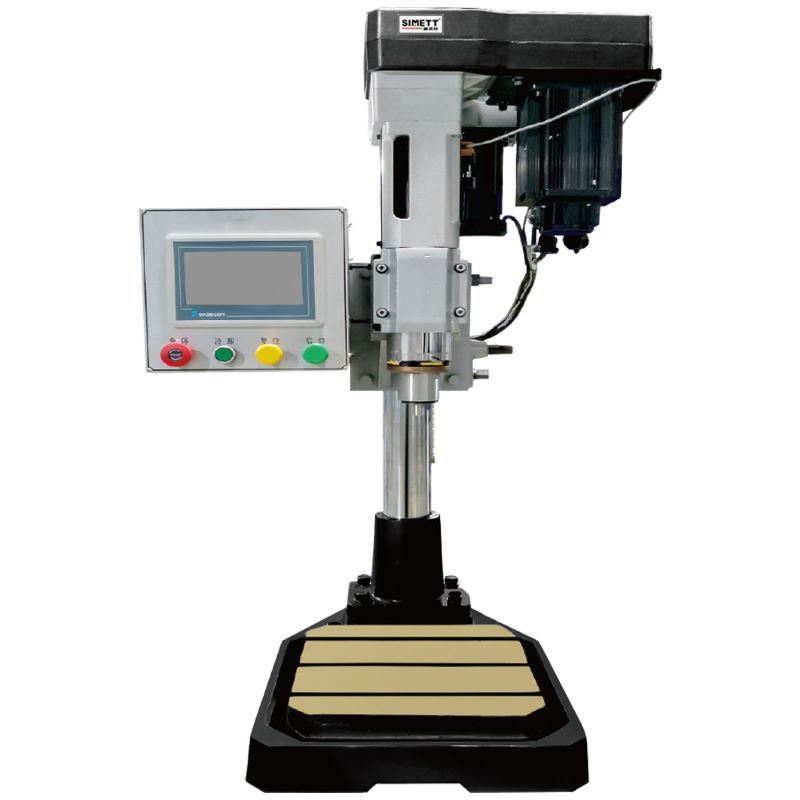

CNC Double Servo Drilling and Tapping Machine

The SIMETT CNC Double Servo Drilling and Tapping Machine, model ZK-09S, is a compact yet powerful addition to the SIMETT lineup, designed for precision and versatility in a smaller footprint, with a lot of the benefits of its double servo motor system compared to a single servo motor.

Model:ZK-09S

Send Inquiry

Product Description

Product Specifications



Product Name: SIMETT CNC Double Servo Drilling and Tapping Machine
Model Number: ZK-09S
Motor Type: Double Servo
Max. Drilling Diameter: 8mm
Max. Tapping Diameter: M8
Max. Spindle Travel: 90mm
Spindle Dimension: JT6/ER20
Spindle Speed: 0-2500RPM
Column Diameter: 70mm
Max. Distance from Spindle End to Surface of Base: 50-500mm
Max. Distance from Spindle Centre to Column Centre: 200mm
Base Size: 220*230mm
Spindle Motor: 1.8KW
Feed Servo Motor: 0.4KW
Feeding Method: High Precision Ball Screws Shaft



Feature


The SIMETT CNC Double Servo Drilling and Tapping Machine, model ZK-09S, is a compact yet powerful addition to the SIMETT lineup, designed for precision and versatility in a smaller footprint, with a lot of the benefits of its double servo motor system compared to a single servo motor.

Double Servo Motors: The ZK-09S is equipped with double servo motor, one for the spindle and one for the feed axis. This configuration offers enhanced control and precision over the machine's movements, particularly beneficial for complex operations requiring simultaneous control over multiple axes.

Max Drilling Diameter: The SIMETT CNC Double Servo Drilling and Tapping Machine is capable of drilling holes up to 8mm in diameter, making it suitable for precision applications in various industries.

Max Tapping Diameter: With a maximum tapping diameter of M8, the SIMETT CNC Double Servo Drilling and Tapping Machine ZK-09S is well-suited for creating threads in smaller components.

Spindle Taper: The JT6/ER20 spindle taper offers a secure and precise interface for tool holding, accommodating a variety of tool types.

Feed Mechanism: The high-precision ball screw feed mechanism ensures smooth and accurate movement in the Z-axis, critical for maintaining hole accuracy and surface finish quality.

Max Distance from Spindle Centre to Column Centre: The 200mm distance allows for a compact design while still providing adequate working space for machining operations.

Spindle Motor Power: A powerful 1800W spindle motor delivers high torque and precision for drilling and tapping tasks.

Feed Servo Motor Power: The 400W feed servo motor provides precise control over the feed axis, contributing to the overall accuracy and efficiency of the machine.

Spindle Speed Range: The spindle speed is adjustable from 0 to 2500 RPM, offering a wide range of speed options to suit different materials and machining requirements.

Enhanced Control: Double servo motor allows for more complex movements and simultaneous control over multiple axes, which can improve the machine's ability to perform intricate tasks.

Increased Precision: With independent control over the spindle and feed axis, the SIMETT CNC Double Servo Drilling and Tapping Machine ZK-09S can achieve higher precision in both drilling and tapping operations.

Better Torque Utilization: The separate motors for the spindle and feed axis can provide better torque utilization, ensuring that each motor operates within its optimal performance range.

Reduced Wear and Tear: By distributing the workload between two motors, the SIMETT CNC Double Servo Drilling and Tapping Machine ZK-09S can reduce the wear and tear on individual components, potentially extending the machine's service life.

Improved Efficiency: The double servo system can perform certain operations more efficiently, as each motor can be optimized for its specific task.

Versatility: The SIMETT CNC Double Servo Drilling and Tapping Machine ZK-09S's double servo system provides greater flexibility in handling a variety of machining tasks, from simple to complex.

In conclusion, the SIMETT ZK-09S CNC Double Servo Drilling and Tapping Machine offers a unique combination of precision, versatility, and compact design. Its double servo motor system sets it apart from single servo machines, providing enhanced control and efficiency for a wide range of applications in industries that demand high-quality machining with a focus on smaller parts and intricate operations.
