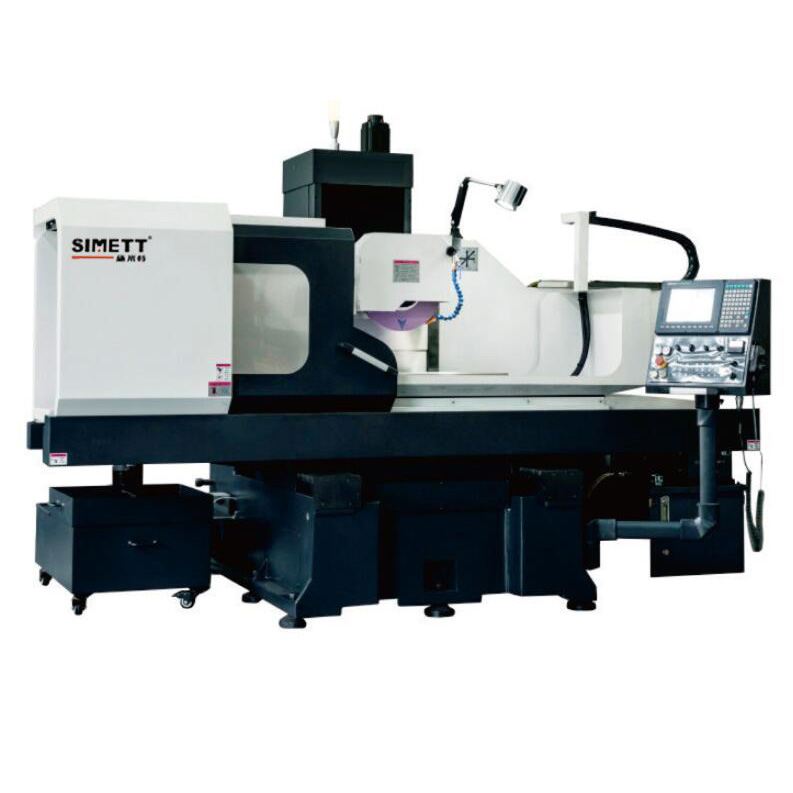

The SIMETT Saddle Surface Grinding Machine SMT-SGM410P/F exemplifies high-precision engineering, presenting a unique set of features that distinguish the CNC Saddle Surface Grinding Machine 410 within the market.
High Precision Machining:The CNC Saddle Surface Grinding Machine 410 is capable of achieving a surface roughness of 0.08μm, which means it can be used for processing workpieces that require extremely high precision in surface finish, such as precision mechanical parts and molds.
Product Specifications
|
Machine Name: Saddle Suface Grinding Machine
|
|
Machine Model:
|
SMT-SGM410P/F
|
Machining Capacity
|
Table top size (mm):
|
400*1000
|
Max. Travel (mm):
|
440*1000
|
The Max. distance of spindle center (mm):
|
650
|
The Max. load-bearing of table top (kg):
|
700
|
The parallelism with table top(mm):
|
300:≤0.003mm
|
Roughness:
|
Ra0.08
|
Left-right movement
|
Left-right guideway structure:
|
Double V Hard guideway
|
Driven type:
|
oil hydraulic
|
Speed (m/min):
|
3-25
|
Forward-backward movement
|
Forward-backward guideway structure:
|
Line guideway 35#
|
Driven type:
|
Ball screw shaft + servo motor
|
Feed rate (per scale) (mm):
|
0.001/0.01/0.1
|
MPG (per rotation) (mm):
|
0.1/1/10
|
Speed (mm/min):
|
0-1200
|
Up-down movement
|
Up-down guideway structure:
|
Line guideway 35#
|
Driven type:
|
Ball screw shaft + servo motor
|
Feed rate (per scale) (mm):
|
0.001/0.01/0.02
|
MPG (per rotation) (mm):
|
0.1/1/2
|
Speed (mm/min):
|
1200
|
Spindle
|
The outside diameter of spindle (mm):
|
120 (OP:150)
|
Sanding wheel size (mm):
|
Φ400*Φ127*40
|
Spindle motor (KW):
|
7.5 (OP:11)
|
Working site area (length*width*height) (cm):
|
440*230*230
|
Packing size (length*width*height) (cm):
|
450*200*260
|
Weight
|
Net Weight (kg):
|
5000
|
Gross Weight (kg):
|
5400
|
CNC Control:With computer numerical control, it can automate complex grinding tasks, reduce human operation errors, and improve production efficiency and consistency.
Axis Travel:The X-axis travel of 440mm and Y-axis travel of 1000mm provide a larger range for processing, accommodating the grinding needs of workpieces of various sizes and enhancing the CNC Saddle Surface Grinding Machine 410's flexibility.
Table Size:The CNC Saddle Surface Grinding Machine 410's table size of 300*700mm is suitable for the grinding of medium and small-sized workpieces. It meets certain processing area requirements while maintaining the compactness and convenience of the machine.
Drive System:The combination of a ball screw shaft and servo motor provides precise positioning and motion control, which is crucial for ensuring grinding accuracy and reproducibility.
Spindle Motor: A 7.5KW spindle motor provides sufficient power to handle grinding of workpieces of various hardness and sizes, enhancing the machine's processing capabilities.
Warranty Policy: A one-year warranty on core components of the CNC Saddle Surface Grinding Machine 410 offers customers peace of mind and protection after purchase, reducing concerns about subsequent maintenance.
Wide Applicability: Suitable for various industrial fields such as manufacturing, automotive, and aerospace, indicating the CNC Saddle Surface Grinding Machine 410's strong market adaptability and broad application prospects.
The SIMETT name has become synonymous with quality and reliability, a reputation earned through a steady stream of high-quality offerings, dependable customer service, commitment to product excellence, and proactive adaptation to market shifts."
