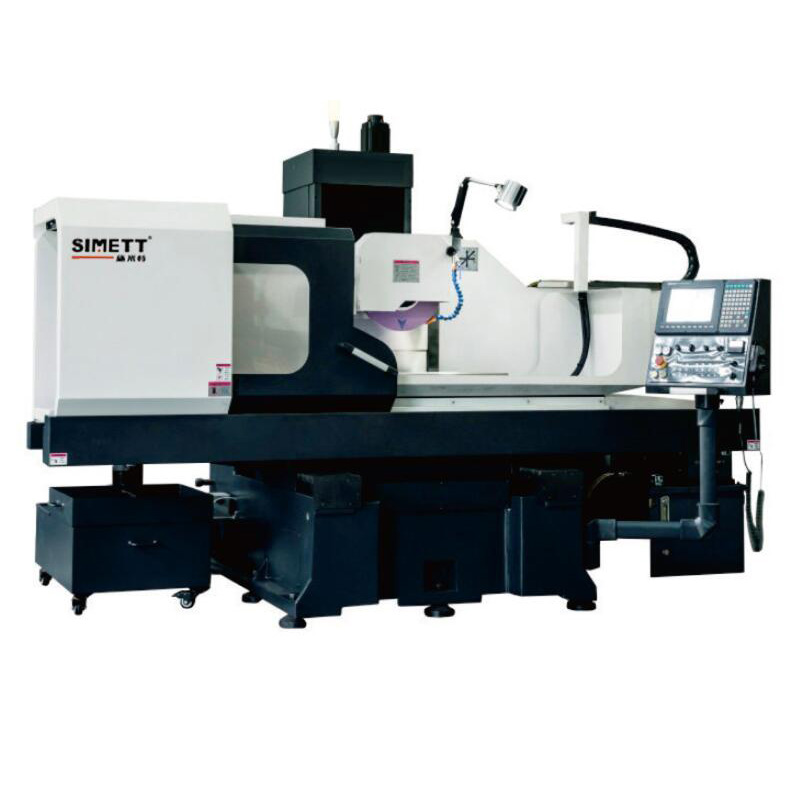

CNC Saddle Surface Grinding Machine 307

SIMETT has successfully established itself as a reputable brand of CNC Saddle Surface Grinding Machine 307. This positive reputation is not just a random occurrence but the result of consistent efforts to provide high-quality products and services to its customers.

Send Inquiry

Product Description


The trustworthiness of the brand has been built over time through various means such as delivering on promises, offering reliable customer support, ensuring CNC Saddle Surface Grinding Machine 307 quality, and constantly innovating to meet the evolving needs of the marketplace. The SIMETT Saddle Surface Grinding Machine SMT-SGM307P/F stands as a pinnacle of precision engineering, boasting a suite of advantages that distinctly elevate its stature in the competitive machinery landscape. With its superior performance capabilities and meticulous design, this CNC Saddle Surface Grinding Machine 307 not only meets but exceeds the rigorous expectations of the industry, ensuring that it occupies a position of prominence within the marketplace.

Product Specifications
Machine Name: Saddle Suface Grinding Machine
Machine Model: SMT-SGM307P/F
Machining Capacity
Table top size (mm): 300*700
Max. Travel (mm): 340*830
The Max. distance of spindle center (mm): 650
The Max. load-bearing of table top (kg): 500
The parallelism with table top(mm): 300:≤0.003mm
Roughness: Ra0.08
Left-right movement
Left-right guideway structure: Double V Hard guideway
Driven type: oil hydraulic
Speed (m/min): 3-25
Forward-backward movement
Forward-backward guideway structure: Line guideway 35#
Driven type: Ball screw shaft + servo motor
Feed rate (per scale) (mm): 0.001/0.01/0.1
MPG (per rotation) (mm): 0.1/1/10
Speed (mm/min): 0-1200
Up-down movement
Up-down guideway structure: Line guideway 35#
Driven type: Ball screw shaft + servo motor
Feed rate (per scale) (mm): 0.001/0.01/0.02
MPG (per rotation) (mm): 0.1/1/2
Speed (mm/min): 1200
Spindle
The outside diameter of spindle (mm): 120 (OP:150)
Sanding wheel size (mm): Φ400*Φ127*40
Spindle motor (KW): 7.5 (OP:11)
Working site area (length*width*height) (cm): 320*250*230
Packing size (length*width*height) (cm): 340*200*260
Weight
Net Weight (kg): 3900
Gross Weight (kg): 4300

Ultra-high Precision Machining: The machine is capable of achieving a surface roughness of 0.08μm, making it suitable for precision grinding applications that demand exceptionally smooth surfaces.
Advanced Drive System: CNC Saddle Surface Grinding Machine 307 is equipped with a ball screw shaft and servo motor, this system ensures high-precision positioning and efficient operation, which is vital for the accuracy and speed of the grinding process.

Optimized Guideway Structure: Featuring a double-V hard guideway structure, it provides high rigidity and stability, essential for the machine's long-term precision maintenance.
Powerful Spindle Motor: With a 7.5KW spindle motor, CNC Saddle Surface Grinding Machine 307 guarantees robust power output and stable operation, suitable for heavy-duty grinding tasks.
Moderate Processing Dimensions: The worktable size of 300*700mm is ideal for medium and small-sized workpieces, accommodating a broad spectrum of grinding requirements.
Flexible Axis Travel: Offering an X-axis travel of 340mm and Y-axis travel of 830mm, CNC Saddle Surface Grinding Machine 307 provides ample movement range to suit different workpiece dimensions.
Overall, SIMETT's positive reputation in the marketplace is a testament to its commitment to excellence and customer satisfaction. It serves as a valuable asset to the company, contributing to its sustainability, growth, and ability to compete effectively in the ever-changing landscape of the market.
