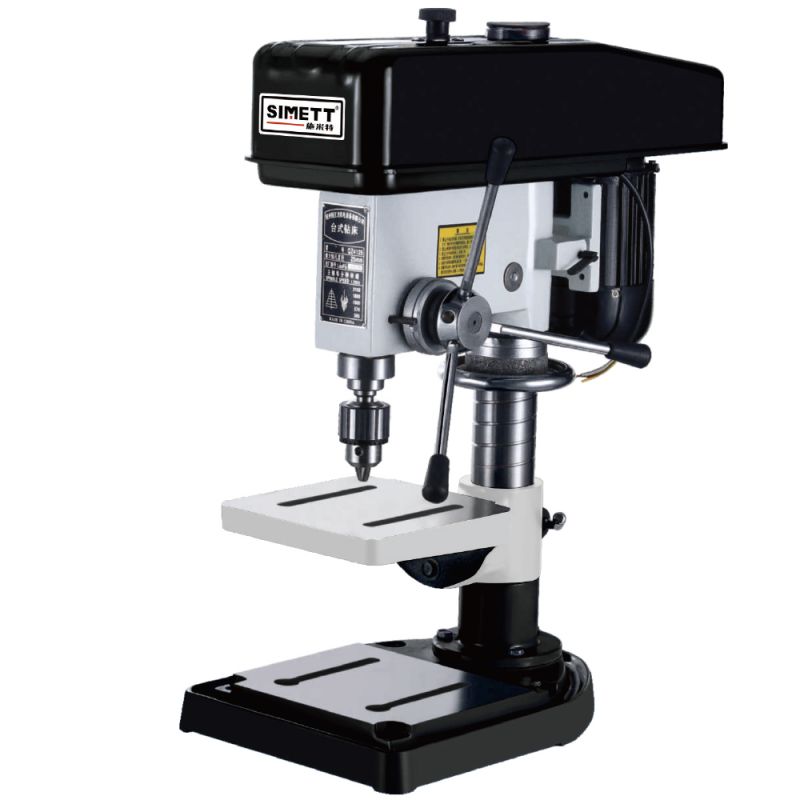

25mm Industrial 19-inch Drilling Machine Series

With SIMETT's comprehensive introduction, gain a better understanding of the 25mm Industrial 19-inch Drilling Machine Series. We are devoted to your enlightenment regarding this machinery. We are looking forward to the continued collaboration with our customers to build a more prosperous future together. The SIMETT Industrial 19-inch Drilling Machine Series 25mm is designed to provide a range of benefits that enhance its utility in various industrial applications

Send Inquiry

Product Description


Product Specifications
Product Name: 25mm Industrial 19-inch Drilling Machine Series
Model Number: Z4125
Voltage: 220-240V/ 120V (380V is also available)
Frequency: 50/ 60HZ
Max. Drilling Diameter: Φ25mm
Motor Power: 1100W
Chuck Capacity: 25mm
Spindle Travel: 125mm
Spindle Speed Series: 5
Spindle Speed Range (In 50/ 60HZ): 365-3150RPM
Spindle Taper: B16/MT3
Max. Distance from Spindle Axis to Surface of Column: 240mm
Max. Distance from Spindle End to Surface of Table: 460mm
Max. Distance from Spindle End to Surface of Base: 680mm
Swing: 480mm
Table Size: 320*280mm
Base Size: 595*375mm
Column Diameter: Φ85mm
Machine Height: 1170mm
Net / Gross Weight: 110/130KG
Packing Size: 79×45×107cm

Feature

25mm Industrial 19-inch Drilling Machine Series


*The spindle box body, column and base are made of high quality castings, which are stable, firm and durable after aging treatment.
*It has high precision and good rigidity, and is widely used in drilling, drilling, drilling and single-piece batch use in various processing industries.
*The belt drive machine has low noise and high precision drill chuck.



Greater Depth Drilling: The 25mm Industrial 19-inch Drilling Machine Series's 125mm spindle travel allows for drilling deeper holes in a single operation, which is particularly useful for tasks that require penetration through thicker materials.
Enhanced Versatility: This extended travel distance means the 25mm Industrial 19-inch Drilling Machine Series can handle a wider variety of projects that require deeper drilling depths, increasing its applicability in different workshop scenarios.
Improved Efficiency: With the ability to drill deeper without needing to reposition the workpiece or change the drill bit as frequently, the overall workflow is more efficient and time-saving.
Accuracy and Repeatability: The longer spindle travel, when paired with accurate depth-stop mechanisms, ensures that deep holes can be drilled to precise depths, which is critical for quality and repeatability in production work.
Reduced Operator Fatigue: Fewer adjustments and resettings mean less physical effort for the operator, especially during prolonged use, leading to reduced fatigue and potential for error.
Better Adaptability: The 25mm Industrial 19-inch Drilling Machine Series can be more readily adapted to specialized tasks that require deep hole drilling, such as making large diameter holes or countersinking operations.
Increased Safety: The longer spindle travel can minimize the need for operators to reach into the 25mm Industrial 19-inch Drilling Machine Series to change settings, reducing the risk of accidents and injuries.
Compatibility with Tooling: The B16/MT3 spindle taper, combined with the 125mm spindle travel, ensures compatibility with a broad range of tooling, making it easier to find suitable accessories for various drilling needs.
Longer Tool Life: The ability to complete deep hole drilling in fewer passes can result in less wear on the drill bits, potentially extending their service life and reducing tooling costs.
Suitable for Mass Production: In environments where mass production is required, the SIMETT 25mm Industrial 19-inch Drilling Machine Series can keep up with the demand due to its ability to handle repetitive deep hole drilling tasks without compromising on precision.
In summary, the SIMETT 25mm Industrial 19-inch Drilling Machine Series drilling capacity and spindle travel provide significant advantages in terms of versatility, efficiency, accuracy, and safety. These features make it a valuable tool for a wide range of industrial applications where deep hole drilling is required.
