13-inch Benchtop Drill Press 16mm

Here comes the SIMETT 13-inch Benchtop Drill Press 16mm, a precision, easy-operation drill press for all your drilling needs. SIMETT is specialized in drill press for many years. We are striving to provide customers with high quality products and services, and create more value for customers. So let's check the details of our 13-inch Benchtop Drill Press 16mm now.

Send Inquiry

Product Description


Product Specifications
Product Name: 13-inch Benchtop Drill Press 16mm
Model Number: ZJQ4116
Voltage: 220-240V/ 120V (380V is also available)
Frequency: 50/ 60HZ
Max. Drilling Diameter: Φ16mm (5/8")
Motor Power: 375W/ 450W/ 550W
Chuck Capacity: 3-16mm
Spindle Travel: 80mm
Spindle Speed Series: 16
Spindle Speed Range (In 50/ 60HZ): 180-2770/ 220-3320 RPM
Spindle Taper: MT2
Max. Distance from Spindle Axis to Surface of Column: 162.5mm
Max. Distance from Spindle End to Surface of Table: 450mm
Max. Distance from Spindle End to Surface of Base: 630mm
Swing: 325mm
Table Size: Φ290mm
Base Size: 420*250mm
Column Diameter: Φ72mm
Machine Height: 980mm
Net / Gross Weight: 42/ 45 KG
Packing Size: 770*450*260mm

Feature

13-inch Benchtop Drill Press 16mm


*5/8" (16mm) Max. Chuck Capacity
*13" (325mm) Swing
*16 Spindle Speeds
-45°~45° Table Tilt L&R
Optional Chuck Guard And Micro-switch For CE Requirement


The SIMETT 13-inch Benchtop Drill Press 16mm is available in three options: 375W, 450W and 550W. It provides users with the flexibility to choose the power level that best suits their specific applications. Whether you're working on intricate woodworking projects or tackling heavy-duty metal drilling tasks, Simett has you covered.

The drill press operates at a voltage of 220-240V/120V, with the additional option of 380V for those requiring an even higher voltage capacity. The adaptability to different voltage levels ensures that the drill press can be seamlessly integrated into various work environments, making it a versatile solution for both home workshops and industrial settings.

One of the standout features of the 13-inch Benchtop Drill Press 16mm is its impressive chuck capacity, ranging from 3mm to 16mm. This broad range allows users to utilize a variety of drill bits, accommodating diverse drilling requirements. Whether you're working with small, intricate bits or larger ones for heavy-duty tasks, this drill press provides the versatility needed for a wide range of applications.

The spindle travel of 80mm further enhances the flexibility of this drill press, allowing for precise drilling depths. The sixteen-speed series, with a spindle speed range of 180-2770/ 220-3320 RPM (in 50/ 60HZ), ensures that users can select the optimal speed for their specific materials and drilling applications. This adaptability makes the 13-inch Benchtop Drill Press 16mm suitable for a diverse array of materials, including wood, metal, and plastics.

The MT2 spindle taper is a testament to the drill press's commitment to stability and accuracy during operation. This taper design ensures that the drill bit is securely held in place, reducing vibration and enhancing the overall precision of the drilling process. Whether you're executing intricate designs or drilling through tough materials, the MT2 spindle taper is a key feature that sets this drill press apart.

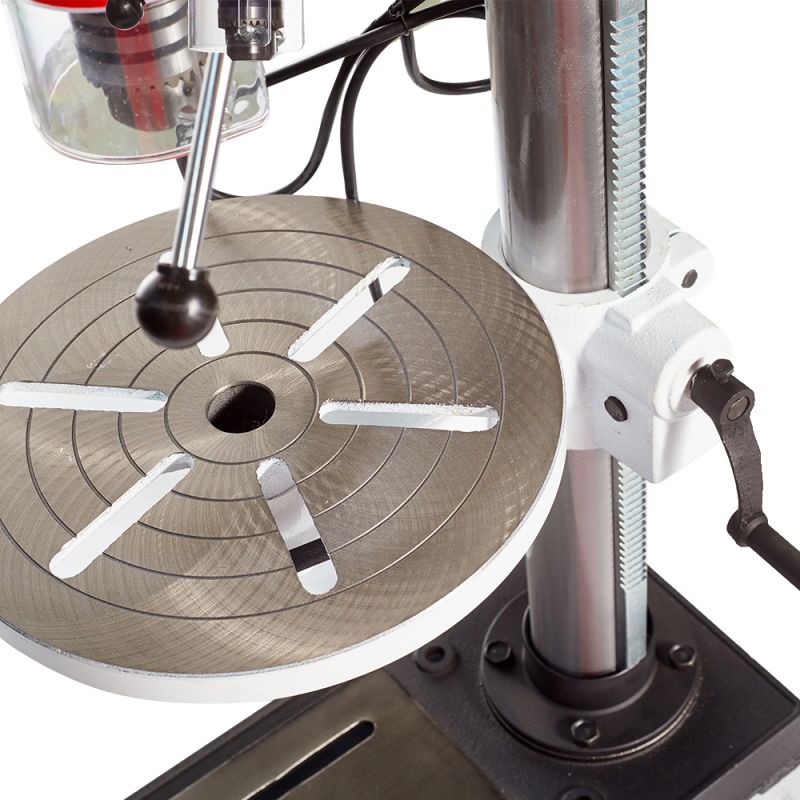

In terms of physical dimensions, the 13-inch Benchtop Drill Press 16mm boasts a swing of 325mm, providing ample space for maneuvering and positioning workpieces. The generously sized table (Φ290mm) and base (420*250mm) further contribute to the drill press's usability, allowing users to work with a variety of materials and sizes comfortably.

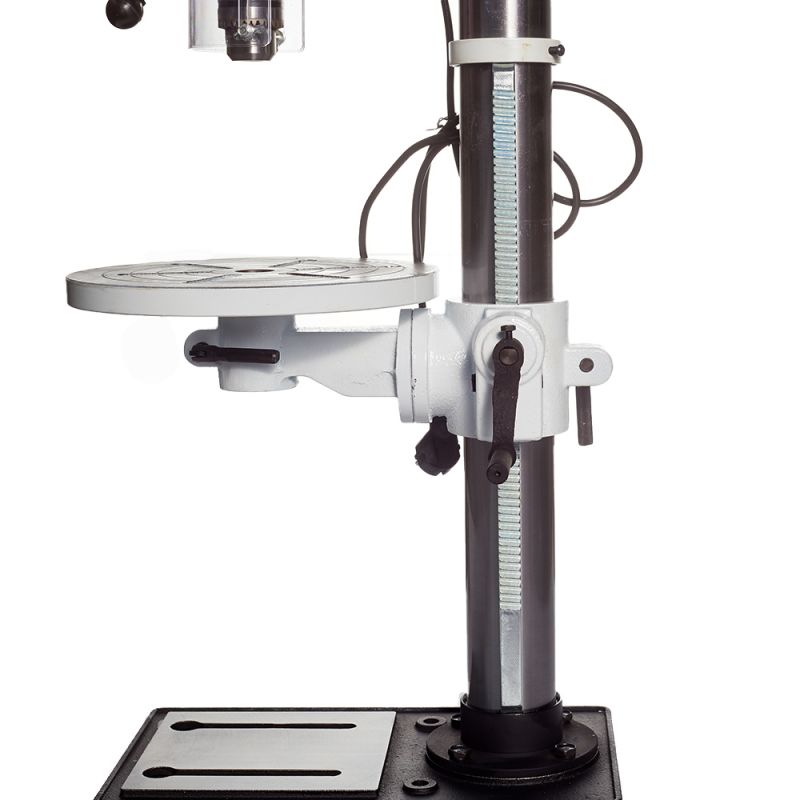

The Φ72mm column diameter ensures the stability of the drill press during operation, preventing wobbling or deviation from the intended drilling path. This feature is crucial for achieving accurate and clean drill holes, especially when working on precision projects that demand the utmost attention to detail.

Consideration has also been given to the drill press's maximum distances, providing users with the flexibility to adapt to different work scenarios. The maximum distance from the spindle axis to the surface of the column is 162.5mm, while the maximum distance from the spindle end to the surface of the table and base are 450mm and 630mm, respectively.

Adding to its ergonomic design, the 13-inch Benchtop Drill Press 16mm stands at a machine height of 980mm. This thoughtful design element ensures that users can work comfortably and efficiently, minimizing strain during extended drilling sessions.

In conclusion, Simett's 13-inch Benchtop Drill Press 16mm is a powerhouse of a tool, combining precision, versatility, and durability. Whether you're a professional craftsman or a DIY enthusiast, this drill press is engineered to meet and exceed your expectations. Invest in Simett, and elevate your drilling experience to new heights.
