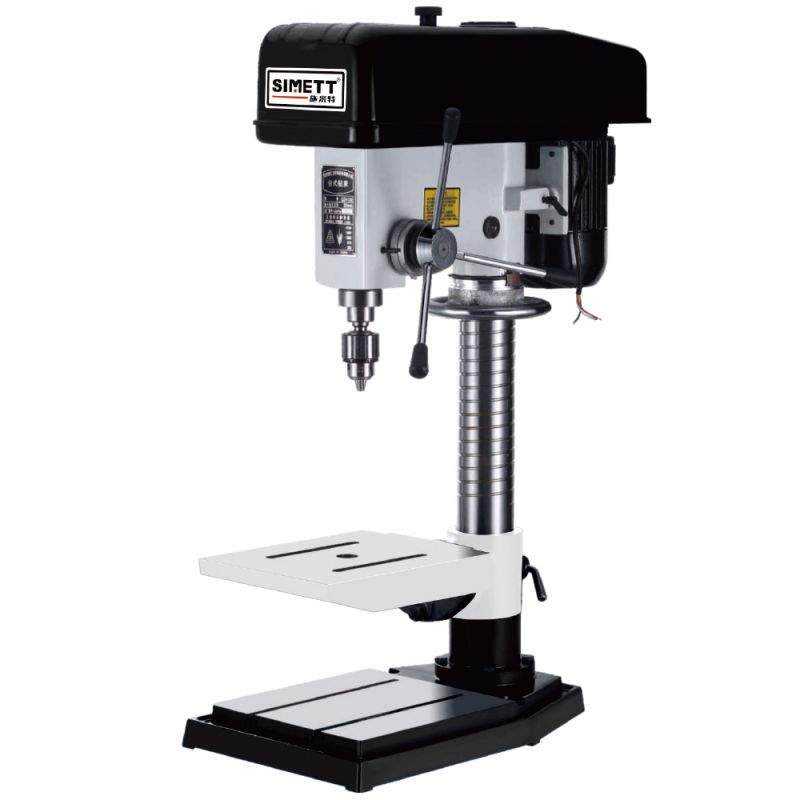

Industrial 19-inch Drilling Machine Series 32mm
SIMETT is a strong supplier of high-quality Industrial 19-inch Drilling Machine Series 32mm to meet specific production needs, such as precision machining or high-performance operations, by providing equipment that stands out from competitors' products in terms of performance, durability, and efficiency.
Send Inquiry
Product Description
| Product Specifications | |
| Product Name: | Industrial 19-inch Benchtop Drill Press 32mm |
| Model Number: | Z4132 |
| Voltage: | 220-240V/ 120V (380V is also available) |
| Frequency: | 50/ 60HZ |
| Max. Drilling Diameter: | Φ32mm |
| Motor Power: | 1100W |
| Chuck Capacity: | 32mm |
| Spindle Travel: | 110mm |
| Spindle Speed Series: | 5 |
| Spindle Speed Range (In 50/ 60HZ): | 365-3150RPM |
| Spindle Taper: | B16/MT3 |
| Max. Distance from Spindle Axis to Surface of Column: | 240mm |
| Max. Distance from Spindle End to Surface of Table: | 420mm |
| Max. Distance from Spindle End to Surface of Base: | 690mm |
| Swing: | 480mm |
| Table Size: | 320*280mm |
| Base Size: | 595*375mm |
| Column Diameter: | Φ85mm |
| Machine Height: | 1170mm |
| Net / Gross Weight: | 112/132KG |
| Packing Size: | 79×45×107cm |
Feature
Industrial 19-inch Drilling Machine Series 32mm
*The spindle box body, column and base are made of high quality castings, which are stable, firm and durable after aging treatment.
*It has high precision and good rigidity, and is widely used in drilling, drilling, drilling and single-piece batch use in various processing industries.
*The belt drive machine has low noise and high precision drill chuck.
The SIMETT Industrial 19-inch Drilling Machine Series 32mm is a worthwhile and precise drilling machine designed specifically for a variety of manufacturing processes.
Size and Design: This Industrial 19-inch Drilling Machine Series 32mm features a 19-inch worktable size, and its design is aimed at providing a stable operational platform for use in a multitude of machining situations.
Accuracy: Industrial 19-inch Drilling Machine Series 32mm equipped with a high-precision chuck, the machine ensures accurate positioning and firm clamping during the drilling process, which is crucial for completing intricate work.
Construction: The Industrial 19-inch Drilling Machine Series 32mm is made from high-quality castings, which contribute to the machine's durability and stability. The excellent casting of the spindle, body, column, and base are key factors in ensuring the equipment's long-term stable operation.
Aplicability: With a maximum drilling diameter of 32mm, this Industrial 19-inch Drilling Machine Series 32mm is capable of handling a range of medium-scale drilling tasks, suitable for a variety of materials that require hole processing up to 32mm in diameter.
Brand Reputation: As a company that manufactures a range of industrial machinery, SIMETT's Industrial 19-inch Drilling Machine Series 32mm is typically subject to stringent quality control measures to ensure the reliability and durability of the equipment.
In summary, by choosing the SIMETT Industrial 19-inch Drilling Machine Series 32mm, you will acquire an industrial-grade drilling machine that is structurally solid and precise in performance, suitable for medium-duty work. If you require further technical specifications or details on service support, it is recommended to consult us directly.Get to know the Industrial 19-inch Drilling Machine Series 32mm through our detailed introduction. SIMETT is dedicated to enhancing your understanding of this equipment. We warmly welcome our valued customers, both new and old, to join us in forging ahead towards a shared prosperous future.
Size and Design: This Industrial 19-inch Drilling Machine Series 32mm features a 19-inch worktable size, and its design is aimed at providing a stable operational platform for use in a multitude of machining situations.
Accuracy: Industrial 19-inch Drilling Machine Series 32mm equipped with a high-precision chuck, the machine ensures accurate positioning and firm clamping during the drilling process, which is crucial for completing intricate work.
Construction: The Industrial 19-inch Drilling Machine Series 32mm is made from high-quality castings, which contribute to the machine's durability and stability. The excellent casting of the spindle, body, column, and base are key factors in ensuring the equipment's long-term stable operation.
Aplicability: With a maximum drilling diameter of 32mm, this Industrial 19-inch Drilling Machine Series 32mm is capable of handling a range of medium-scale drilling tasks, suitable for a variety of materials that require hole processing up to 32mm in diameter.
Brand Reputation: As a company that manufactures a range of industrial machinery, SIMETT's Industrial 19-inch Drilling Machine Series 32mm is typically subject to stringent quality control measures to ensure the reliability and durability of the equipment.
In summary, by choosing the SIMETT Industrial 19-inch Drilling Machine Series 32mm, you will acquire an industrial-grade drilling machine that is structurally solid and precise in performance, suitable for medium-duty work. If you require further technical specifications or details on service support, it is recommended to consult us directly.Get to know the Industrial 19-inch Drilling Machine Series 32mm through our detailed introduction. SIMETT is dedicated to enhancing your understanding of this equipment. We warmly welcome our valued customers, both new and old, to join us in forging ahead towards a shared prosperous future.
