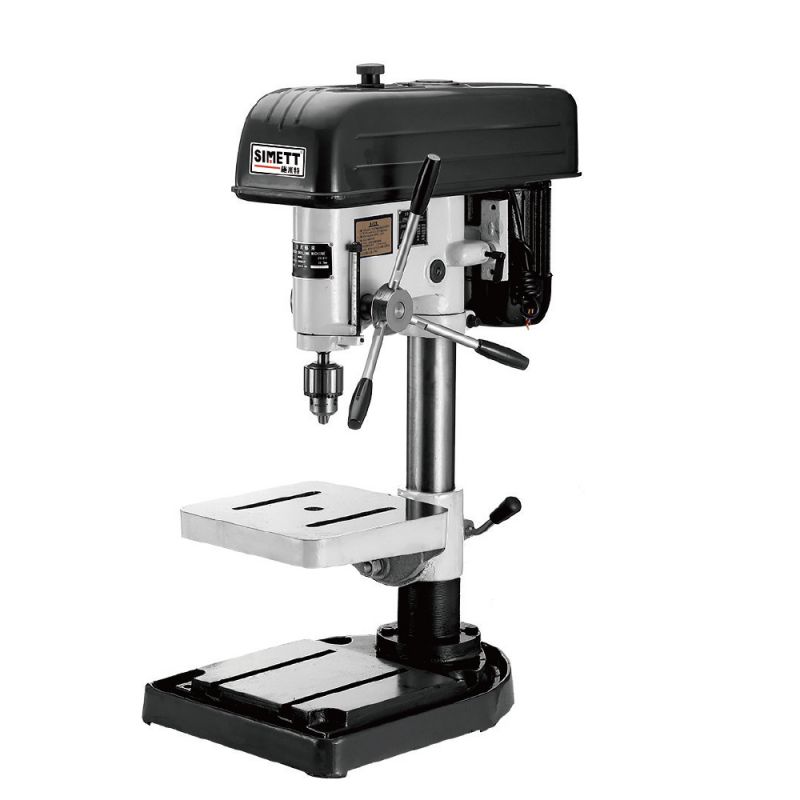

16mm Industrial 15-inch Drilling Machine Series
Products
16mm Industrial 15-inch Drilling Machine Series
As the professional manufacturer, SIMETT would like to provide you 16mm Industrial 15-inch Drilling Machine Series. SIMETT is a company that manufactures a range of industrial equipment and machinery, including drill presses, milling machines, and other tools used in manufacturing and processing industries.
Model:Z516-2
Send Inquiry
Product Description
| Product Specifications | |
| Product Name: | Industrial 15-inch Benchtop Drill Press 16mm |
| Model Number: | Z516-2 |
| Voltage: | 220-240V/ 120V (380V is also available) |
| Frequency: | 50/ 60HZ |
| Max. Drilling Diameter: | Φ16mm |
| Motor Power: | 550W |
| Chuck Capacity: | 16mm |
| Spindle Travel: | 100mm |
| Spindle Speed Series: | 5 |
| Spindle Speed Range (In 50/ 60HZ): | 365-3150RPM |
| Spindle Taper: | B16/MT2 |
| Max. Distance from Spindle Axis to Surface of Column: | 193mm |
| Max. Distance from Spindle End to Surface of Table: | 330mm |
| Max. Distance from Spindle End to Surface of Base: | 560mm |
| Swing: | 386mm |
| Table Size: | 255*250mm |
| Base Size: | 490*360mm |
| Column Diameter: | Φ70mm |
| Machine Height: | 980mm |
| Net / Gross Weight: | 78/91KG |
| Packing Size: | 75×40×95cm |
Feature
16mm Industrial 15-inch Drilling Machine Series
*The spindle box body, column and base are made of high quality castings,which are stable, firm and durable after aging treatment.
*lt has high precision and good rigidity, and is widely used in drilling, drilling.drilling and single-piece batch use in various processing industries.
*The belt drive machine has low noise and high precision drill chuck.
SIMETT is known for its high-quality 16mm Industrial 15-inch Drilling Machine Series that are designed to meet the demanding requirements of industrial applications.
Spindle Speed Series: The speed series of 5 indicates that the 16mm Industrial 15-inch Drilling Machine Series has a range of spindle speeds suitable for different materials and operations, allowing users to select the optimal speed for their specific task.
Chuck Capacity: With a chuck capacity of 16mm, this 16mm Industrial 15-inch Drilling Machine Series can accommodate larger drill bits and other accessories, enabling it to handle a wide range of drilling diameters up to its maximum limit. Spindle Taper: The 100mm spindle taper is designed for deep drilling capabilities, providing ample travel for the spindle to penetrate workpieces of varying depths.
Accurate Drilling: The combination of a precise chuck and adjustable spindle speed ensures accurate and controlled drilling, essential for maintaining the integrity of the workpiece and achieving quality results.
Industrial Build Quality: This 16mm Industrial 15-inch Drilling Machine Series is constructed with industrial-grade materials and components, ensuring stability and longevity even under heavy use.
Stable and Firm: The solid construction provides stability during operation, reducing vibration and ensuring precise drilling results.
Durable: The aging treatment further strengthens the material, making it more resistant to wear and tear, which is crucial for maintaining accuracy over an extended period.
High-Quality Construction: The use of high-quality castings for the spindle box body, column, and base ensures a 16mm Industrial 15-inch Drilling Machine Series that can withstand the pressures and demands of industrial drilling tasks.
SIMETT's commitment to quality and precision makes their 16mm Industrial 15-inch Drilling Machine Series and other machinery essential tools for workshops and processing facilities that require high-performance equipment for drilling tasks. Their ability to adapt to various tasks with minimal setup ensures they are valuable assets in any setting where precision drilling is a regular task.
Spindle Speed Series: The speed series of 5 indicates that the 16mm Industrial 15-inch Drilling Machine Series has a range of spindle speeds suitable for different materials and operations, allowing users to select the optimal speed for their specific task.
Chuck Capacity: With a chuck capacity of 16mm, this 16mm Industrial 15-inch Drilling Machine Series can accommodate larger drill bits and other accessories, enabling it to handle a wide range of drilling diameters up to its maximum limit. Spindle Taper: The 100mm spindle taper is designed for deep drilling capabilities, providing ample travel for the spindle to penetrate workpieces of varying depths.
Accurate Drilling: The combination of a precise chuck and adjustable spindle speed ensures accurate and controlled drilling, essential for maintaining the integrity of the workpiece and achieving quality results.
Industrial Build Quality: This 16mm Industrial 15-inch Drilling Machine Series is constructed with industrial-grade materials and components, ensuring stability and longevity even under heavy use.
Stable and Firm: The solid construction provides stability during operation, reducing vibration and ensuring precise drilling results.
Durable: The aging treatment further strengthens the material, making it more resistant to wear and tear, which is crucial for maintaining accuracy over an extended period.
High-Quality Construction: The use of high-quality castings for the spindle box body, column, and base ensures a 16mm Industrial 15-inch Drilling Machine Series that can withstand the pressures and demands of industrial drilling tasks.
SIMETT's commitment to quality and precision makes their 16mm Industrial 15-inch Drilling Machine Series and other machinery essential tools for workshops and processing facilities that require high-performance equipment for drilling tasks. Their ability to adapt to various tasks with minimal setup ensures they are valuable assets in any setting where precision drilling is a regular task.
