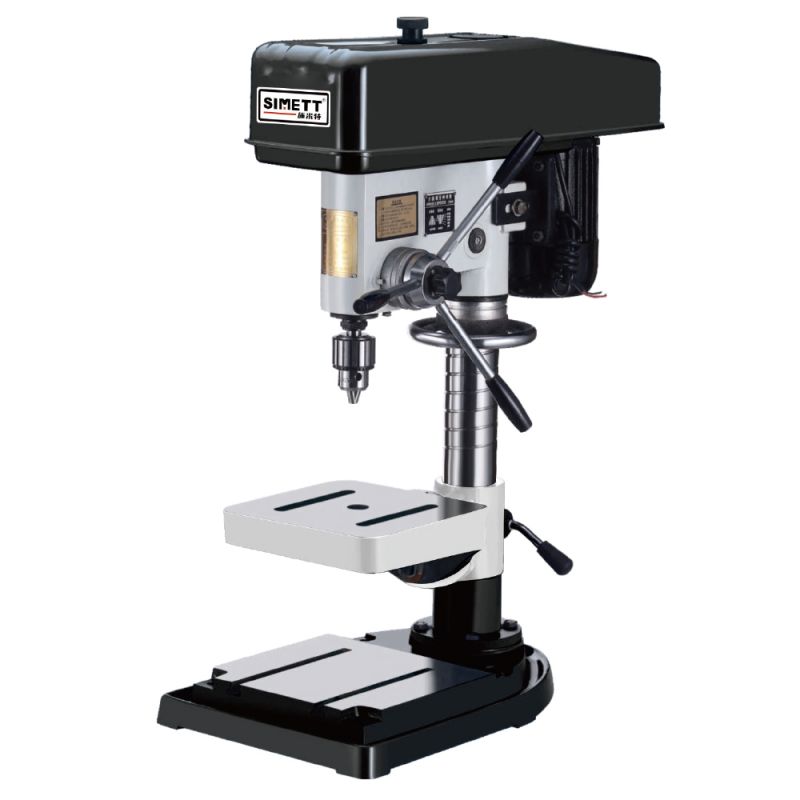

Industrial 15-inch 16mm Benchtop Drill Press
  • Industrial 15-inch 16mm Benchtop Drill Press - 0 Industrial 15-inch 16mm Benchtop Drill Press - 0

Industrial 15-inch 16mm Benchtop Drill Press

SIMETT has demonstrated strong strength in supply chain management and product innovation to meet market needs by offering a wide range of high quality industrial equipment.The SIMETT Industrial 15-inch 16mm Benchtop Drill Press stands out for its ability to tackle a broader range of drilling tasks. Here's why the drilling capacity is a significant feature

Send Inquiry

Product Description


Product Specifications
Product Name: Industrial 15-inch 16mm Benchtop Drill Press
Model Number: Z4116
Voltage: 220-240V/ 120V (380V is also available)
Frequency: 50/ 60HZ
Max. Drilling Diameter: Φ16mm
Motor Power: 550W
Chuck Capacity: 16mm
Spindle Travel: 110mm
Spindle Speed Series: 5
Spindle Speed Range (In 50/ 60HZ): 480-4100RPM
Spindle Taper: B16
Max. Distance from Spindle Axis to Surface of Column: 193mm
Max. Distance from Spindle End to Surface of Table: 320mm
Max. Distance from Spindle End to Surface of Base: 560mm
Swing: 386mm
Table Size: 260*250mm
Base Size: 490*350mm
Column Diameter: Φ70mm
Machine Height: 1040mm
Net / Gross Weight: 65/78KG
Packing Size: 75×40×95cm

Feature

Industrial 15-inch 16mm Benchtop Drill Press


*The spindle box body, column and base are made of high quality castings, which are stable, firm and durable after aging treatment.
*It has high precision and good rigidity, and is widely used in drilling, drilling, drilling and single-piece batch use in various processing industries.
*The belt drive machine has low noise and high precision drill chuck.



Wider Range of Applications: The 16mm capacity allows the drill press to handle larger holes, making Industrial 15-inch 16mm Benchtop Drill Press suitable for more applications, including those that require drilling into thicker materials.
Greater Material Variety: This capacity enables the Industrial 15-inch 16mm Benchtop Drill Press to work with a wider variety of materials, from dense hardwoods and metals to large plastic components.
Efficiency in Large-Diameter Drilling: The ability to drill up to 16mm holes means fewer changes of drill bits are needed for certain projects, streamlining the workflow and increasing efficiency.
Professional-Grade Performance: A 16mm drilling capacity is often found in professional-grade tools, indicating that this Industrial 15-inch 16mm Benchtop Drill Press is designed to meet the demands of professional workshops and industrial applications.
Reduced Need for Multiple Machines: With this increased capacity, there's less need to invest in multiple drilling machines for different hole sizes, saving space and cost in the workshop.
Versatility in Project Types: Whether it's for woodworking projects that require large dowel holes, metalworking tasks that need through-holes for assembly, or even drilling into concrete for larger fasteners, the 16mm capacity covers it all.
Longer Service Life: The Industrial 15-inch 16mm Benchtop Drill Press is likely built to handle the increased demands of 16mm drilling, which means it's constructed with a durable design that can withstand the rigors of regular use.
Cost-Effectiveness: Despite its high drilling capacity, the benchtop design of this Industrial 15-inch 16mm Benchtop Drill Press makes it a cost-effective solution compared to larger, floor-standing models with similar capabilities.
In essence, SIMETT Industrial 15-inch 16mm Benchtop Drill Press is a feature that significantly broadens its utility and performance, making it a valuable asset for any workshop that needs to handle a wide range of drilling tasks with precision and efficiency.
