Product Specifications | |

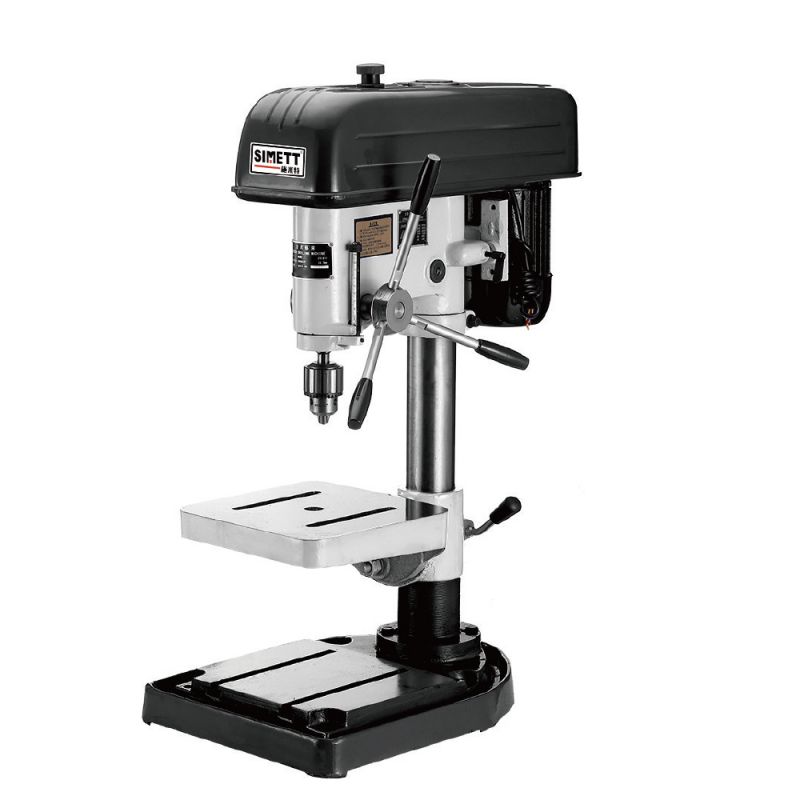

Product Name: | Industrial 15-inch 12.7mm Benchtop Drill Press |
Model Number: | Z512-2 |
Voltage: | 220-240V/ 120V (380V is also available) |
Frequency: | 50/ 60HZ |
Max. Drilling Diameter: | Φ12.7mm |
Motor Power: | 550W |
Chuck Capacity: | 12.7mm |
Spindle Travel: | 100mm |
Spindle Speed Series: | 5 |
Spindle Speed Range (In 50/ 60HZ): | 365-3150RPM |
Spindle Taper: | B16 |
Max. Distance from Spindle Axis to Surface of Column: | 193mm |
Max. Distance from Spindle End to Surface of Table: | 330mm |
Max. Distance from Spindle End to Surface of Base: | 560mm |
Swing: | 386mm |
Table Size: | 255*250mm |
Base Size: | 490*360mm |
Column Diameter: | Φ70mm |
Machine Height: | 980mm |
Net / Gross Weight: | 78/91KG |
Packing Size: | 75×40×95cm |
*The spindle box body, column and base are made of high quality castings,which are stable, firm and durable after aging treatment.
*lt has high precision and good rigidity, and is widely used in drilling, drilling.drilling and single-piece batch use in various processing industries.
*The belt drive machine has low noise and high precision drill chuck.
