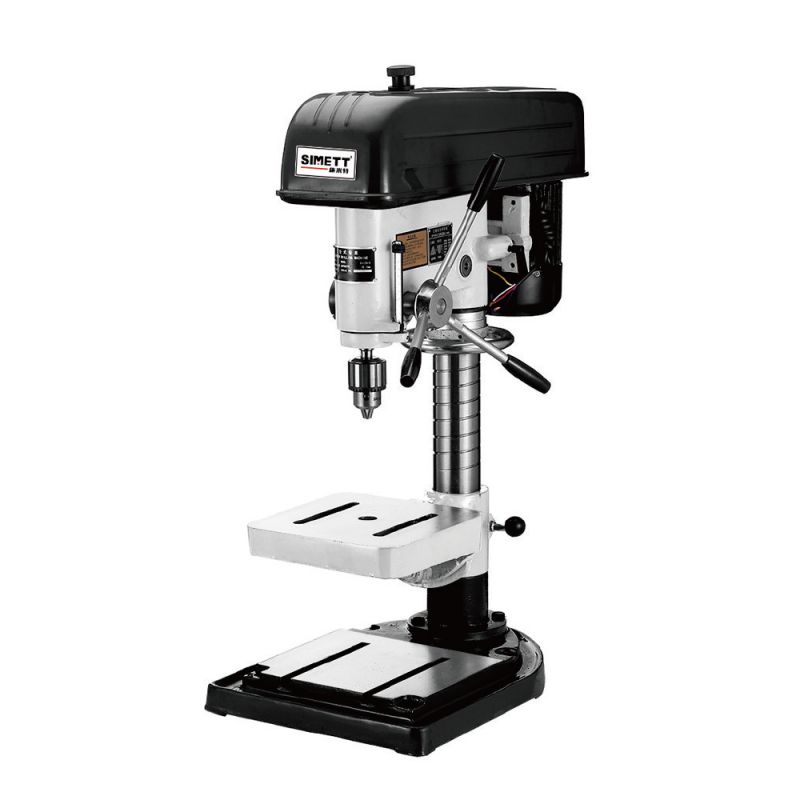

16mm Industrial 15-inch Benchtop Drill Press
SIMETT is a professional 16mm Industrial 15-inch Benchtop Drill Press manufacturers and suppliers in China, you can rest assured to wholesale and customized Benchtop Drill Press from our factory and we will offer you the best after-sale service and timely delivery.
Send Inquiry
Product Description
| Product Specifications | |
| Product Name: | 16mm Industrial 15-inch Benchtop Drill Press |
| Model Number: | Z516A-2 |
| Voltage: | 220-240V/ 120V (380V is also available) |
| Frequency: | 50/ 60HZ |
| Max. Drilling Diameter: | Φ16mm |
| Motor Power: | 550W |
| Chuck Capacity: | 16mm |
| Spindle Travel: | 100mm |
| Spindle Speed Series: | 5 |
| Spindle Speed Range (In 50/ 60HZ): | 365-3150RPM |
| Spindle Taper: | B16/MT2 |
| Max. Distance from Spindle Axis to Surface of Column: | 193mm |
| Max. Distance from Spindle End to Surface of Table: | 330mm |
| Max. Distance from Spindle End to Surface of Base: | 560mm |
| Swing: | 386mm |
| Table Size: | 260*250mm |
| Base Size: | 470*350mm |
| Column Diameter: | Φ70mm |
| Machine Height: | 970mm |
| Net / Gross Weight: | 65/78KG |
| Packing Size: | 75×40×95cm |
Feature
16mm Industrial 15-inch Benchtop Drill Press
*The spindle box body, column and base are made of high quality castings,which are stable, firm and durable after aging treatment.
*lt has high precision and good rigidity, and is widely used in drilling, drilling.drilling and single-piece batch use in various processing industries.
*The belt drive machine has low noise and high precision drill chuck.
Whether used in a small workshop or an industrial setting, the SIMETT 16mm Industrial 15-inch Benchtop Drill Press promises to deliver a combination of versatility, efficiency, and precision, making Industrial 15-inch Drilling Machine Series 16mm an invaluable tool for anyone who requires a high-quality drilling solution.
Depth Control: The 16mm Industrial 15-inch Benchtop Drill Press's 100mm spindle travel enables users to precisely adjust the drilling depth with fine control. This is crucial for tasks that require multiple holes at varying depths, such as when creating mortise and tenon joints in woodworking or when working with layered materials.
Large Diameter Capability: The ability to handle up to 16mm in drill bit diameter makes this 16mm Industrial 15-inch Benchtop Drill Press suitable for a wide array of applications, including making large holes for fasteners or ventilation holes in metal works. It brings the convenience of a heavy-duty machine to common hobbies and light industrial tasks.
Material Adaptability: This 16mm Industrial 15-inch Benchtop Drill Press can accommodate various materials, including wood, metal, and plastics. Its robust construction ensures stability when drilling through tougher materials typically encountered in industrial settings.
Efficient Design: The design of this drill press is focused on efficiency, allowing users to complete tasks quickly and effectively. The stepless speed change and built-in gear box contribute to smooth operation, reducing downtime and increasing productivity.
Safety Mechanisms: Safety features such as an adjustable guard and an emergency stop button provide added protection for the user. These features help prevent accidents and injuries, which is essential for any workshop environment. Cost-Effective Investment: Given its combination of features, the 16mm Industrial 15-inch Benchtop Drill Press represents a cost-effective investment for those seeking a high-performance tool without the expense of a larger or more specialized machine.
Depth Control: The 16mm Industrial 15-inch Benchtop Drill Press's 100mm spindle travel enables users to precisely adjust the drilling depth with fine control. This is crucial for tasks that require multiple holes at varying depths, such as when creating mortise and tenon joints in woodworking or when working with layered materials.
Large Diameter Capability: The ability to handle up to 16mm in drill bit diameter makes this 16mm Industrial 15-inch Benchtop Drill Press suitable for a wide array of applications, including making large holes for fasteners or ventilation holes in metal works. It brings the convenience of a heavy-duty machine to common hobbies and light industrial tasks.
Material Adaptability: This 16mm Industrial 15-inch Benchtop Drill Press can accommodate various materials, including wood, metal, and plastics. Its robust construction ensures stability when drilling through tougher materials typically encountered in industrial settings.
Efficient Design: The design of this drill press is focused on efficiency, allowing users to complete tasks quickly and effectively. The stepless speed change and built-in gear box contribute to smooth operation, reducing downtime and increasing productivity.
Safety Mechanisms: Safety features such as an adjustable guard and an emergency stop button provide added protection for the user. These features help prevent accidents and injuries, which is essential for any workshop environment. Cost-Effective Investment: Given its combination of features, the 16mm Industrial 15-inch Benchtop Drill Press represents a cost-effective investment for those seeking a high-performance tool without the expense of a larger or more specialized machine.
Hot Tags: 16mm Industrial 15-inch Benchtop Drill Press, Manufacturer, Supplier, Factory, China, Wholesale, Buy, Customized, Made in China
