Product Specifications | |

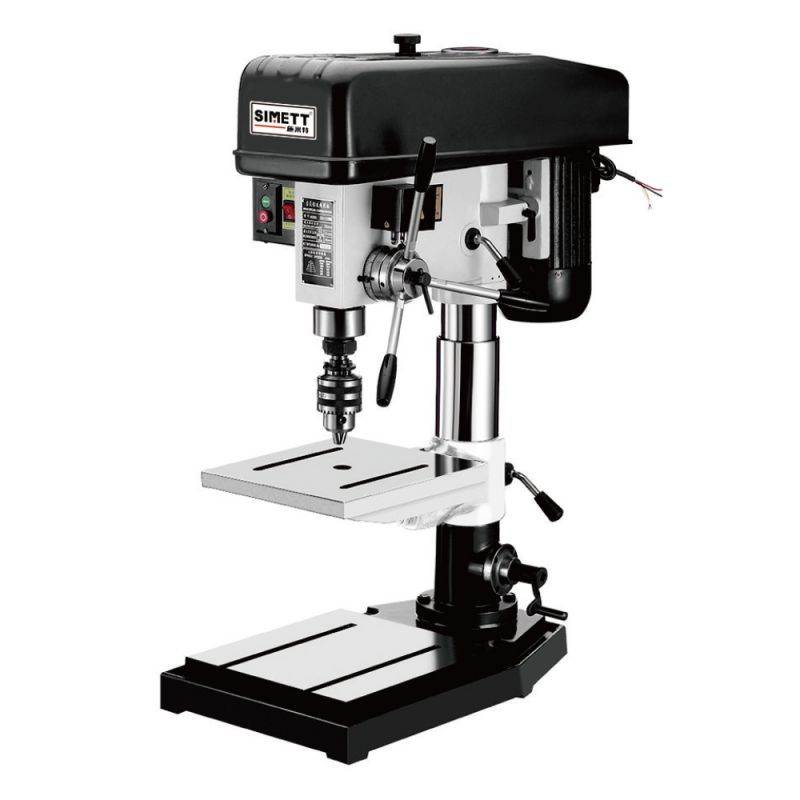

Product Name: | 12.7mm Industrial 15-inch Benchtop Drilling and Tapping Machine M10 |
Model Number: | ZS4112B |
Voltage: | 220-240V/ 120V (380V is also available) |
Frequency: | 50/ 60HZ |
Max. Drilling Diameter: | Φ12.7mm |
Maximum borehole diameter (Steel/Castings)(mm) | M10 |
Motor Power: | 550W |
Chuck Capacity: | 12.7mm |
Spindle Travel: | 100mm |
Spindle Speed Series: | 5 |
Spindle Speed Range (In 50/ 60HZ): | 480~4100 RPM |
Spindle Taper: | B16 |
Max. Distance from Spindle Axis to Surface of Column: | 193mm |
Max. Distance from Spindle End to Surface of Table: | 310mm |
Max. Distance from Spindle End to Surface of Base: | 570mm |
Swing: | 386mm |
Table Size: | 275x270mm |
Base Size: | 550x365mm |
Column Diameter: | Φ70mm |
Machine Height: | 1010mm |
Net / Gross Weight: | 91/103KG |
Packing Size: | 75x40x95cm |
*It can drill holes and tap threads
*Belt drive, smooth operation, low noise;
*Selection of high-quality electrical appliances, stable performance.durable, long service life;
*Conversion of drilling and tapping is convenient, with foot switch and two tapping operation modes.
*Manual table lifting, nose can be lifted by hand
