Product Specifications | |

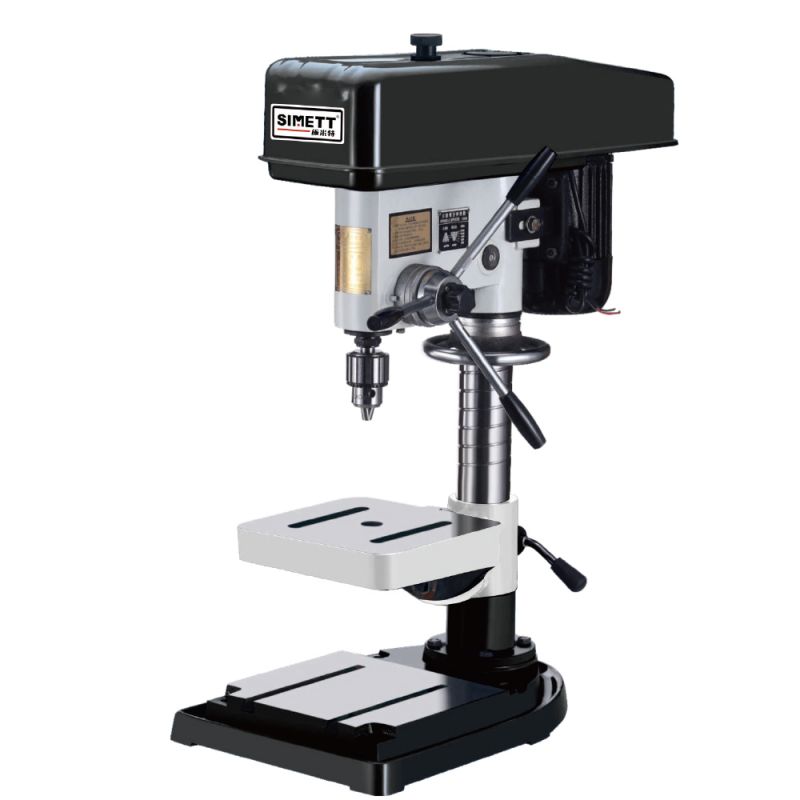

Product Name: | 12.7mm Industrial 15-inch Benchtop Drill Press |
Model Number: | Z4112 |
Voltage: | 220-240V/ 120V (380V is also available) |
Frequency: | 50/ 60HZ |
Max. Drilling Diameter: | Φ12.7(1/2")mm |
Motor Power: | 550W |
Chuck Capacity: | 12.7mm |
Spindle Travel: | 110mm |
Spindle Speed Series: | 5 |
Spindle Speed Range (In 50/ 60HZ): | 480-4100RPM |
Spindle Taper: | B16 |
Max. Distance from Spindle Axis to Surface of Column: | 193mm |
Max. Distance from Spindle End to Surface of Table: | 320mm |
Max. Distance from Spindle End to Surface of Base: | 560mm |
Swing: | 386mm |
Table Size: | 260*250mm |
Base Size: | 490*350mm |
Column Diameter: | Φ70mm |
Machine Height: | 1040mm |
Net / Gross Weight: | 65/78KG |
Packing Size: | 75×40×95cm |
*The spindle box body, column and base are made of high quality castings, which are stable, firm and durable after aging treatment.
*It has high precision and good rigidity, and is widely used in drilling, drilling, drilling and single-piece batch
use in various processing industries.
*The belt drive machine has low noise and high precision drill chuck.
