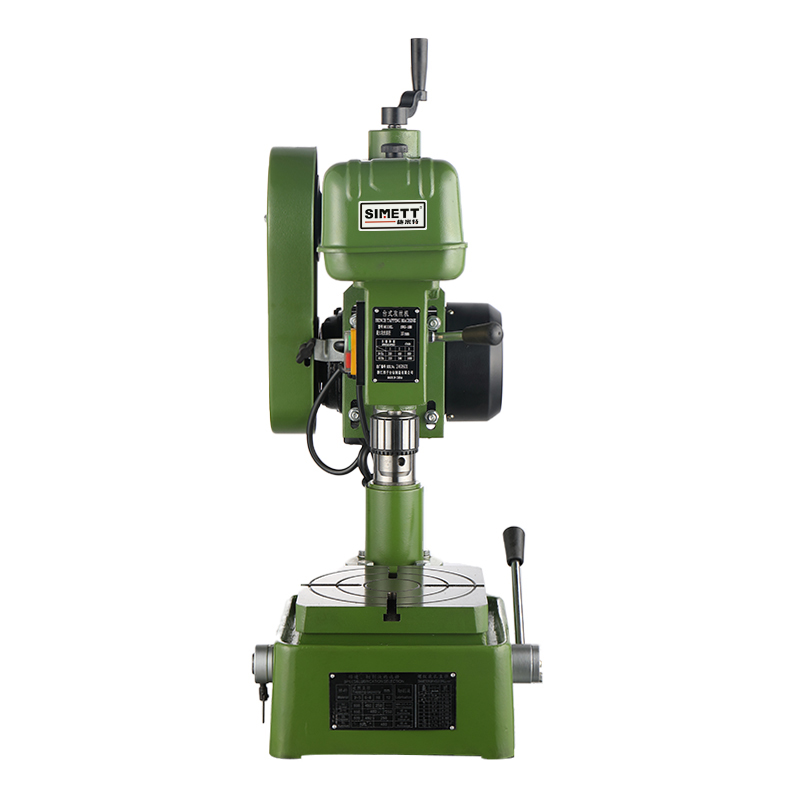

11-inch Industrial Clutch Type Tapping Machine M12

This article focuses on the main features of SIMETT's new SWJ-10B tapping machine.

Model:SWJ-10B

Send Inquiry

Product Description

Product Specifications

Product type	Tapping machine
Maximum tapping diameter (medium carbon steel/castings)(mm)	M12/M10
Column diameter(mm)	50
Maximum stroke of spindle(mm)	50
Distance spindle axis to column surface(mm)	140
Max Distance spindle nose to worktable(mm)	265
Max Distance spindle nose to base(mm)	/
Spindle taper	B16
Spindle speeds range(r/min)	250、480、800
Spindle speeds series	3
Dimension of worktable surface(mm)	230x200
Dimension of base(mm)	365x254
Workbench slot/base slot(mm)	/
Overall height(mm)	767
Motor(W)	550
GW/NW(Kg)	70/60
Packing dimensions(cm)	58x37x70

SIMETT Industrial Grade Benchtop Tapping Machine - Product Details and Technical Parameters

I. SIMETT Industrial Grade Benchtop Tapping Machine Core Parameters

Type of Equipment: Benchtop Tapping Machine (Precision)

Maximum Tapping Capacity: Medium Carbon Steel: M12 Cast Iron: M10

Column Diameter: 50mm (Reinforced Structure)

Spindle Stroke: 50mm (Precision Vertical Feeding)

II. Processing Space Distance from spindle centre to column: 140mm (Optimised Workspace)

Spindle End to Work Table Maximum distance from the spindle end to the worktable: 265mm (adjustable design)

Size of the worktable: 230 × 200mm (cast iron platform)

Size of the base: 365 × 254mm (solid support)

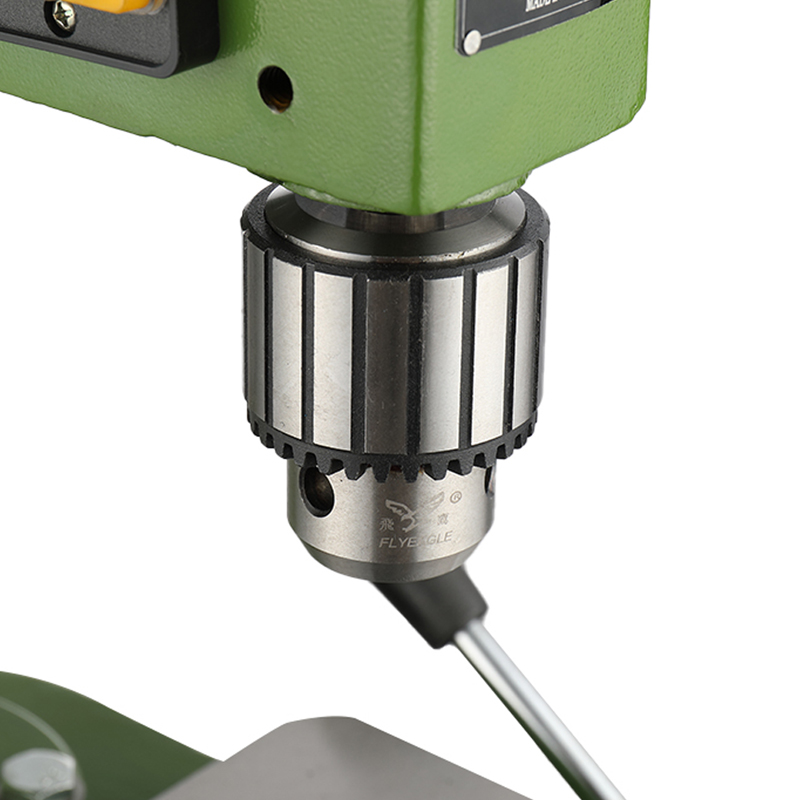

Third, the spindle system Spindle taper: B16 precision taper

Speed range: three speed (250/480/800 rpm) 250rpm: suitable for large-diameter tapping 480rpm: universal machining speed 800rpm: high efficient processing of small holes

Drive motor: 550W high torque motor (continuous work without heat)

IV. Equipment Specifications Overall machine height: 767mm ( Ergonomics )

Net/Gross Weight: 60kg/70kg

Packing size: 58×37×70cm (standard) (export packaging)

V. Product Advantages Precision tapping: B16 spindle taper ensures the threading

Processing precision Triple variable speed: Optimised speed selection for different materials Rigid Structure: 50mm thicker column effectively suppresses vibration

Compact Compact design: small footprint, suitable for flexible workshop layout.
